MIL-STD-1553/ARINC 429 Triggering and Serial Decode 31
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 491
6 If you select the Label Range condition, use the Label Min and Label Max softkeys
to specify the ends of the range.
Again, label values are always displayed in octal.
You can use the Zoom mode for easier navigation of the decoded data.
ARINC 429 Serial Decode
To set up the oscilloscope to capture ARINC 429 signals, see “Setup for
ARINC 429 Signals" on page 488.
To set up ARINC 429 serial decode:

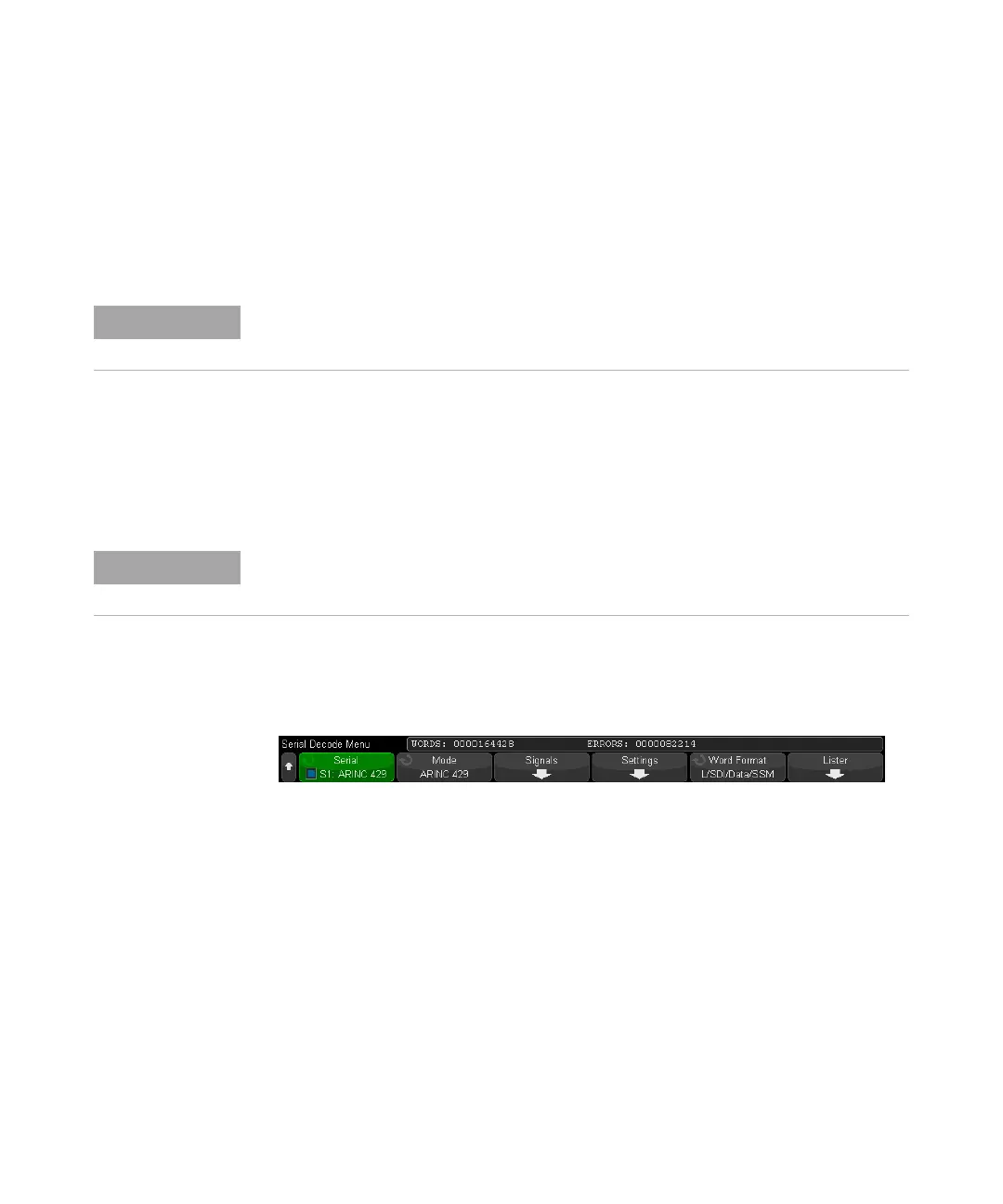

1 Press [Serial] to display the Serial Decode Menu.
2 In the submenu accessed by the Settings softkey, you can use the Base softkey
to select between hexadecimal and binary display of the decoded data.
The base setting is used for data display in both the decode line and in the
Lister.
Label values are always displayed in octal, and SSM and SDI values are always
displayed in binary.
3 Press the Word Format softkey and specify the word decode format:
• Label/SDI/Data/SSM:
• Label - 8 bits.
NOTE
To display ARINC 429 serial decode, see “ARINC 429 Serial Decode" on page 491.
NOTE
For ARINC 429 triggering set up see “ARINC 429 Triggering" on page 489.
