484 Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide
31 MIL-STD-1553/ARINC 429 Triggering and Serial Decode
• Parity Error — triggers if the (odd) parity bit is incorrect for the data in the
word.
• Sync Error — triggers if an invalid Sync pulse is found.
• Manchester Error — triggers if a Manchester encoding error is detected.
MIL-STD-1553 Serial Decode
To set up the oscilloscope to capture MIL-STD-1553 signals, see “Setup for
MIL-STD-1553 Signals" on page 481.
To set up MIL-STD-1553 serial decode:

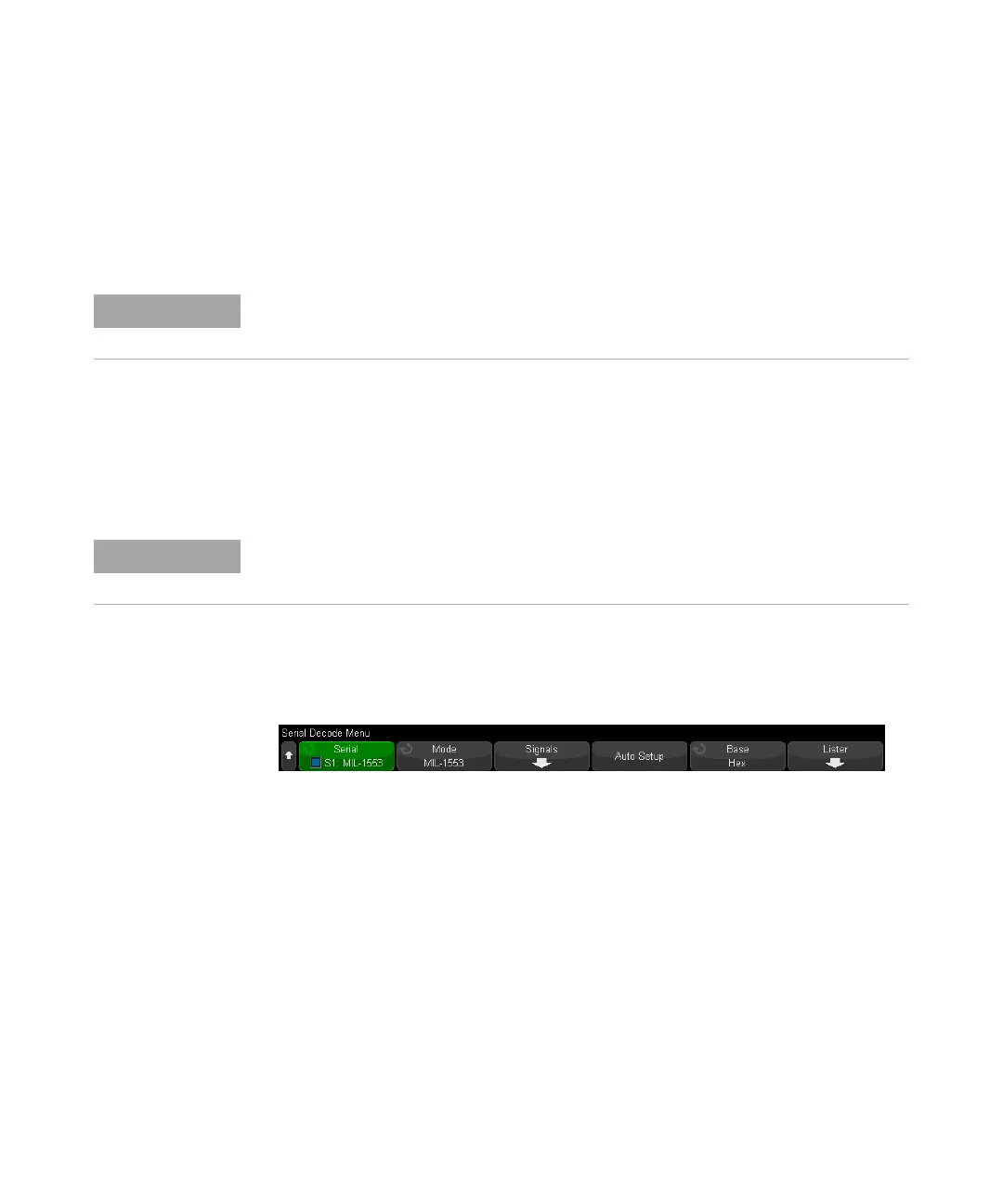

1 Press [Serial] to display the Serial Decode Menu.
2 Use the Base softkey to select between hexadecimal and binary display of the
decoded data.
The base setting is used for the display of the remote terminal address and the
data, in both the decode line and in the Lister.
3 If the decode line does not appear on the display, press the [Serial] key to turn it
on.
4 If the oscilloscope is stopped, press the [Run/Stop] key to acquire and decode
data.
You can use the horizontal Zoom window for easier navigation of the decoded data.
See Also • “Interpreting MIL-STD-1553 Decode" on page 485
For MIL-STD-1553 decode information see “MIL-STD-1553 Serial Decode" on page 484.
For MIL-STD-1553 triggering setup see “MIL-STD-1553 Triggering" on page 483.
