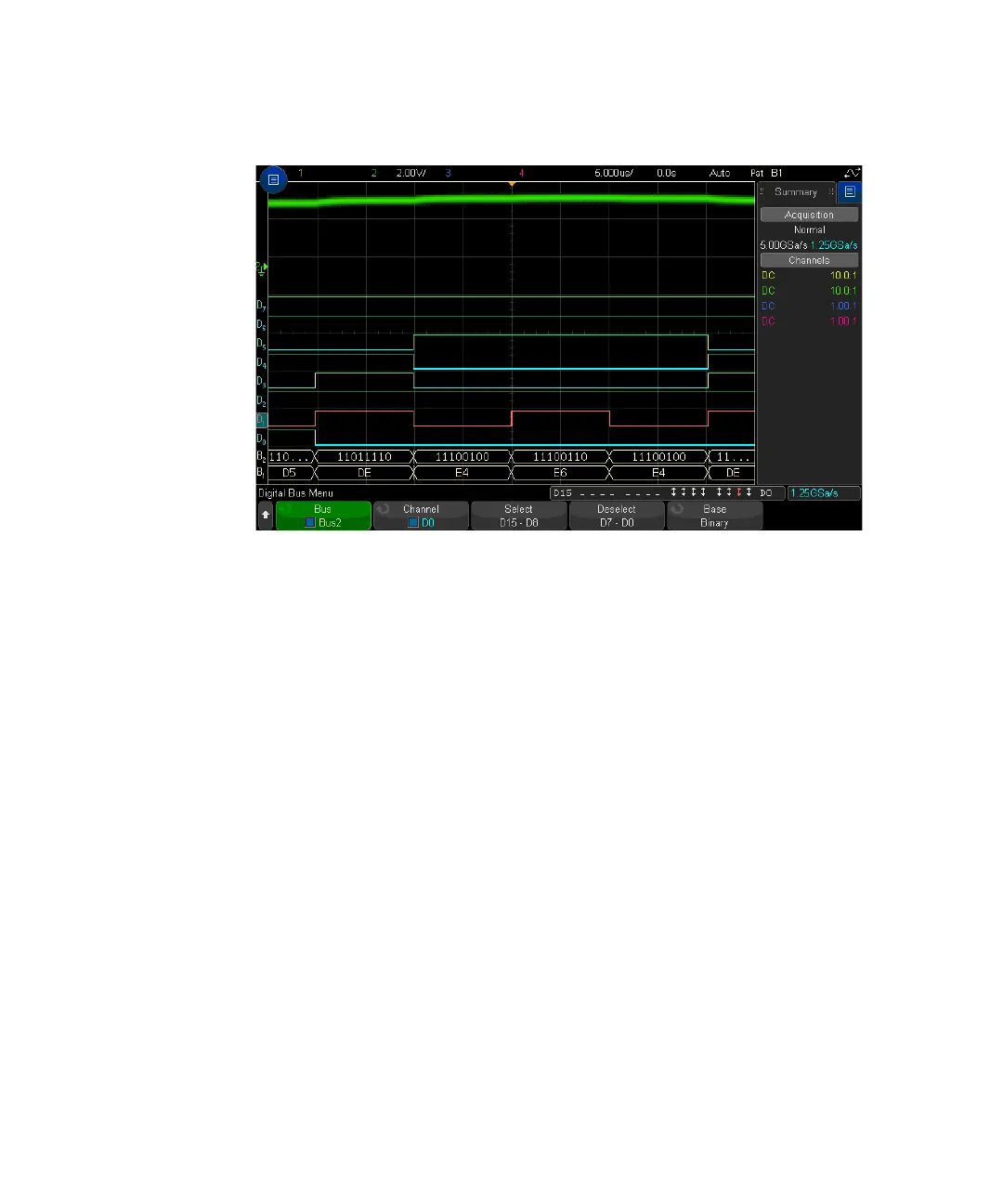

Bus values can be shown in hex or binary.
Using cursors to
read bus values
To read the digital bus value at any point using the cursors:
1 Turn on Cursors (by pressing the [Cursors] key on the front panel)
2 Press the cursor Mode softkey and change the mode to Hex or Binary.
3 Press the Source softkey and select Bus1 or Bus2.
4 Use the Entry knob and the X1 and X2 softkeys to position the cursors where
you want to read the bus values.
