Triggers 11
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 187

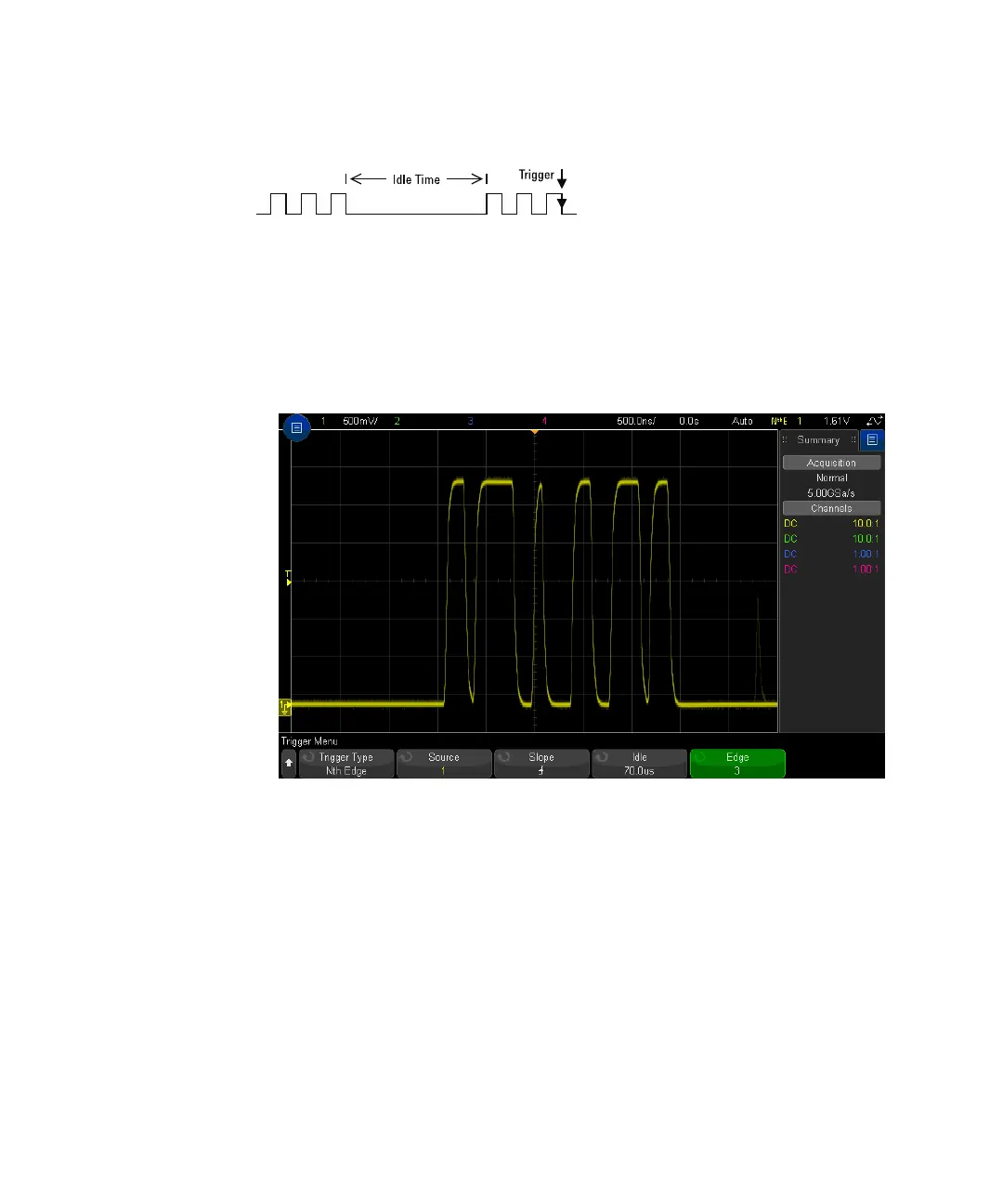

Nth Edge Burst trigger set up consists of selecting the source, the slope of the
edge, the idle time, and the number of the edge:
1 Press the [Trigger] key.
2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob to
select Nth Edge Burst.
3 Press the Source softkey, and turn the Entry knob to select the input channel
source.
4 Press the Slope softkey to specify the slope of the edge.
5 Press the Idle softkey; then, turn the Entry knob to specify the idle time.
6 Press the Edge softkey; then, turn the Entry knob to which edge number to
trigger on.
