Chapter 1: Product Overview
DVR User’s Manual
13
19 Status Indicator Blinks when the external HDD is being accessed.
20 HDD2 Indicator Lights up to indicate the external HDD is installed.
21 Handle
-
Pull the handle to release the HDD compartment.

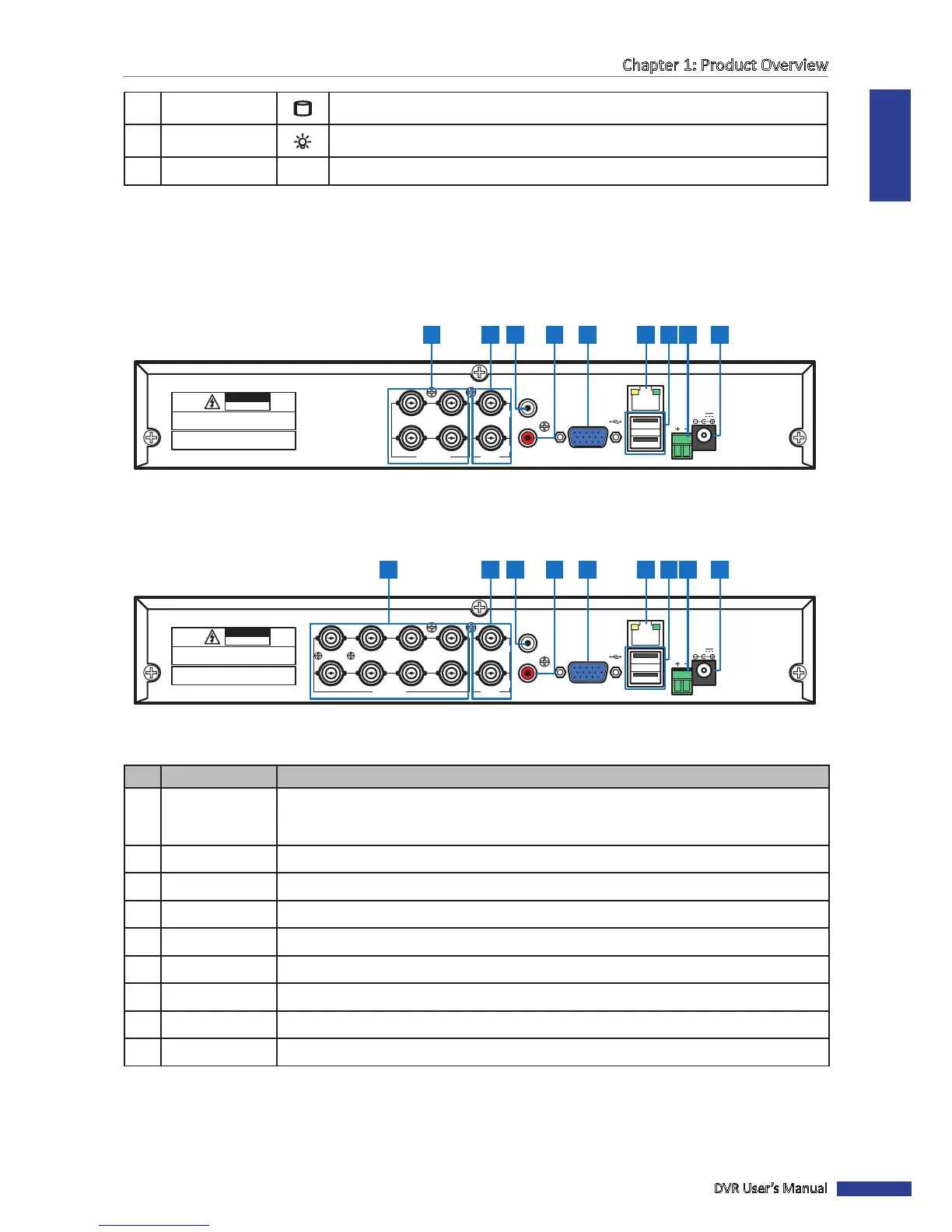

1.3.2 Rear Panel
4-Channel DVR
1
2
VIDEO
OUTPUT
3
4
1
2
VIDEO INPUT AUDIO
OUTPUT
AUDIO
INPUT
RS-485
VGA
12V
LAN
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK.
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED FOR
OUTDOOR USE TO RAIN OR MOISTURE.
5 6 8 971 2 3 4
8-Channel DVR
RS-485
3
4
1
2
1
2
VIDEO
OUTPUT
7
8
5
6
VIDEO INPUT AUDIO
OUTPUT
AUDIO
INPUT
VGA
12V
LAN
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK.
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED FOR
OUTDOOR USE TO RAIN OR MOISTURE.
1 2 5 6 8 973 4
No. Connector Descripon
1 Video input
8-Channel DVR: Connects to a maximum of 8 video input devices (BNC).
4-Channel DVR: Connects to a maximum of 4 video input devices (BNC).
2 Video output Connects to a maximum of 2 video output devices via BNC.
3 Audio input Connects to an audio input device via RCA.
4 Audio output Connects to an audio output device via RCA.
5 VGA output Connects to a VGA monitor.
6 LAN Connects to LAN via RJ-45.
7 USB port Connects to a USB mouse, ash disk, and other external storage drive.
8 RS-485 Connects to a Speed dome camera via RS-485.
9 Power Connects to the power adapter.
