DIAGNOSTICS Checkout Procedures
10DEC05
DG4825-1
Page
130 of 180
3 Check the status of:
• PLATE PRESENT SENSOR S5

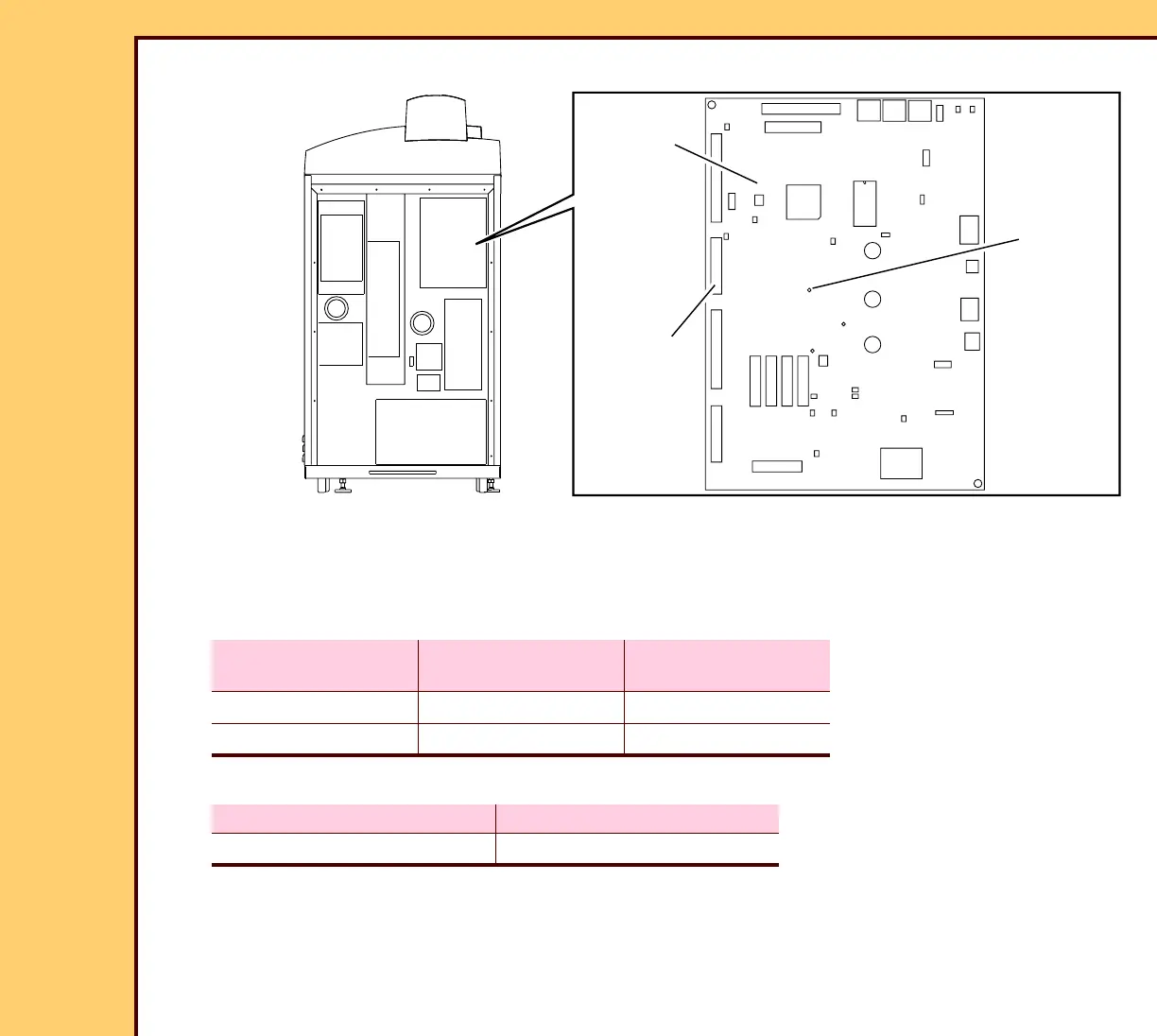

• LED DS29 on the MOTION SYSTEM CONTROL BOARD A1
4 Does the status of the PLATE PRESENT SENSOR S5 and the LED DS29 match?
5 Check that the EMITTER is illuminated. Use an IR PHOSPHOR PROBE TL-2579.
Status
PLATE PRESENT
SENSOR S5
LED DS29
Blocked X Illuminated
Not blocked Not illuminated
Yes No
Advance to Step 6. Continue with Step 5.
H194_0033BC
HARNESS
LED DS29
CONNECTOR
J13 and
MOTION
SYSTEM
CONTROL
BOARD A1
H194_0033BCB
To Next Page
