Kodak M35 - Feed Shelf

Feed Shelf

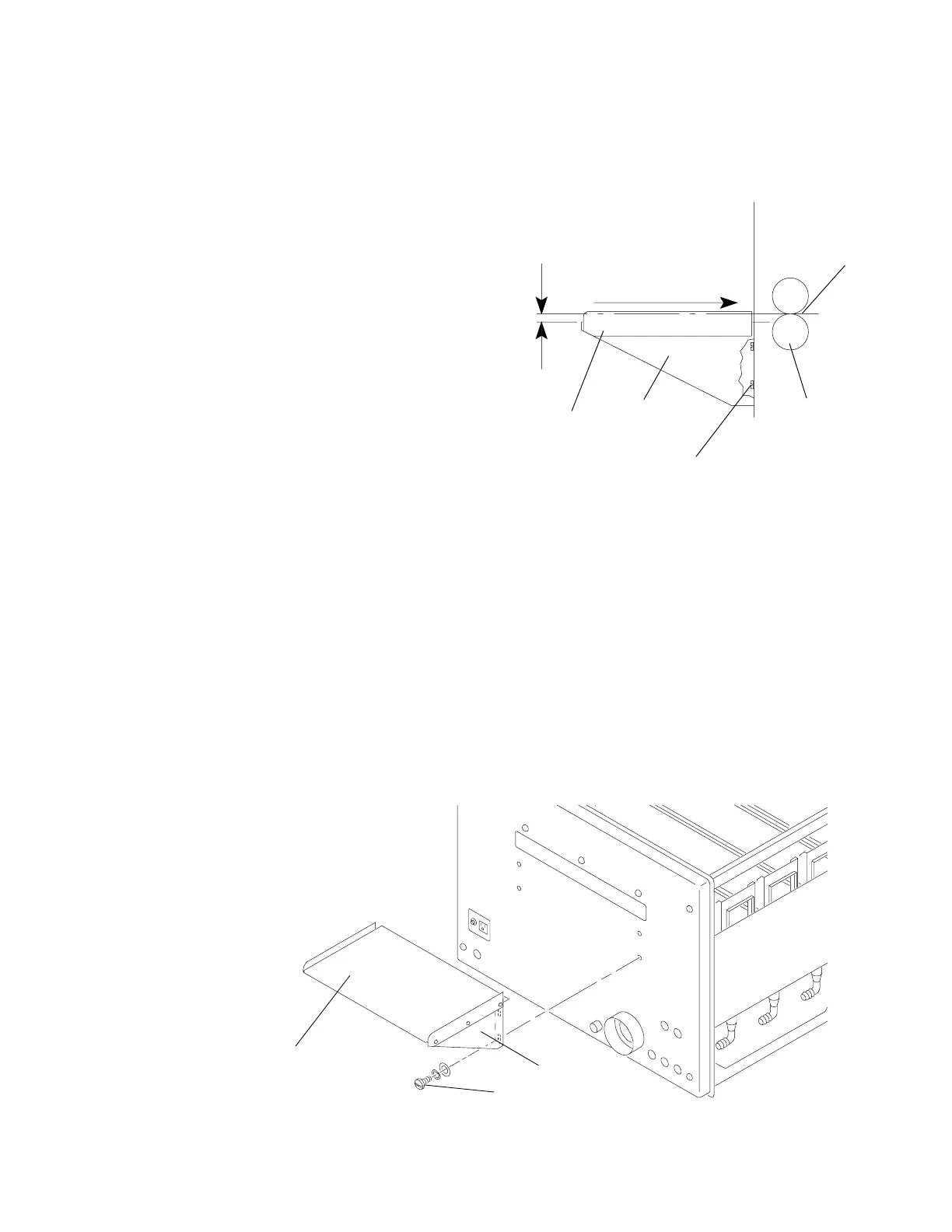

Adjustment of the Feed Shelf
[1] Adjust the height of the FEED SHELF to
approximately 1.5 mm (0.06 or 1/16 in.) below
the NIP of the DETECTOR CROSSOVER
ROLLERS.
(a) Loosen the 4 SCREWS.
(b) Adjust the FEED SHELF for the correct
height by moving the FEED SHELF up
or down.
(c) Insert a sheet of 35 x 43 cm film into
the NIP of the DETECTOR
CROSSOVER ROLLERS.
[2] Use the edges of the film to align the FILM
GUIDE with the DETECTOR CROSSOVER
ROLLERS for squareness.
1.5 mm
(0.06 in.)
H112_0090AA
H112_0090ACA
GUIDE
FILM
SHELF
FEED
SCREW (4)
ROLLERS
CROSSOVER
DETECTOR
NIP
film entry path
[3] Tighten the 4 SCREWS.
Replacement of the Protective Material
[1] Remove the 4 SCREWS and the FEED IMPORTANT
SHELF.
Be sure the FEED SHELF is dry before
[2] Remove all of the existing PROTECTIVE
installing the PROTECTIVE
MATERIAL and adhesive from the FEED
MATERIAL.
SHELF.
[4] Install the new PROTECTIVE MATERIAL.
[3] Clean the FEED SHELF with a damp sponge.
[5] Install the FEED SHELF and adjust if
necessary. See the above procedure.
H112_0113BA
H112_0113BCA
FEED SHELF
SCREW (4)
MATERIAL
PROTECTIVE
981777 2-3
