Kodak M35 - Disassembling the Turnaround Assembly

Disassembling the Turnaround Assembly
[1] Remove the: [3] Remove the:
• EXIT GUIDE SHOE and the BRACKETS • 4 HOLDING SCREWS
• ROLLER above the GUIDE SHOE • CHAIN from the B ROLLER
• 2 SPRINGS and LOCKING PLATE from the • TURNAROUND ASSEMBLY
TURNAROUND ASSEMBLY
• 2 A ROLLERS
[2] From the non-drive side, pull the SHAFT from
the B ROLLER.

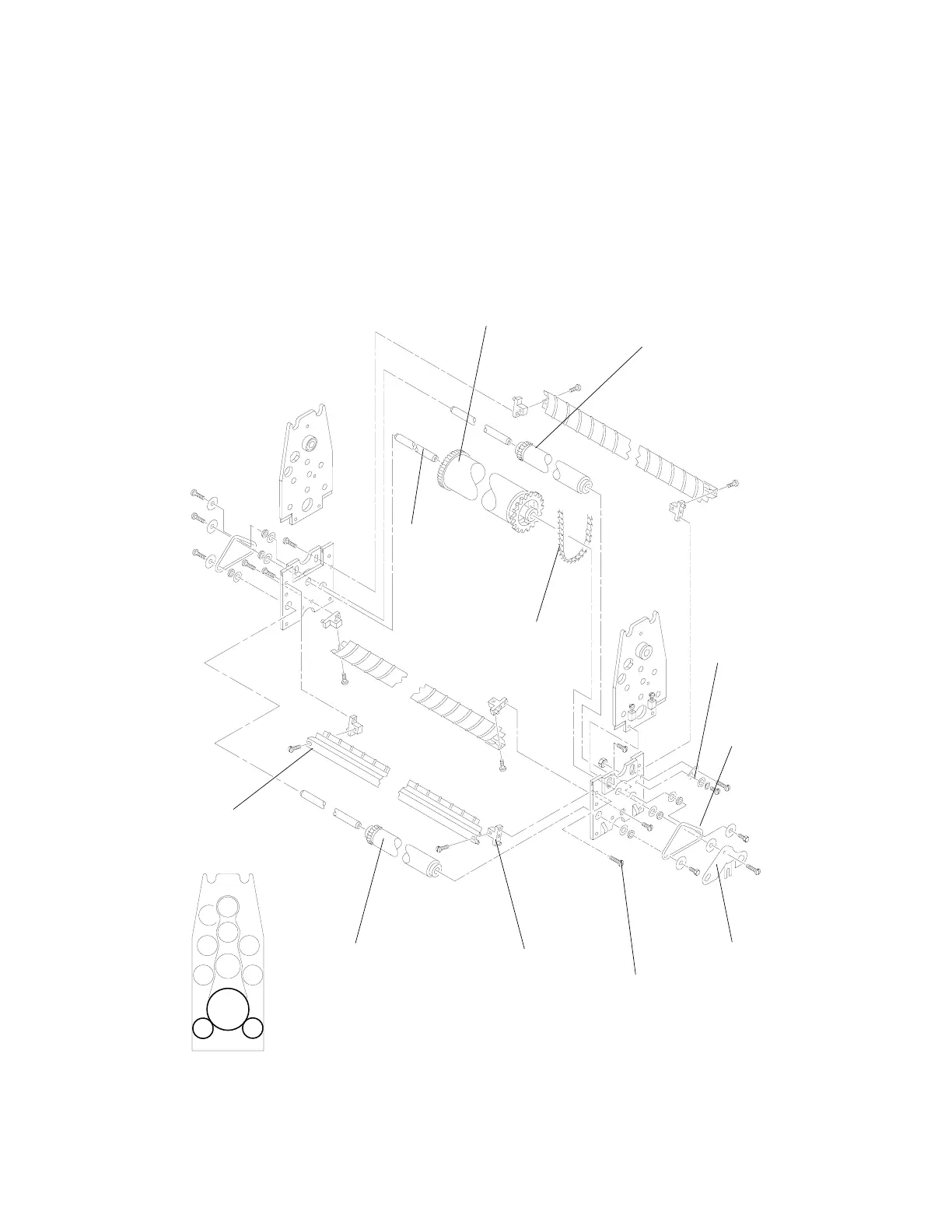

H112_0075EA
B ROLLER
A ROLLER
SHAFT
CHAIN
HOLDING
SCREW (4)
LOCKING
PLATE
SCREW (2)
BRACKET (2)
A ROLLER
EXIT
GUIDE
SHOE
H112_0075ECA
SPRING
(2)
Disassembling the Turnaround Assembly
2-10 981777
