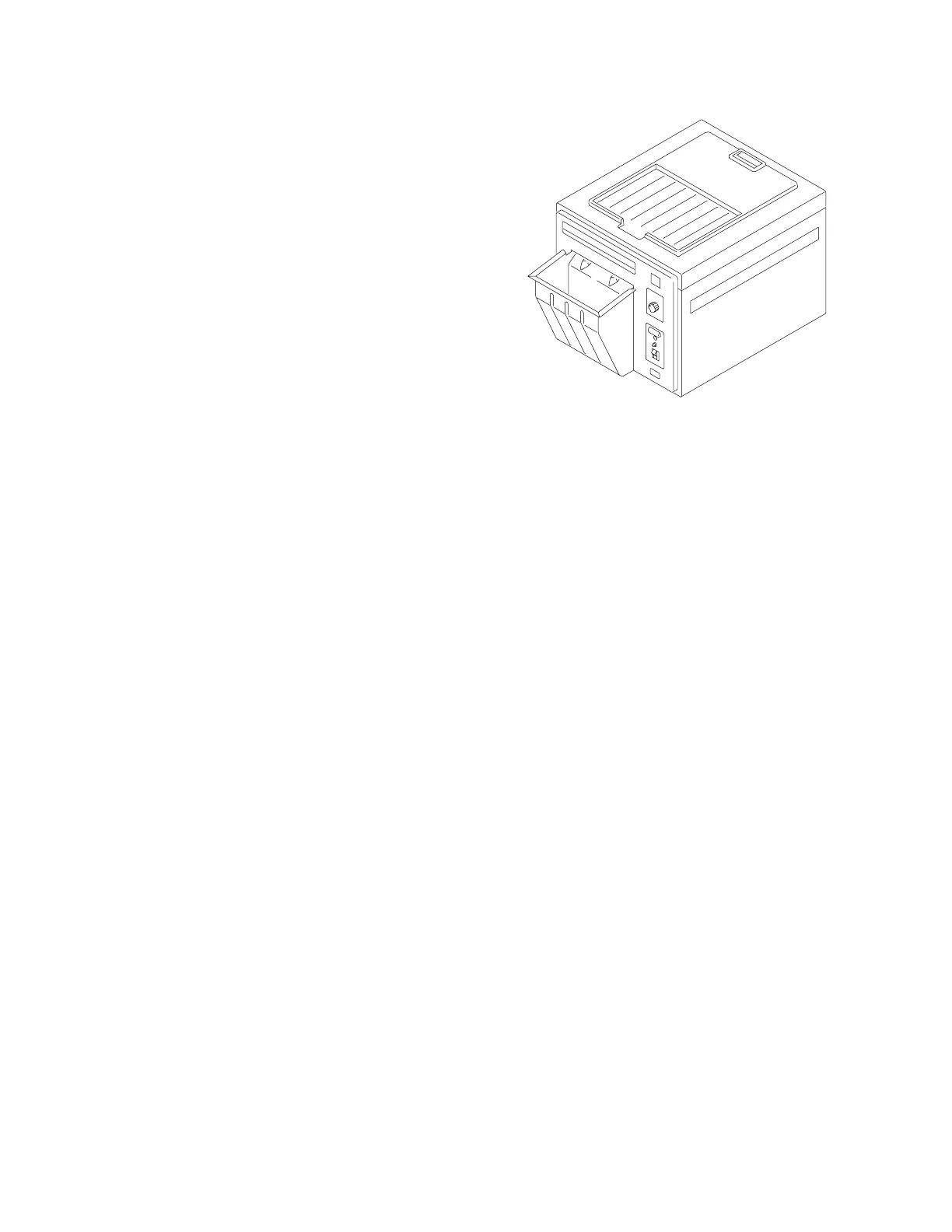

Processor Description
The KODAK
M35 and M35A
X-OMAT Processors
are designed to process medical x-ray film in either
sheets or rolls. This tabletop processor is
self-threading and has a 3-rack processing section
with a dryer.
Special Tools
The following special tools are necessary for some of
the service procedures in this manual.
• TL-3230 Sealant
• TL-2244 Motor Oil, 1-oz Tube
• TL-2324 Motor Oil, 12-oz Tube
• TL-1481 Potentiometer Adjusting Tool
• 761217 Thermometer
Specifications and Data
Film Sizes Wash Water
The water for washing the film comes from the
• 10 - 35 cm (4 - 14 in.) width
customer’s water supply. The FLOW CONTROL
• 10 cm (4 in.) minimum length
VALVE regulates the usage at approximately 1 litre
• 4.6 m (15 ft) maximum length
(⁄
1
4
gal) per minute.
Dryer
Processor Speed
The processor has a roller transport dryer with
approximately slotted AIR TUBES. A thermostat controls the
76 cm (30 in.) per minute
temperature from 46 - 65°C (115 - 150°F).
Control of the Solution Temperature
Power Requirements
The temperature of the developer is adjustable from
The M35 Processor uses 200, 208, 220, or 240
approximately 30 to 46°C (85 to 115°F). The
volts with a single-phase, 2-wire plus earth ground or
temperature of the fixer is not controlled by
220 or 240 volts with a 2-phase, 3-wire plus earth
adjustment.
ground and 50/60 Hz.
The M35A Processor uses 120 volts and a
single-phase, 2-wire plus an earth ground and
50/60 Hz.
1-2 981777
