Dryer Rack
Adjustment for Squareness
[1] Remove the DRYER RACK from the
processor and place it on a smooth, flat
surface.
[2] Loosen the 2 SCREWS and 2 NUTS from the
2 TIE RODS.
[3] Check that the SIDE PLATES touch the flat
surface evenly.
[4] Tighten the 2 SCREWS and 2 NUTS.
smooth, flat surface
H112_0104AA
H112_0064BA
TIE ROD
TIE ROD
SCREW (2)
NUT (2)
SIDE PLATE (2)
H112_0064BCA

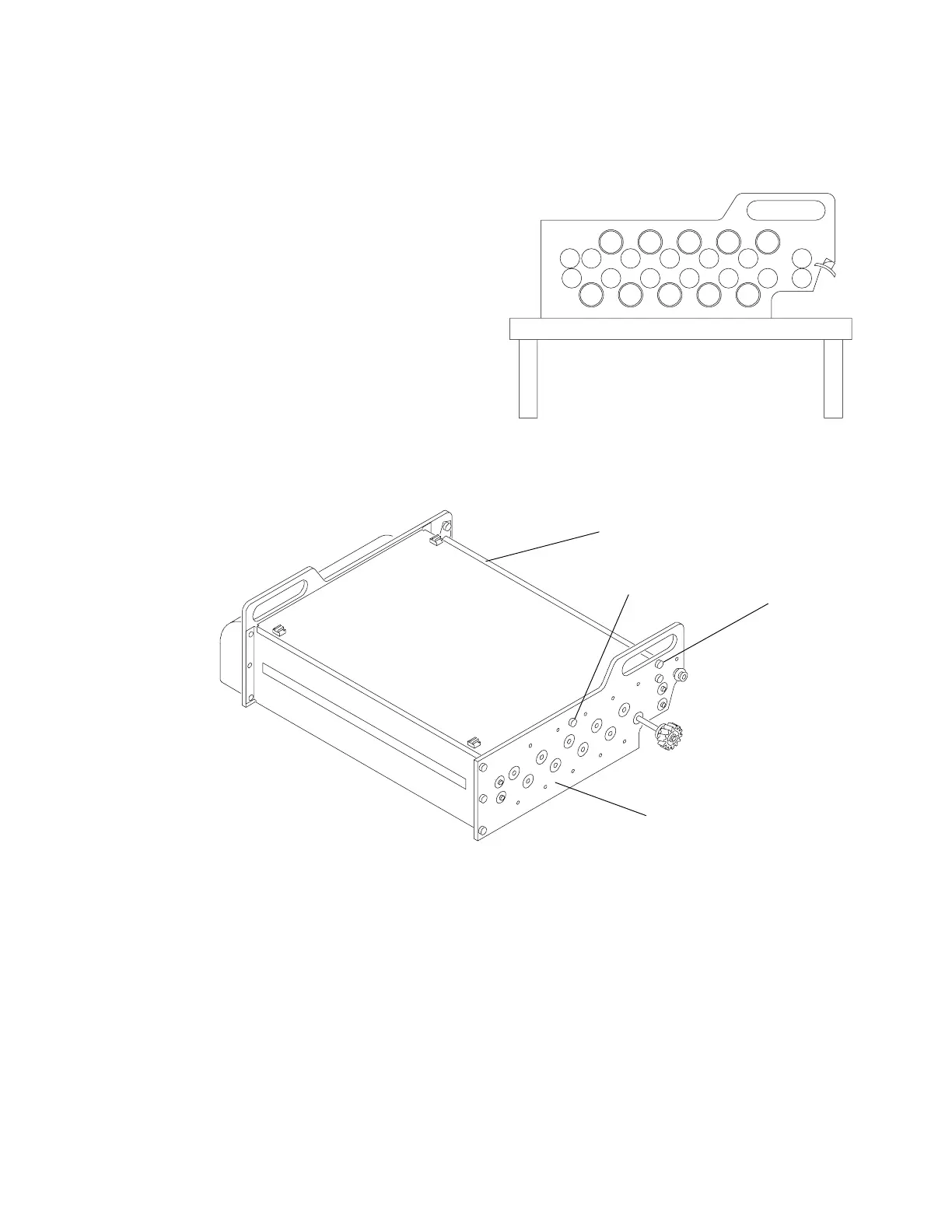

Adjusting the Dryer Rack for Squareness
981777 2-15
