Kodak M35 - Replacement of the Detector Switches

[4] Connect the new SWITCH CABLE.
Replacement of the Detector Switches
[5] Install the:
• new DETECTOR SWITCH
• 2 WASHERS
Dangerous voltage.
• 2 LOCK WASHERS
• 2 SCREWS
[1] Disconnect the main power.
• new WIRE TIES
[2] Remove the:
[6] Connect the main power.
• 2 SCREWS
[7] Do the adjustment procedure if necessary.
• 2 LOCK WASHERS
See page 2-4.
• 2 WASHERS
• WIRE TIES, not shown
[3] Disconnect the SWITCH CABLE from the
ELECTRICAL BOX.

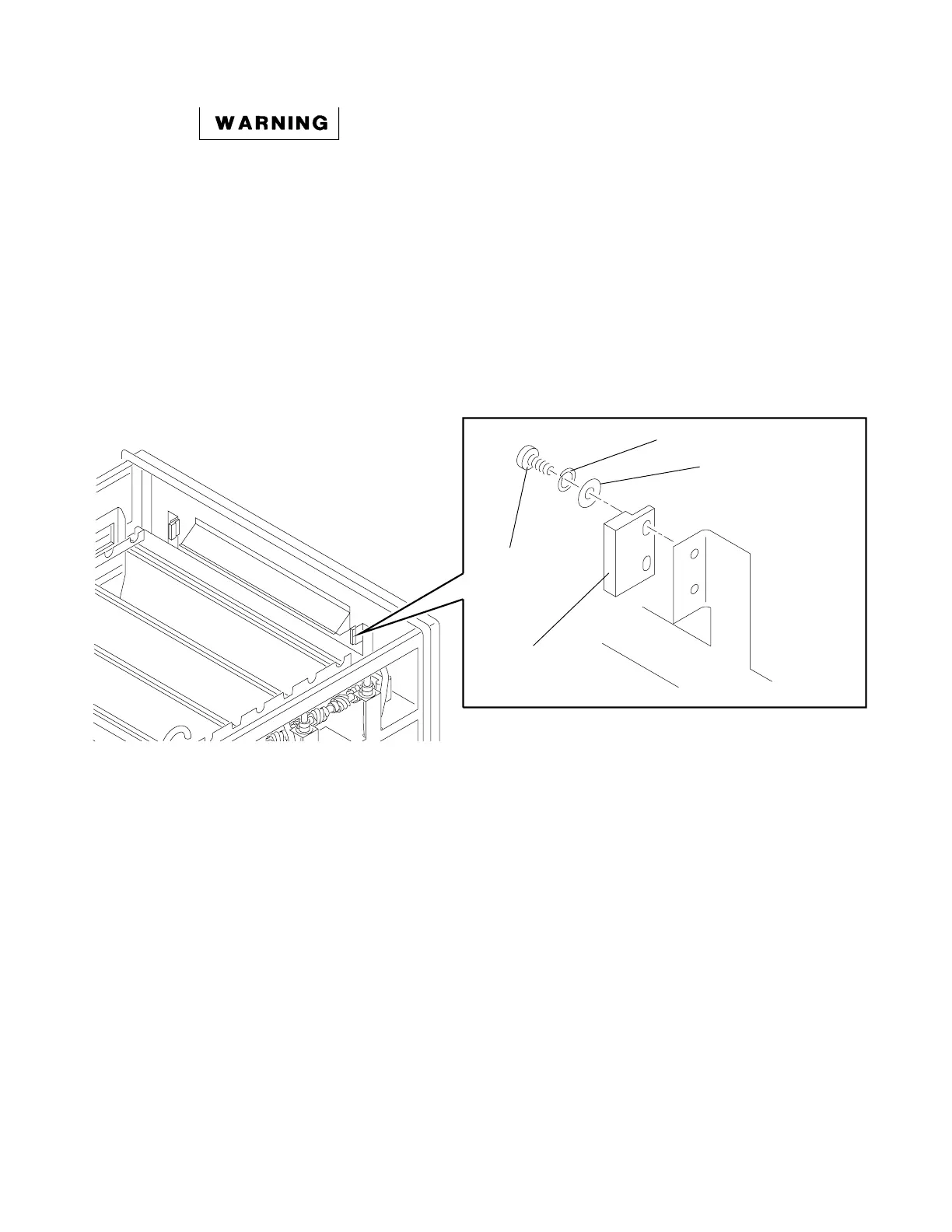

H112_0067BA
SCREW (2)
DETECTOR
SWITCH
WASHER (2)
LOCK WASHER (2)
H112_0067BCA
Replacement of the Detector Switch
981777 2-5
