Kodak M35 - Roller Transport; Detector Switches; Detector Crossover Assembly

Roller Transport
Detector Switches
Check that the DETECTOR SWITCHES operate the REPLENISHMENT PUMP. See page 2-4 for adjustment of
the DETECTOR SWITCHES, if necessary.
Detector Crossover Assembly
[1] Clean the DETECTOR ROLLERS with a damp, lint-free cloth or natural sponge.
[2] Check:
• That the ROCKER ARM moves freely. If not, remove the ROCKER ARM and BUSHING and clean
with warm water.
• For corrosion of the ROCKER ARM. Install a new one if necessary.
• For squareness of the DETECTOR CROSSOVER ASSEMBLY. See page 2-6.
• That the DETECTOR CROSSOVER ASSEMBLY is seated correctly.

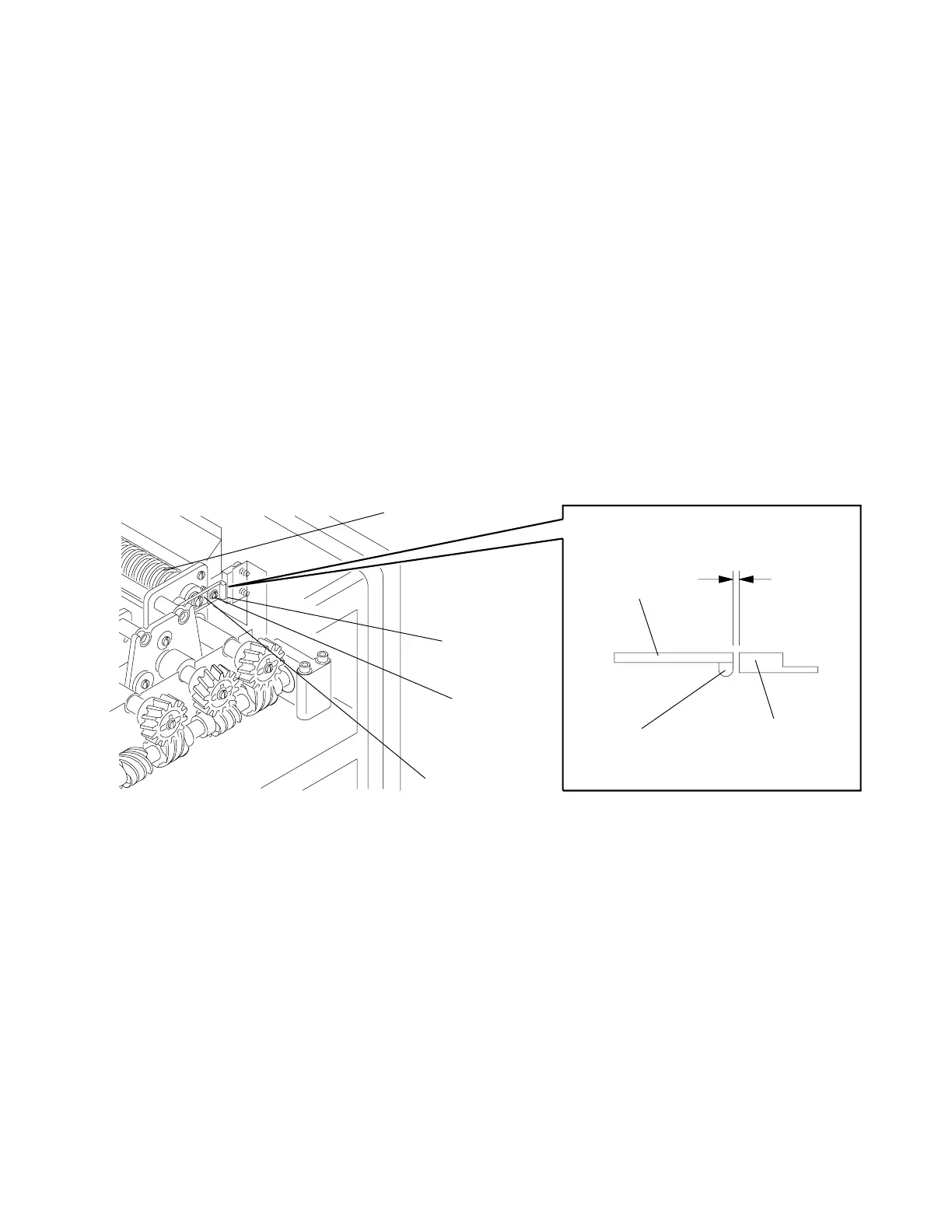

1.6 mm
(0.06 in.)
H112_0112BA
H112_0112BCA
SWITCH (2)
DETECTOR
MAGNET (2)
SCREW
SWITCH (2)
DETECTOR
ROLLER
DETECTOR
ROCKER ARM
ROCKER
ARM
Checking the Adjustment of the Detector Switches
981777 3-3
