Kodak M35 - Replacement of the B Roller; Checking the Guide Shoes

Replacement of the B Roller
[1] See the illustration on page 2-10. Remove
the:
• TURNAROUND ASSEMBLY from the RACK
• 2 SPRINGS
• LOCKING PLATE
• 2 A ROLLER ASSEMBLIES
• 2 SCREWS
• 2 BRACKETS
• EXIT GUIDE SHOE
• SHAFT, THRUST WASHERS, and the
BEARING from the B ROLLER
[2] See page 2-10. Install the:
• new B ROLLER, THRUST WASHERS, and
BEARING onto the SHAFT
• 2 SCREWS
• 2 BRACKETS
• EXIT GUIDE SHOE
• 2 A ROLLER ASSEMBLIES
• LOCKING PLATE
• 2 SPRINGS
• TURNAROUND ASSEMBLY onto the RACK
[3] Check that the DRIVE CHAIN has the correct
tension. See page 2-8 if adjustment of the
DRIVE CHAIN is necessary.
Checking the Guide Shoes
[1] Check that the LONG TIPS are in the
direction of film travel.
H048_0155CA
H048_0155CCB

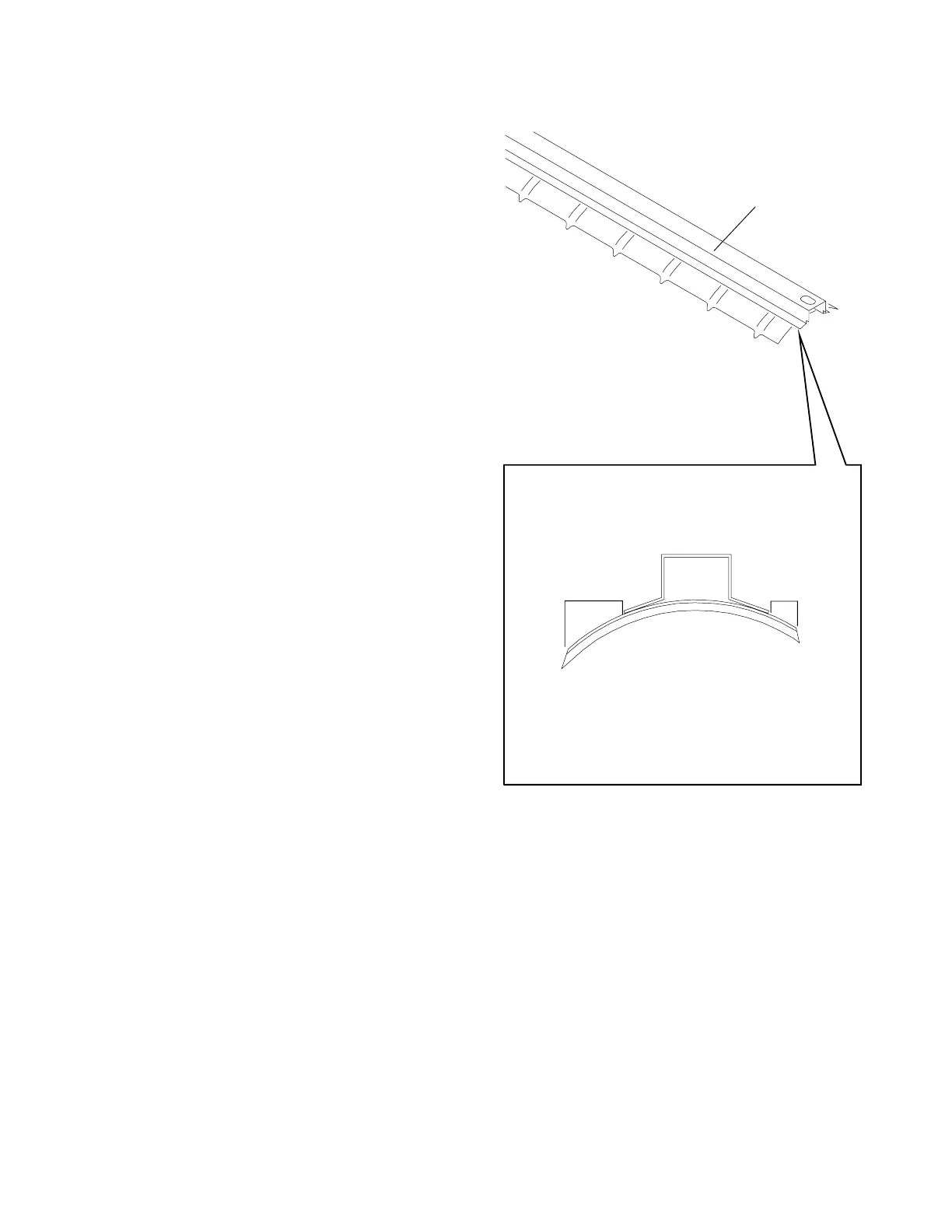

GUIDE
SHOE
LONG
TIP
SHORT
TIP
