COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-M25
9Y3200007CRM0020US0

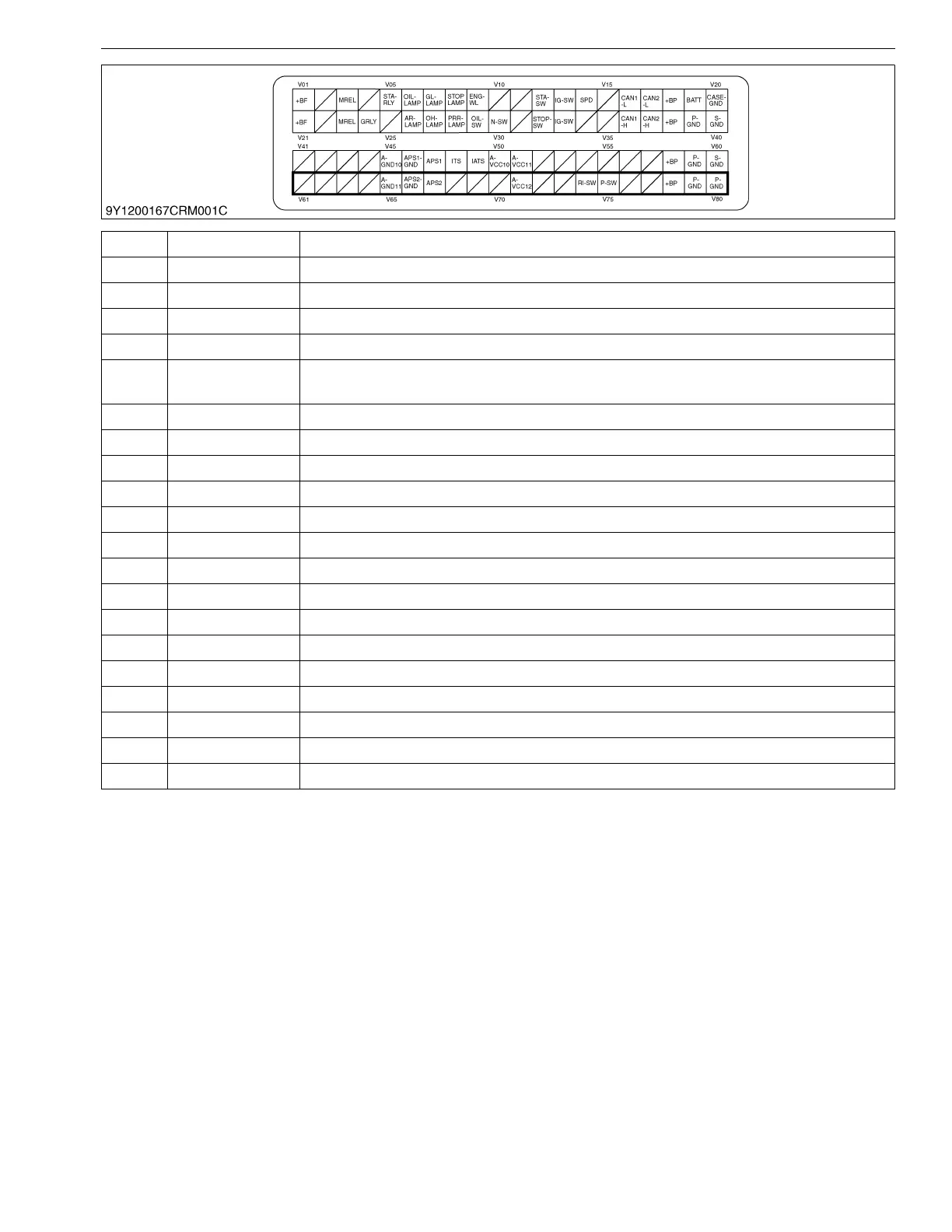

No. Terminal Name Signal Name
V61 – –
V62 – –
V63 – –
V64 – –
V65 A-GND11
DIFFERENTIAL PRESSURE SENSOR GROUND /
INTAKE THROTTLE POSITION SENSOR GROUND
V66 APS2-GND ACCELERATOR POSITION SENSOR2 (GROUND)
V67 APS2 ACCELERATOR POSITION SENSOR2
V68 – –
V69 – –
V70 – –
V71 A-VCC12 DIFFERENTIAL PRESSURE SENSOR (POWER SUPPLY)
V72 – –
V73 – –
V74 R1-SW REGENERATION INHIBIT SWITCH
V75 P-SW PARKING SWITCH
V76 – –
V77 – –
V78 +BP BATTERY+ (MAIN RELAY)
V79 P-GND POWER GROUND
V80 P-GND POWER GROUND
