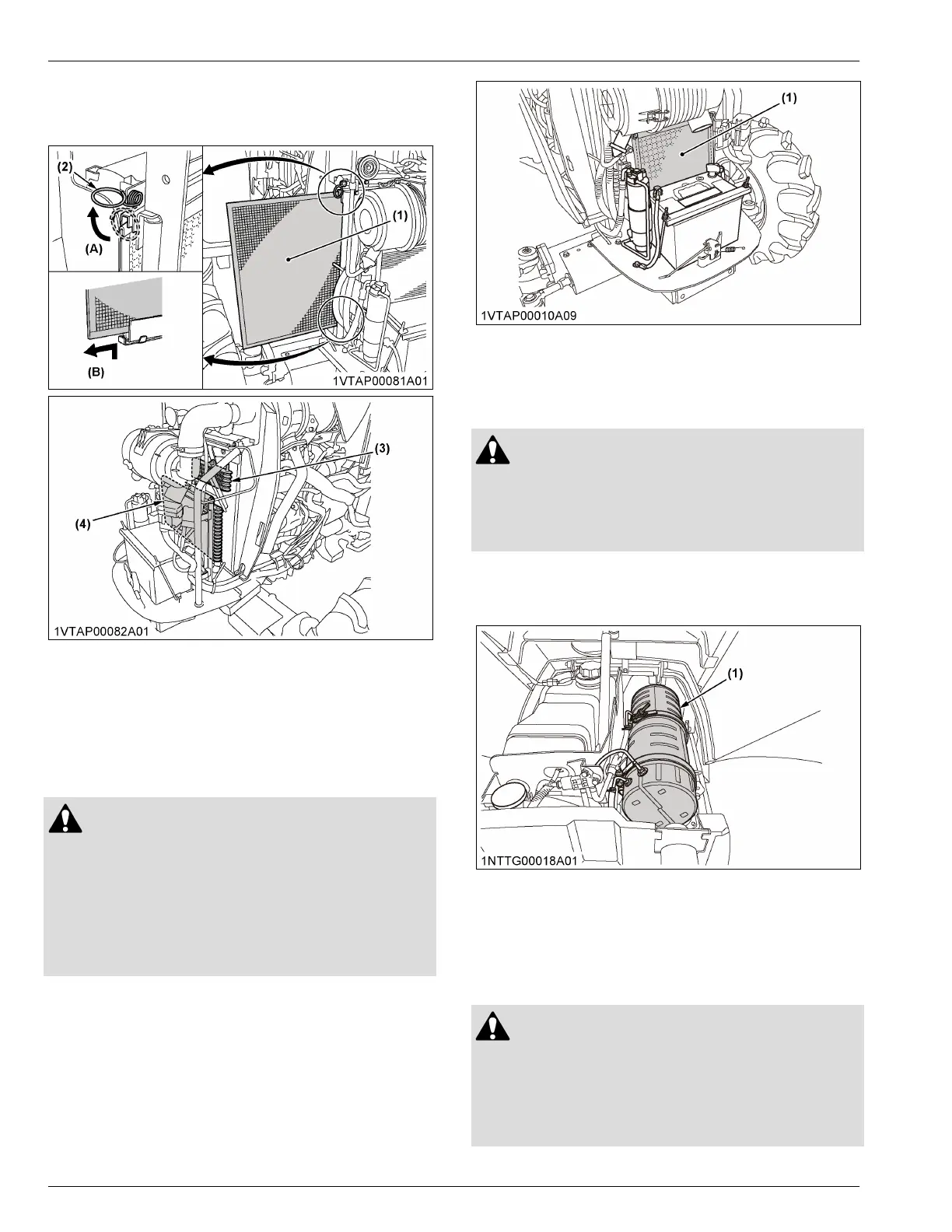

2. Detach the side screen with the fixed spring being
held up and remove all foreign materials, and clean
the front of radiator completely.
(1) Radiator screen
(2) Fixed spring
(3) Fuel cooler
(4) Oil cooler [HST type]
(A) Hold up
(B) Detach
10. Cleaning the air conditioner
condenser screen [CAB type]
WARNING
To avoid personal injury or death:
• Be sure to stop the engine before removing the
air-conditioner-condenser-screen.
• The condenser and receiver become hot while
the air conditioner is running. Before checking
or cleaning the condenser and receiver, wait
until they cool down.
IMPORTANT :
• Clean the grill and the air-conditioner-
condenser-screen from debris to prevent
engine from overheating and to allow good air
intake for air cleaner.
1. Detach the air-conditioner-condenser-screen and
remove all foreign materials.
(1) Air conditioner condenser
screen
11. Checking the DPF muffler
WARNING
To avoid personal injury or death:
• Before checking or cleaning the DPF muffler,
stop the engine and wait until it is cooled down
enough.
1. Check the DPF muffler and its surroundings for
build-up of anything flammable.
Otherwise a fire may result.
(1) DPF muffler
12. Checking the brake pedals and
the clutch pedal [Manual
transmission type]
WARNING
To avoid personal injury or death:
• Make sure to adjust both brake pedals equally
when being locked together. Incorrect or
unequal adjustments of brake pedals can cause
the tractor to swerve or roll-over.
PERIODIC SERVICE DAILY CHECK
To Next Page
