FOOT CONTROLS AND HAND CONTROLS

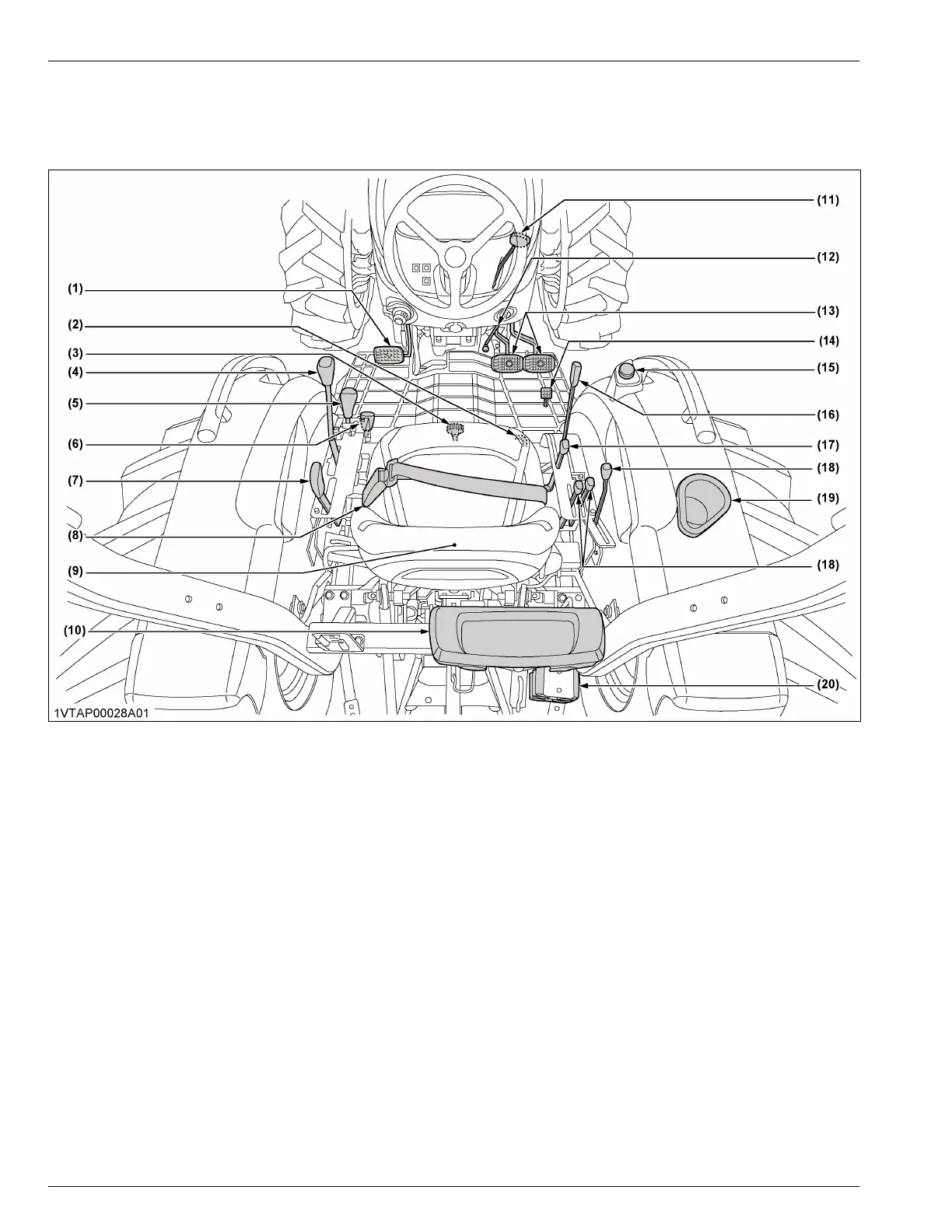

1. Foot controls and hand controls [Manual transmission type]
[ROPS type]
(1) Clutch pedal................................................................................... 45
(2) Differential lock pedal .................................................................... 80
(3) 3-point hitch lowering speed knob ................................................. 93
(4) Synchro-shuttle shift lever ............................................................. 46
(5) Main gear shift lever ...................................................................... 45
(6) Front wheel drive lever [4WD type]................................................ 44
(7) Range gear shift lever.................................................................... 46
(8) Seat belt......................................................................................... 42
(9) Operator's seat .............................................................................. 42
(10) Tool box
(11) Hand throttle lever ......................................................................... 45
(12) Parking brake lever........................................................................ 43
(13) Brake pedal.................................................................................... 42
(14) Foot throttle.................................................................................... 46
(15) PTO clutch control switch .............................................................. 83
(16) Position control lever ..................................................................... 91
(17) Draft control lever (if equipped) ..................................................... 91
(18) Remote control valve lever (if equipped) ....................................... 94
(19) Cup holder
(20) Remote control valve coupler (if equipped) ................................... 95
INSTRUMENT PANEL AND CONTROLS
FOOT CONTROLS AND HAND CONTROLS
