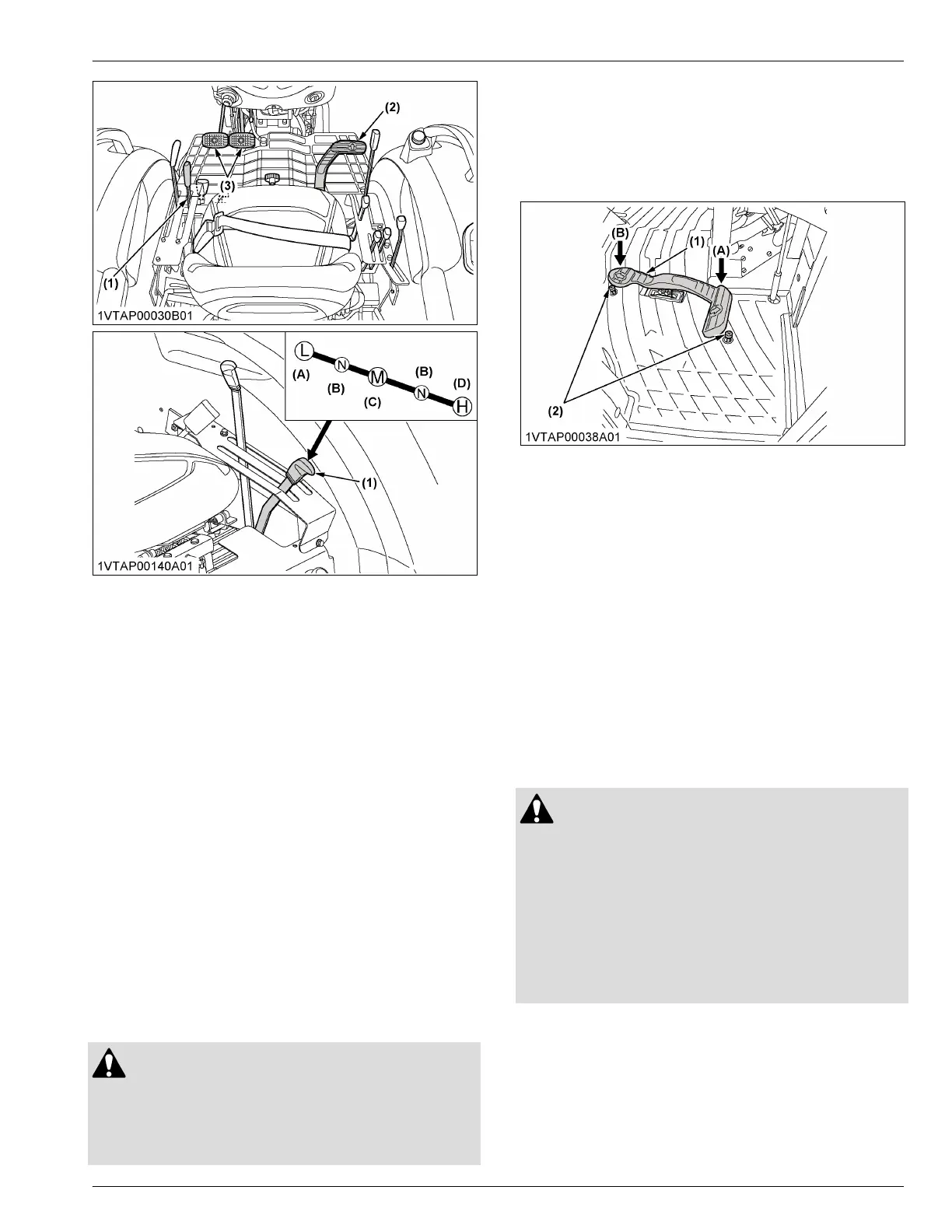

(1) Range gear shift lever (L-M-
H)
(2) Speed control pedal
(3) Brake pedal
(A) Low
(B) Neutral position
(C) Middle
(D) High
IMPORTANT :
To avoid damage of transmission and shift linkage
when shifting:
• Completely stop the tractor using the brake
pedals.
• Do not force the range-gear-shift-lever.
• If it is difficult to shift the range-gear-shift-lever
into [L], [M], or [H] from the neutral position:
On slopes, be sure to set the parking brake and
start the following procedure.
1. Slightly depress the speed-control-pedal to
rotate the gears inside of transmission.
2. Release the speed-control-pedal to the
neutral position.
3. Wait for a moment and then shift the range-
gear-shift-lever.
15. Speed control pedal [HST type
only]
WARNING
To avoid personal injury or death:
• Do not operate the tractor if it moves on level
ground with foot off of the speed-control-pedal.
• Consult your local KUBOTA Dealer.
• Forward pedal
Depress the speed-control-pedal with the toe of
your right foot to move forward.
• Reverse pedal
Depress the speed-control-pedal with the heel of
your right foot to move backward.
(1) Speed control pedal
(2) Stopper bolt
(A) Forward
(B) Reverse
IMPORTANT :
• To prevent serious damage to the HST, do not
adjust the stopper bolts.
NOTE :
• When you stand up from the operator's seat
with the speed-control-pedal stepped on or the
cruise-control-lever engaged on, the engine will
stop regardless of whether the tractor is moving
or not. The engine stop is because that the
tractor is equipped with the operator-presence-
control system (OPC).
16. Cruise control lever [HST type
only]
WARNING
To avoid personal injury or death:
• Pull the cruise-control-lever completely to the
rear before starting the engine.
• Do not use the cruise control when driving on
the road.
• Be sure to connect both the left and the right
brakes to release the cruise control. The speed-
cruise-control will not be released with single
brake activation.
Cruise control is designed for operating efficiency of the
tractor and operator comfort. Cruise-control-device will
provide a constant forward operating speed by
mechanically holding the cruise-control-lever at the
selected position.
FOOT CONTROLS AND HAND CONTROLS
INSTRUMENT PANEL AND CONTROLS
