3. Align the set-bolt-holes and insert both set bolts.
Slightly tighten the set bolts and secure them with
the hair-pin-cotters.
CAUTION
To avoid personal injury:
• Make sure that both set bolts are properly
installed as soon as the ROPS is in the
upright position and secured with the hair-
pin-cotters.

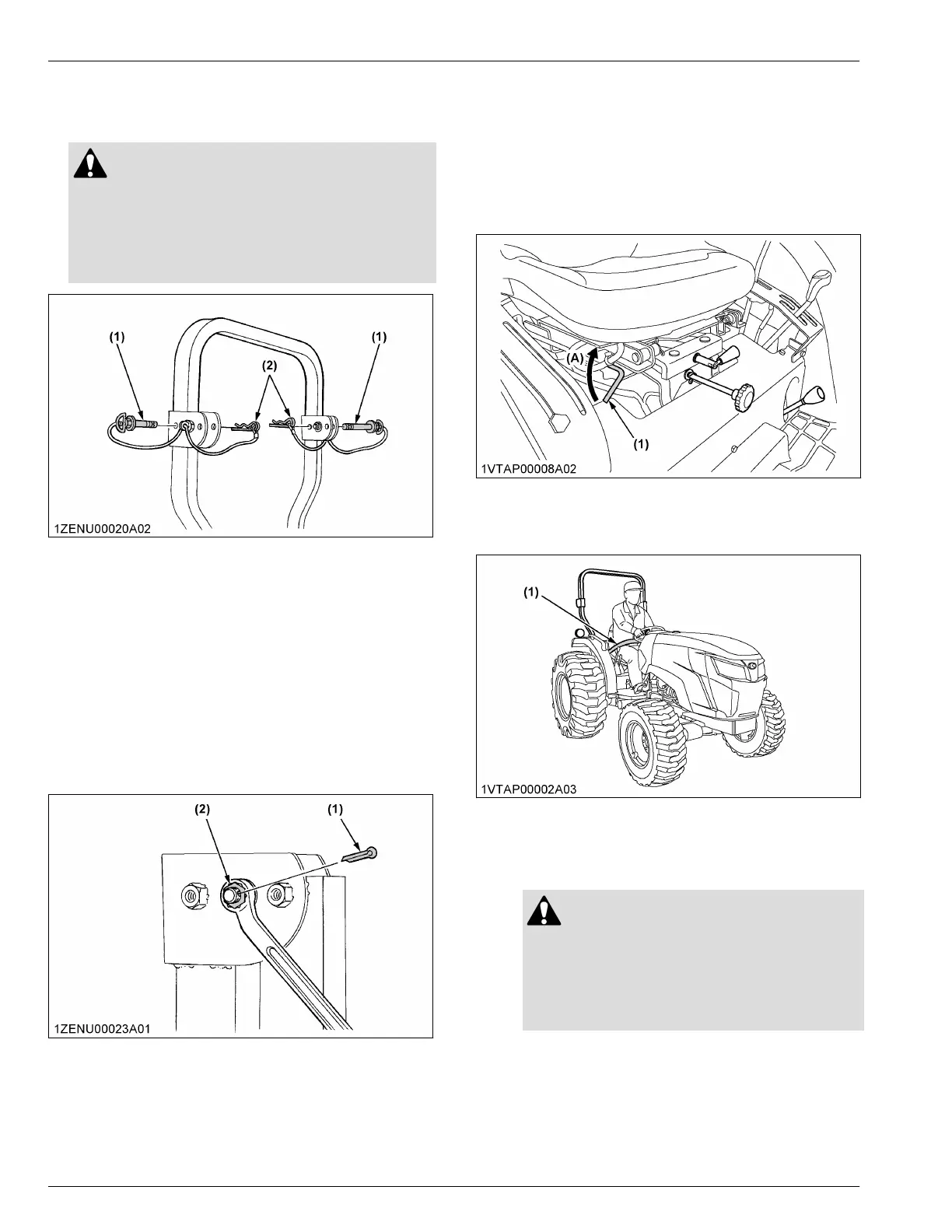

(1) Set bolt (2) Hair pin cotter
3. Adjusting the foldable ROPS (if
equipped)
1. Adjust free fall of the ROPS upper frame regularly.
2. If you feel less friction in folding the ROPS, follow
the following procedure.
a. Remove the cotter pin.
b. Tighten the nut until you feel the right friction in
the movement.
c. Replace the cotter pin.
(1) Cotter pin
(2) Nut
STARTING THE TRACTOR
[MANUAL TRANSMISSION
TYPE]
1. Adjust the operator's position.
• Adjust the operator's seat.
(See Operator's seat on page 42)
(1) Travel adjust lever (A) Pull
• Adjust the seat belt.
(See Seat belt on page 42)
(1) Seat belt
• Adjust the steering wheel [CAB type only].
(See Steering wheel tilt lever [CAB type only] on
page 42)
CAUTION
To avoid personal injury:
– Do not adjust the steering wheel while
the tractor is in motion.
– Make sure that the steering wheel is
locked after adjusting.
OPERATING THE TRACTOR OPERATION OF THE FOLDABLE ROPS (IF EQUIPPED)
