Fuse No. Capacity (A) Protected circuit
17 30 Wiper
18 10 Heater (if equipped)

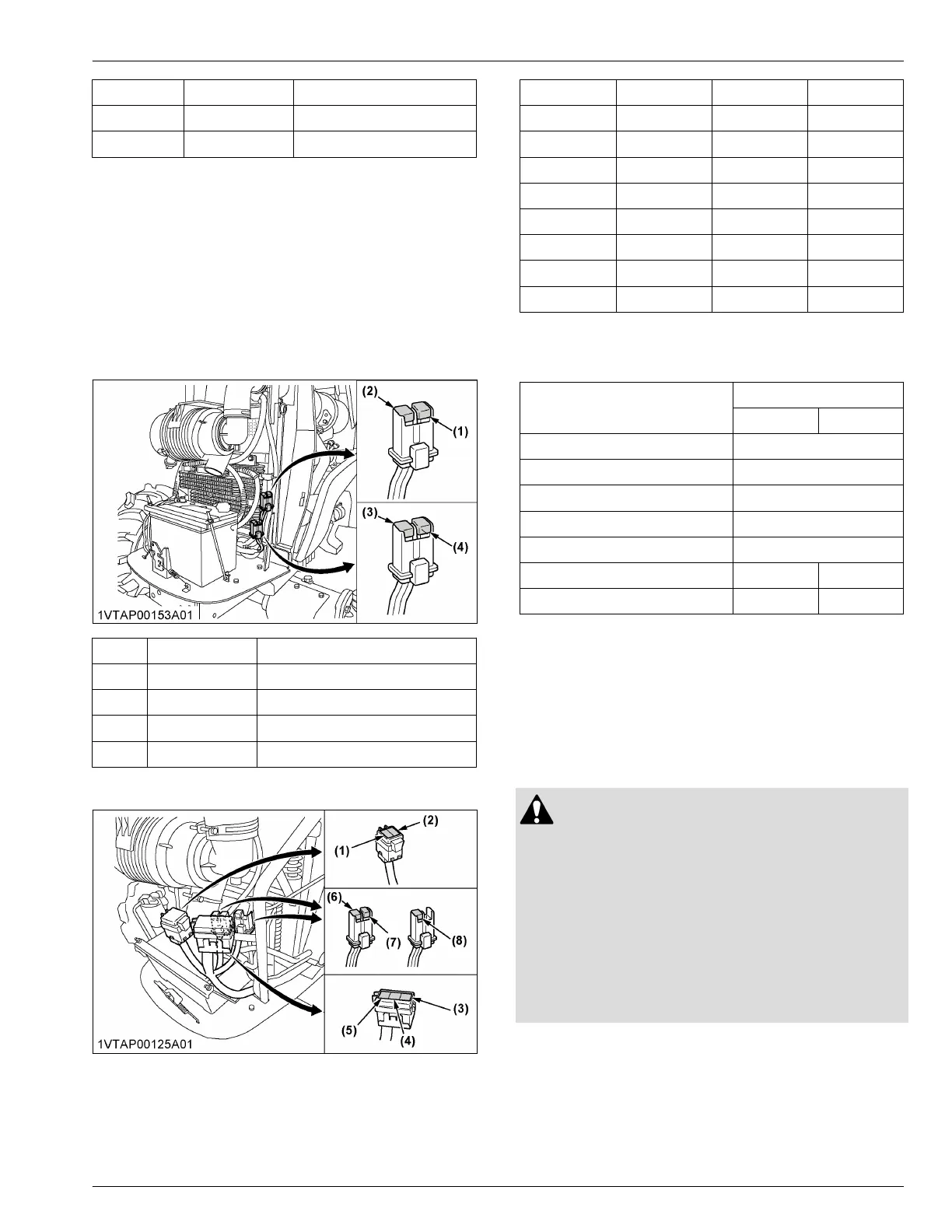

5. Replacing the slow-blow fuses
The slow-blow fuses are intended to protect the
electrical cabling.
1. If any of the slow-blow fuses has blown out, be sure
to pinpoint the cause.
Never use any substitute, use only a KUBOTA
genuine part.
Protected circuit [ROPS type]
No. Capacity (A) Protected circuit
1 40 Main
2 60 Key switch
3 50 Heater (Oil separator) (if equipped)
4 60 Grow
Protected circuit [CAB type]
No.
Capacity (A) NA CA
1 20 - CCV Heater
2 30 - Defogger
3 60 Battery Key switch
4 60 Grow Grow
5 100 Main Battery
6 60 Key switch -
7 60 Lamp -
8 30 Defogger -
6. Replacing the light bulb
Light
Capacity
ROPS CABIN
Head lights 35 W / 35 W
Tail light 5 W
Turn signal / hazard light (Left) 21 W
Turn signal / hazard light (Right) 27 W
Instrument panel light 1.7 W
Room light - 5 W
Work light - 35 W
Head light and rear combination lights
1. Take the bulb out of the light body and replace with
a new one.
Other lights
1. Detach the lens and replace the bulb.
7. Replacing the head lamp
WARNING
To avoid personal injury:
• Be careful not to drop the bulb, hit anything
against the head lamp, apply the excess force,
or get the head lamp scratched. If the head lamp
is broken, glass may cause injury. Pay more
attention to halogen lamps in particular, which
include high pressure inside.
• Before replacing the head lamp, be sure to turn
off the light and wait until the bulb cools down.
Otherwise, you may get burned.
Removing the bulb
1. Remove the rubber boot.
2. Turn the socket counterclockwise while pressing
and remove it.
3. Remove the bulb.
SERVICING AS REQUIRED PERIODIC SERVICE
