1. If any of the fuses should blow, replace with a new
fuse with the same capacity.

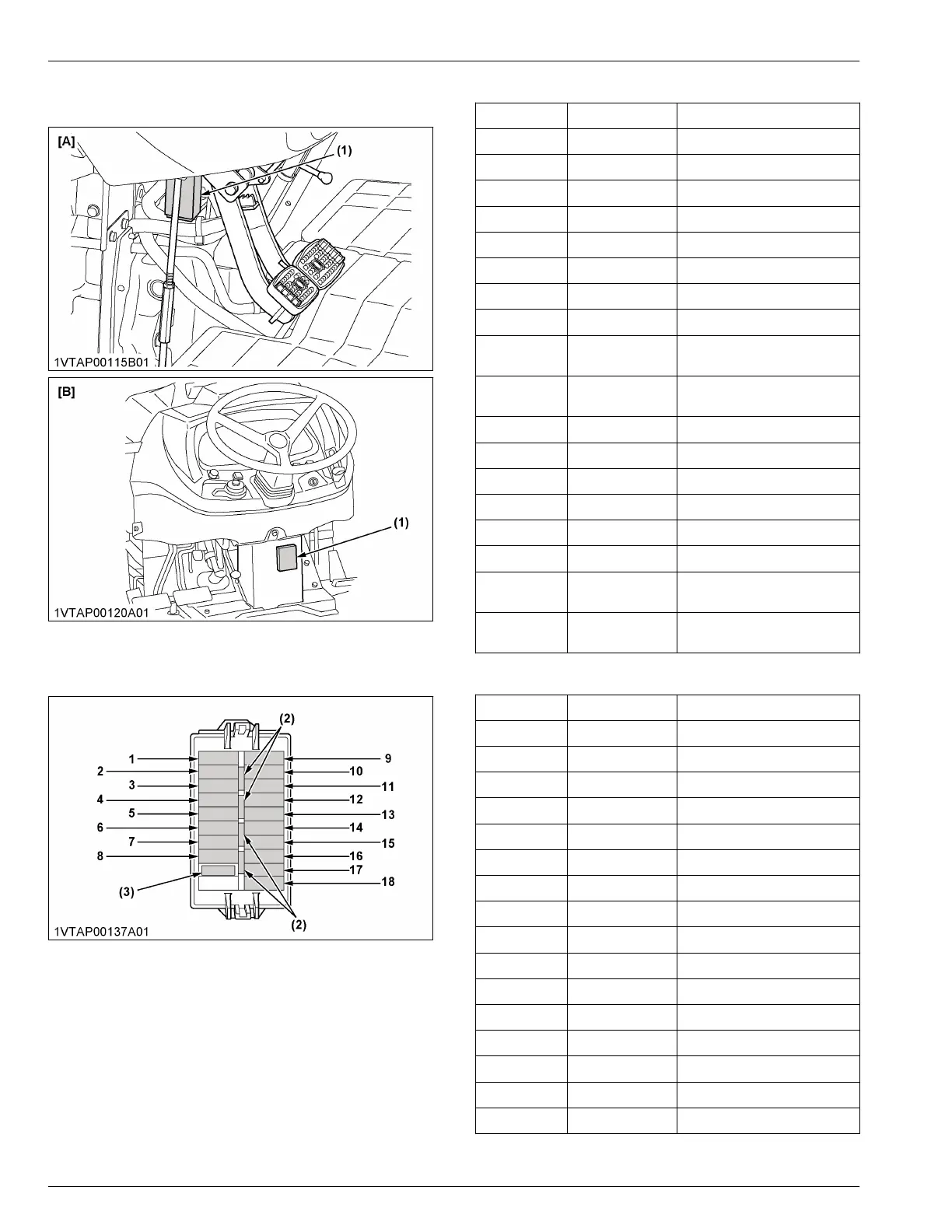

(1) Fuse [A] ROPS type
[B] CAB type
Fuse (1)
(2) Spare fuse
(3) Fuse puller
Protected circuit [ROPS]
Fuse No. Capacity (A) Protected circuit
1 - -
2 15 Power supply
3 5 Engine ECU (Ignition key)
4 5 Main ECU (Ignition key)
5 10 Meter panel (Ignition key)
6 5 Combination switch
7 15 Work light
8 5 Starter relay
9 10
Heater (Oil separator, IN 1) (if
equipped)
10 10
Heater (Oil separator, IN 2) (if
equipped)
11 20 Engine ECU (Battery)
12 5 Main ECU (Battery)
13 5 Meter panel (Battery)
14 10 Hazard
15 10 Head light
16 - -
17 10
Heater (Oil separator, OUT 1)
(if equipped)
18 10
Heater (Oil separator, OUT 2)
(if equipped)
Protected circuit [CAB]
Fuse No.
Capacity (A) Protected circuit
1 20 Work light
2 15 Horn
3 5 Engine ECU (Ignition key)
4 5 Main ECU (Ignition key)
5 10 Meter panel (Ignition key)
6 10 Combination switch
7 30 Cigar lighter
8 30 Starter relay
9 30 Aircon blower
10 5 Radio (ACC)
11 20 Engine ECU (Battery)
12 5 Main ECU (Battery)
13 5 Meter panel (Battery)
14 20 Hazard
15 10 Head light
16 7.5 Aircon compressor
(Continued)
