• Whenever an implement or other attachment is
connected to the 3-point hitch of the tractor,
check full range of operation for interference,
binding, or PTO separation.
2.2 Adjusting the lifting rod (right)
WARNING
To avoid personal injury or death:
• Do not extend the lifting rod beyond the groove
on the thread rod.
1. To adjust the length of the lifting rod, lift the
adjusting handle and turn the lifting rod to desired
length.
When extending the lifting rod using the adjusting
handle, do not exceed the groove on the rod thread.
2. After adjusting, lower the adjusting handle to the
lock position.

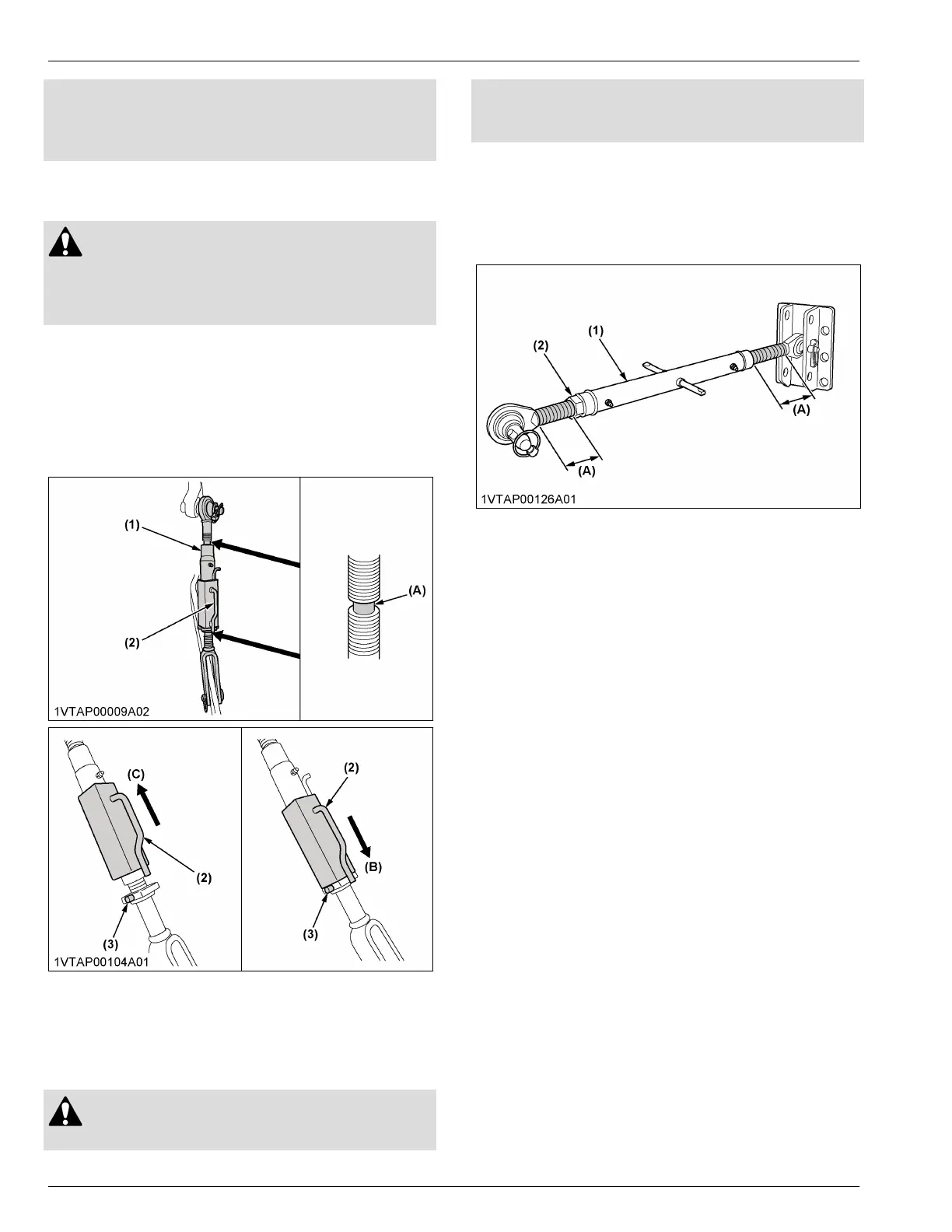

(1) Lifting rod
(2) Adjusting handle
(3) Lock plate
(A) Groove
(B) Lock position
(C) Unlock position
2.3 Adjusting the top link
WARNING
To avoid personal injury or death:
• When extending the top link, do not exceed the
groove on the top link thread, or the top link will
come apart and the 3-point equipment may fall.
The proper length of the top link varies according to the
type of implement being used.
1. Adjust the angle of the implement to the desired
position by shortening or lengthening the top link.
2. After adjustment, tighten the lock nut securely.
(1) Top link
(2) Lock nut
(A) Length of the screw
2.4 Adjusting the telescopic stabilizers
[MX5400 (4WD) / MX6000]
1. Adjust the telescopic stabilizers to control the
horizontal sway of the implement.
Select the proper set of holes.
(See Hydraulic control unit use reference chart on
page 96)
