NOTE :
• For road travel, start the tractor in a lower gear
(6th and 7th), and then shift to a higher gear
(7th and 8th). Starting in the lower gear will
prolong the service life of clutch.

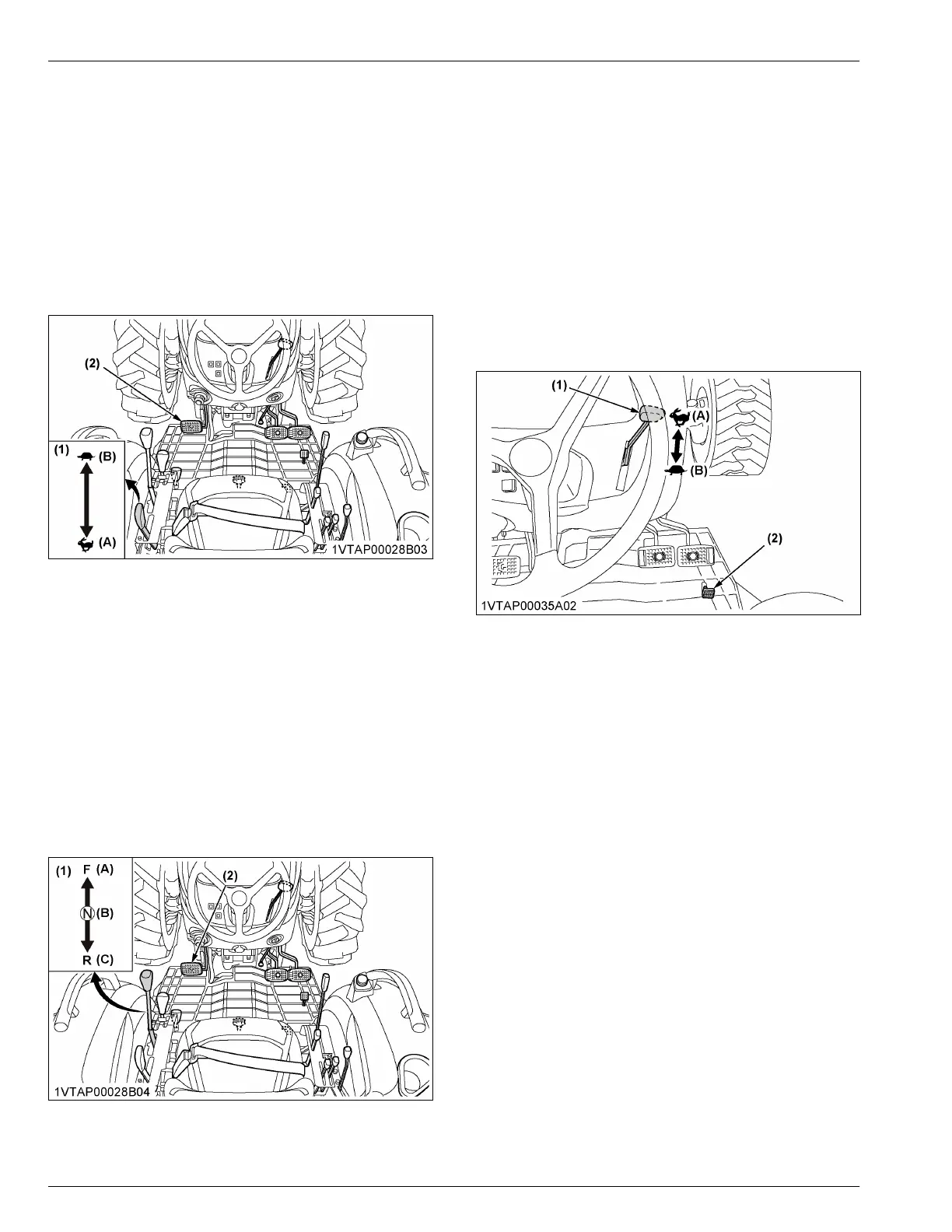

11. Range gear shift lever [Manual
transmission type]
You can shift the range-gear-shift only when the tractor
is completely stopped and clutch pedal is depressed.
(1) Range gear shift lever
(2) Clutch pedal
(A) High
(B) Low
IMPORTANT :
• To avoid transmission damage, depress the
clutch pedal and stop the tractor before shifting
between low and high ranges.
12. Synchro-shuttle shift lever
[Manual transmission type only]
Shift the synchro-shuttle shift lever forward to obtain
forward speeds and shift back to obtain reverse
speeds. Shifting the synchro-shuttle shift lever requires
clutch operation.
(1) Synchro-shuttle shift lever
(2) Clutch pedal
(A) Forward
(B) Neutral position
(C) Reverse
IMPORTANT :
• The synchro-shuttle shift lever may be shifted
while the tractor is moving slowly and the
clutch is depressed, but sudden gear shifting
may cause transmission damage.
13. Foot throttle [Manual
transmission type only]
Use the foot throttle when traveling on the road.
Press down on the foot throttle for higher speed. The
foot throttle is interlocked with the hand-throttle-lever.
When using the foot throttle, keep the hand-throttle-
lever in the low idling position.
(1) Hand throttle lever
(2) Foot throttle
(A) Increase
(B) Decrease
14. Range gear shift lever (L-M-H)
[HST type]
You can shift the range gear only when the tractor is
completely stopped and the speed-control-pedal is the
neutral position.
INSTRUMENT PANEL AND CONTROLS
FOOT CONTROLS AND HAND CONTROLS
