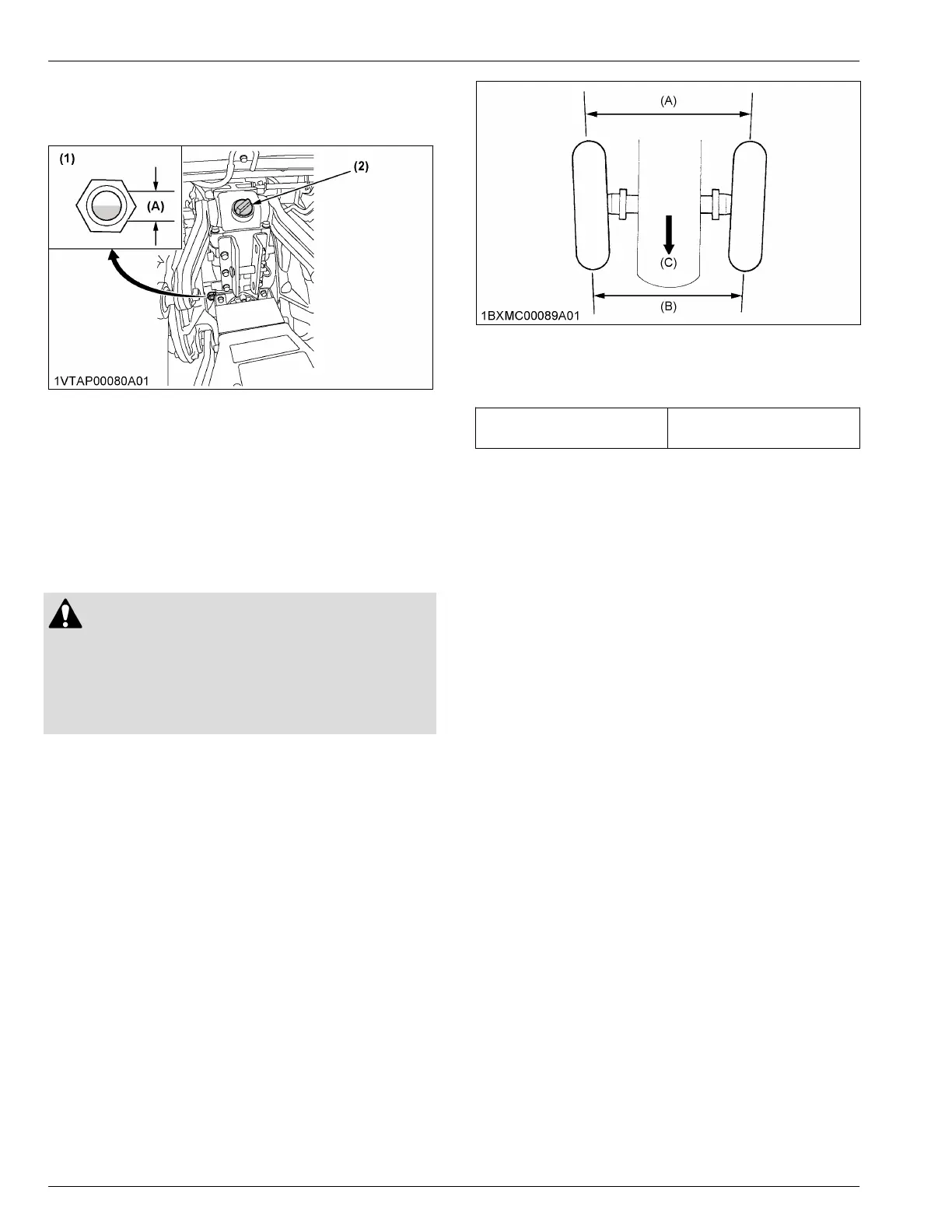

6. After the new transmission-oil-filter has been
replaced, fill with the transmission oil up to the
upper line of the gauge.
(1) Gauge
(2) Oil inlet
(A) Range which transmission
oil level is acceptable within
7.
After running the engine for a few minutes, stop the
engine and check the oil level again, add the
transmission oil to the prescribed level.
8. Make sure that the transmission fluid does not leak
past the rubber seal on the the transmission-oil-
filter.
2. Checking the toe-in
WARNING
To avoid personal injury or death:
• Park the tractor on a firm, flat, and level place.
• Lower the implement to the ground and lock the
parking brake.
• Stop the engine and remove the starter key.
1. Park the tractor on a flat place.
2. Turn the steering wheel so that the front wheels are
in the straight ahead position.
3. Lower the implement, lock the parking brake, and
stop the engine.
4. Measure the distance between the tire beads at
front of tire, at the hub height.
5. Measure the distance between the tire beads at
rear of tire, at the hub height.
The distance between the tire beads at front of tire
should be shorter than the distance between the tire
beads at rear of tire.
6. If the distance between the tire beads at front of tire
is not shorter than the distance between the tire
beads at rear of tire, adjust the length of tie rod.
(See Adjusting the toe-in on page 138.)
(A) Wheel-to-wheel distance at
rear
(B) Wheel-to-wheel distance at
front
(C) Front
Proper toe-in
2 mm to 8 mm
(0.08 in. to 0.31 in.)
2.1 Adjusting the toe-in
1. Detach the snap ring.
2. Loosen the tie-rod nut.
3. Turn the tie-rod joint to adjust the length of tie-rod
until the proper toe-in measurement is obtained.
4. Retighten the tie-rod nut.
PERIODIC SERVICE SERVICE EVERY 200 HOURS
