REMOTE HYDRAULIC
CONTROL SYSTEM (IF
EQUIPPED)
You can install the hydraulic-auxiliary-control-valves up
to triple segments.

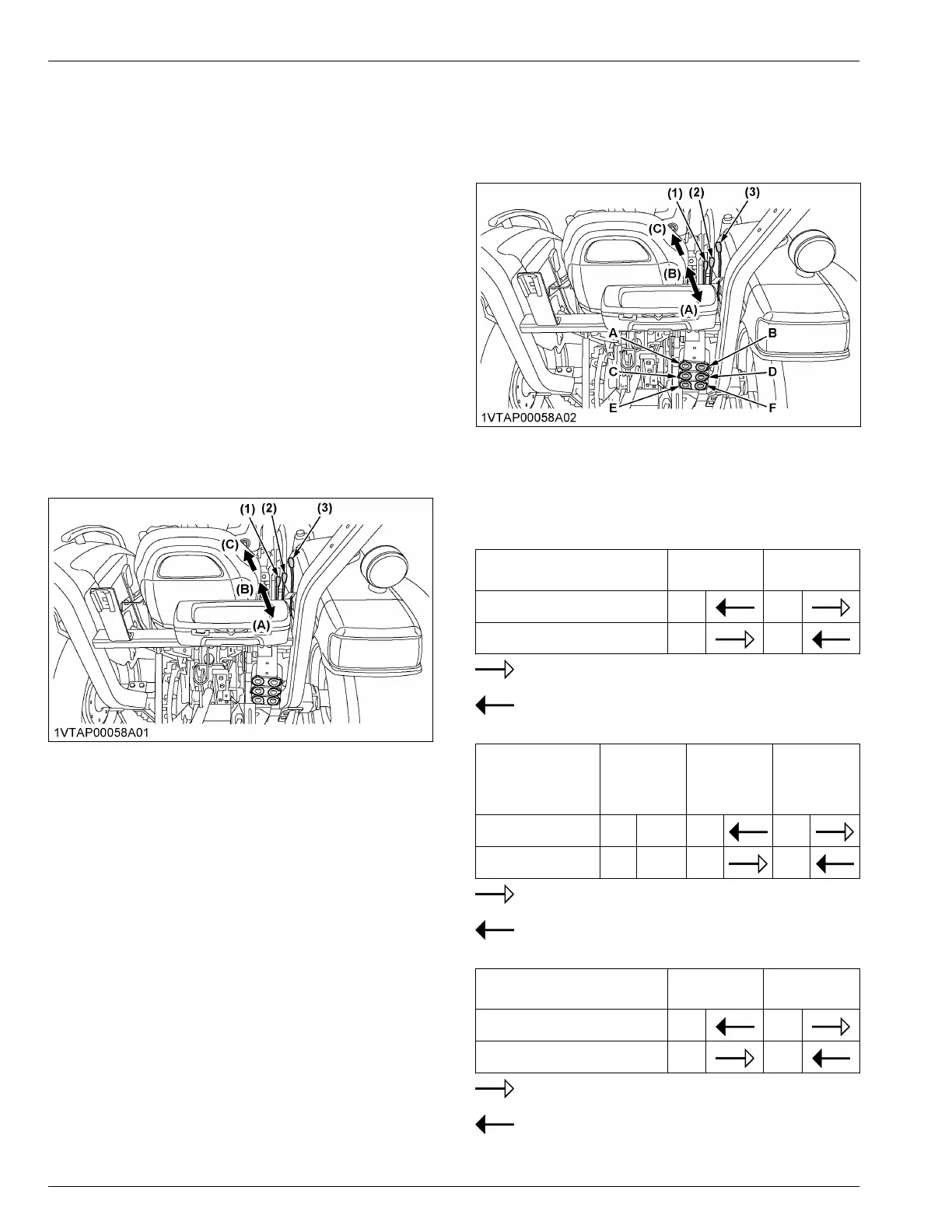

1. Remote control valve (if equipped)
There are 2 types of remote-control-valves available for
the following models:
• Double acting valve
• Double acting valve with float position
Double-acting-valve with float position may be
placed in the float mode with the remote-control-
valve-lever all the way forward. The cylinder is free
to extend or retract, letting an implement such as a
loader bucket follow the ground.
NOTE :
• You can attach the floating valve as the second
segment only.
(1) Remote control valve lever
with double acting valve
(2) Remote control valve lever
with double acting valve /
float position
(3) Remote control valve lever
with double acting valve
(A) Rearward
(B) Forward
(C) Full forward
2. Remote control valve lever (if
equipped)
The remote-control-valve-lever directs pressurized oil
flow to the implement-hydraulic-system.
(1) Remote control valve lever
with double acting valve
(2) Remote control valve lever
with double acting valve /
float position
(3) Remote control valve lever
with double acting valve
(A) Rearward
(B) Forward
(C) Full forward
Remote control valve lever
with double acting valve (1)
Forward Rearward
Port-A In Out
Port-B Out In
Pressure
Returning
Remote control
valve lever with
double acting
valve (2)
Full For-
ward
Forward Rearward
Port-C In Float In Out
Port-D Out Float Out In
Pressure
Returning
Remote control valve lever
with double acting valve (3)
Forward Rearward
Port-E In Out
Port-F Out In
Pressure
Returning
HYDRAULIC UNIT REMOTE HYDRAULIC CONTROL SYSTEM (IF EQUIPPED)
