3.2 Operating procedure for Regeneration Inhibit mode
3.2.1 Regeneration operating procedure for Regeneration Inhibit mode

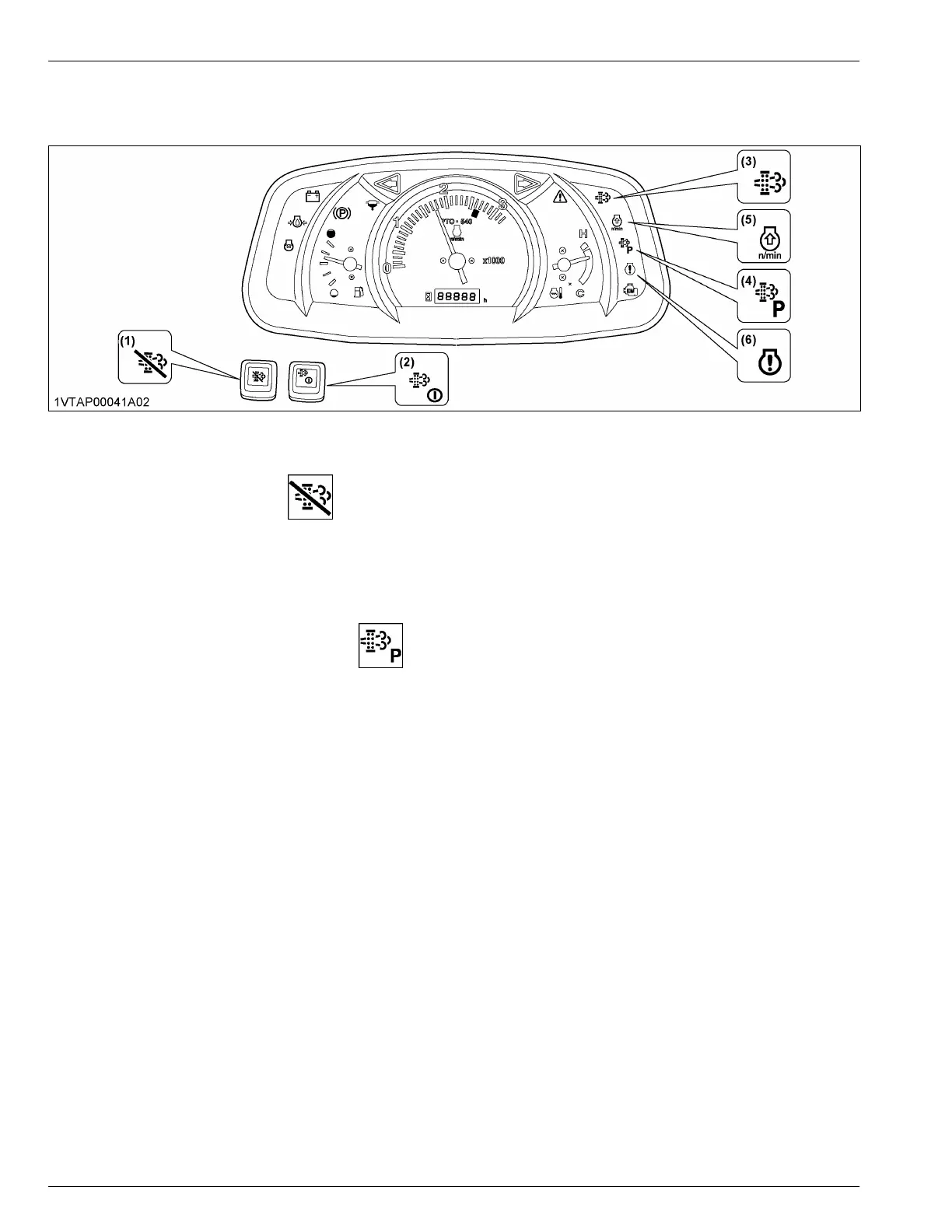

(1) DPF INHIBIT switch
(2) Parked regeneration switch
(3) Regeneration indicator
(4) Parked regeneration indicator
(5) Engine RPM increase indicator
(6) Engine warning indicator
1. Start the engine.
2. Press the DPF-INHIBIT-switch , and the DPF-INHIBIT-switch lamp illuminates.
DPF INHIBIT switch lamp is “ON”
“Regeneration Inhibit” mode is activated.
DPF INHIBIT switch lamp is “OFF”
“Auto Regeneration” mode is activated.
3. When the parked-regeneration-indicator starts flashing, a specific amount of PM has accumulated in the
DPF muffler.
Move the tractor to a safe place and activate the DPF muffler. Follow the procedure in Operating procedure for
parked regeneration on page 56)
OPERATING THE ENGINE EXHAUST AFTERTREATMENT DEVICES
