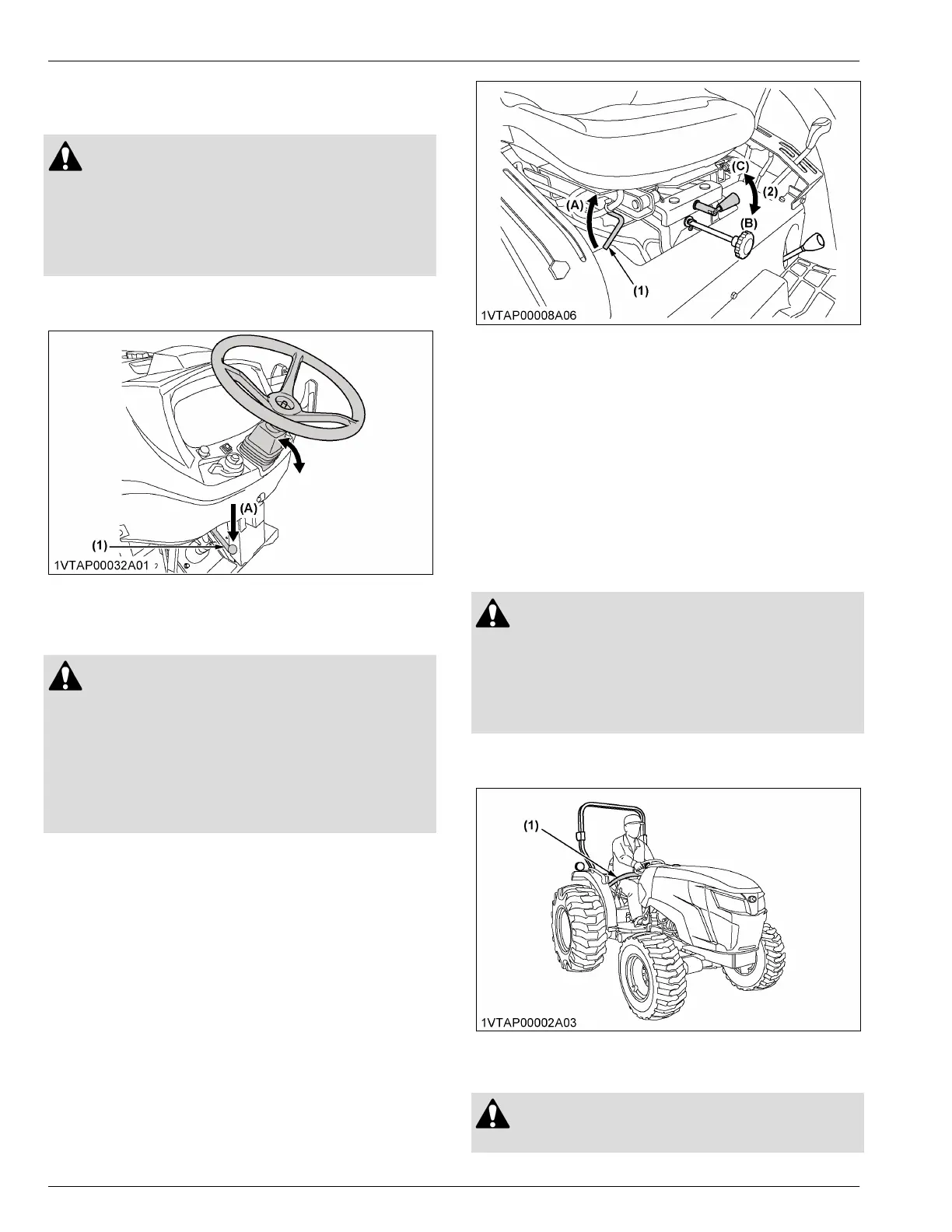

3. Steering wheel tilt lever [CAB type
only]
CAUTION
To avoid personal injury:
• Do not adjust the steering wheel while the
tractor is in motion.
• Make sure that the steering wheel is locked
after adjusting.
Steering wheel is adjustable when the steering-wheel-
tilt-lever is unlocked.
(1) Steering wheel tilt lever (A) Press down
4. Operator's seat
WARNING
To avoid personal injury or death:
• Adjust the operator's seat only while the tractor
is stopped.
• Make sure that the operator's seat is completely
secured after each adjustment.
• Do not allow any person other than the operator
to ride on the tractor.
• Travel adjustment
Pull the travel-adjust-lever and slide the seat
backward or forward, as required. The operator's
seat will lock in position when the travel-adjust-lever
is released.
(1) Travel adjust lever
(2) Suspension adjust lever
(A) Pull
(B) Increase tension
(C) Decrease tension
• Suspension adjustment
Turn the suspension-adjust-lever to achieve the
optimum suspension setting.
IMPORTANT :
• After adjusting the operator's seat, be sure to
check to see that the operator's seat is properly
locked.
5. Seat belt
WARNING
To avoid personal injury or death:
• Always use the seat belt when any ROPS or
CAB are installed.
• Do not use the seat belt if a foldable ROPS is
down or there is no ROPS.
Adjust the seat belt for proper fit and connect the
buckle. This seat belt is auto-locking retractable type.
(1) Seat belt
6. Brake pedals (right and left)
WARNING
To avoid personal injury or death:
