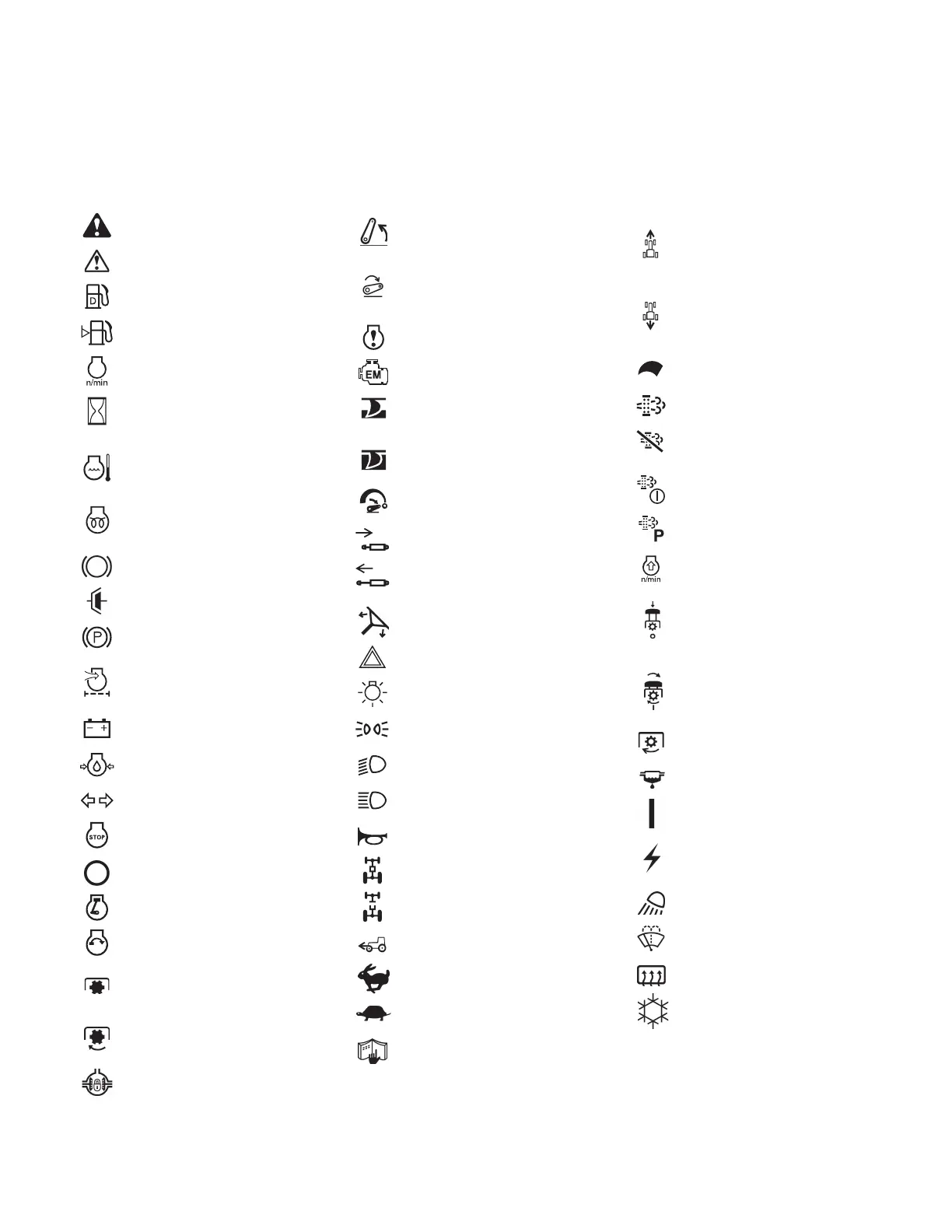

UNIVERSAL SYMBOLS
As a guide to the operation of your tractor, various universal symbols have been utilized on the instruments and
controls. The symbols are shown below with an indication of their meaning.
Safety Alert Symbol
Master system warning
Diesel Fuel
Fuel-Level
Engine-Rotational Speed
Hourmeter/Elapsed
Operating Hours
Engine
Coolant-Temperature
Diesel Preheat/Glow Plugs
(Low Temperature Start Aid)
Brake System
Clutch
Parking Brake
Engine Intake/Combustion
Air-Filter
Battery Charging Condition
Engine Oil-Pressure
Turn Signal
Engine-Stop
OFF
Engine-Run
Engine-Start
Power Take-Off Clutch
Control-Off Position
Power Take-Off Clutch
Control-On Position
Differential Lock
Tractor-Forward
Movement-Overhead View
of Machine
Tractor-Rearward
Movement-Overhead View
of Machine
Engine Speed Control
Regeneration
DPF INHIBIT (Switch)
Parked Regeneration
(Switch)
Parked Regeneration
Engine RPM Increase
Power Take-Off Clutch
Control-Off
(Disengaged) Position
Power Take-Off Clutch
Control-On
(Engaged) Position
Stationary PTO
Water separator
ON (engaged)
Electrical
Power-accessories
Work Light
Windshield Wiper
Rear Window Defroster
Air conditioner
Position Control-Raised
Position
Position Control-Lowered
Position
Engine Warning
Emission Control
Draft Control-Shallow
Position
Draft Control-Deep Position
3-Point Lowering Speed
Control
Remote Cylinder-Retract
Remote Cylinder-Extend
Steering Wheel-Tilt Control
Hazard Warning Lights
Master Lighting Switch
Position Lamps
Headlight-Low Beam
Headlight-High Beam
Audible Warning Device
4-Wheel Drive-On
4-Wheel Drive-Off
Front-Wheel Drive-On
Fast
Slow
Read Operator's Manual
