6. Remove two screws and remove the scan-
ner left cover.

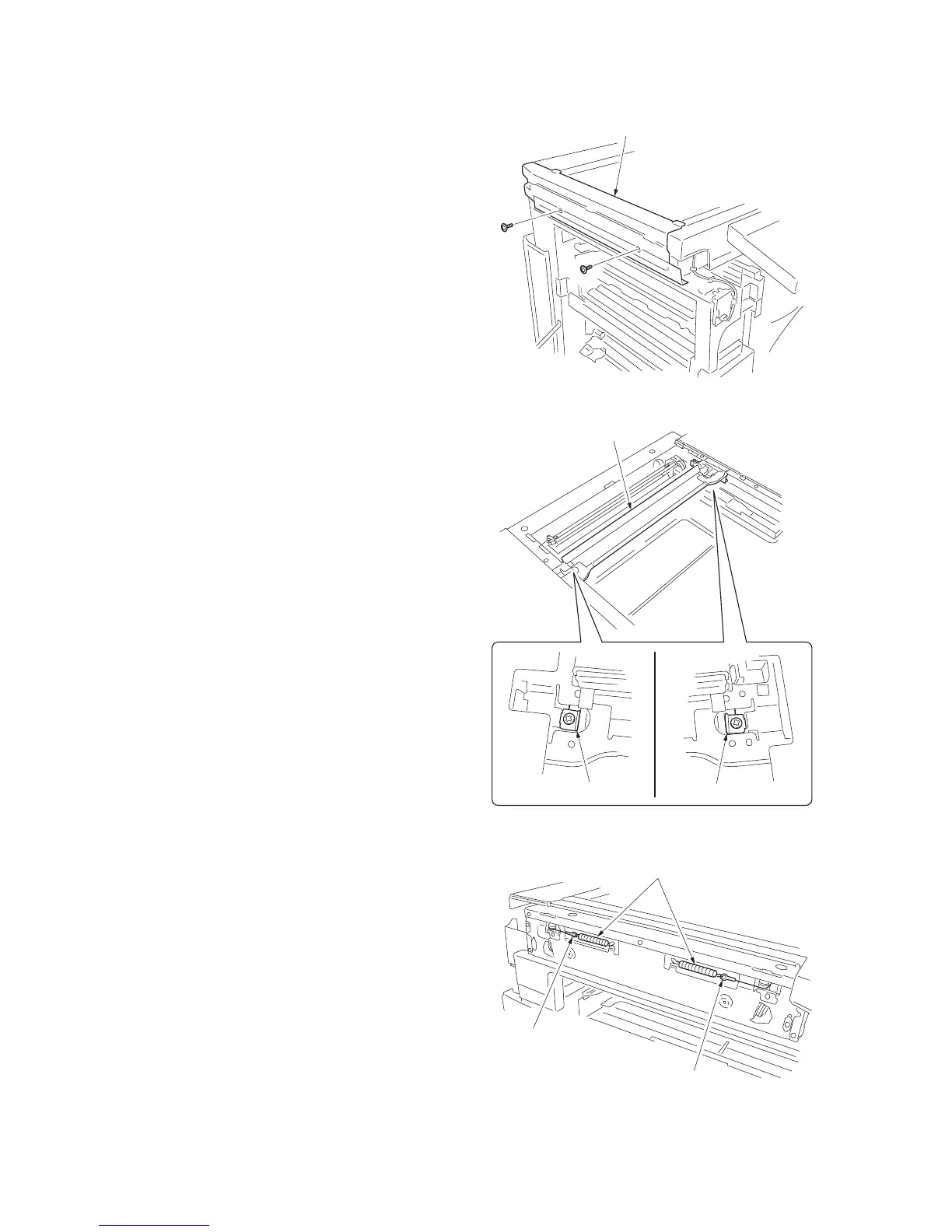

Figure 1-5-33
7. Remove each screw and then remove front
and rear wire holder plates from mirror 1
frame.
8. Remove the mirror 1 frame.
Figure 1-5-34
9. Remove the round terminals from the scan-
ner wire springs on scanner unit left side.
10. Remove the scanner wire.
Figure 1-5-35
Scanner left cover
Front wire holder plate
Rear wire holder plate
Mirror 1 frame
Scanner wire springs
Round terminal
Round terminal
