Fitting the scanner wires
11. Move the mirror 2 frame as shown in the fig-
ure and insert two frame securing tools into
the positioning holes at the front and rear of
the machine center to fix the mirror 2 frame
in position.

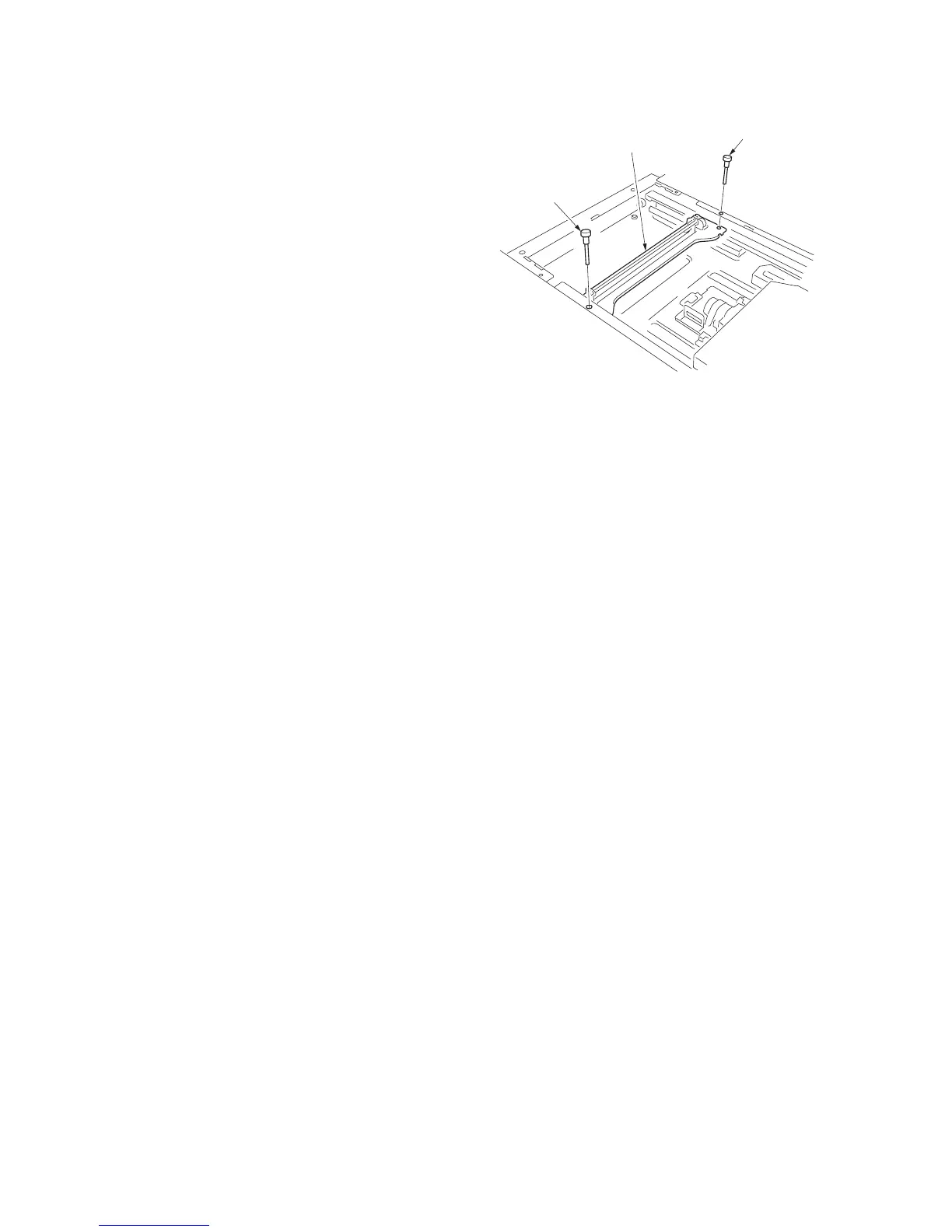

Figure 1-5-36
Frame securing tool
Mirror 2 frame
Frame securing tool
