2GN/2GP/2GR-1
1-5-17
12. Hook the round terminals onto the catches inside of the scanner unit. (1)
13. Loop the scanner wires around the outer grooves in the pulleys on the mirror 2 frame, winding from below to
above. (2)
14. Loop the scanner wires around the grooves in the scanner wire pulleys at the scanner unit right, winding from
above to below. (3)
15. Wind the scanner wires around the scanner wire drum five turns from the rear toward the hole in the drum. (4)
16. Insert the locating balls on the scanner wires into the holes in the scanner wire drum. (5)
17. Wind the scanner wires three turns from the inner toward the hole in the drum. (6)
18. Install the scanner wire stoppers to the scanner wire drum to fix the wires. (7)
19. Loop the scanner wires around the grooves in the scanner wire pulleys at the scanner unit left, winding from
below to above. (8)
20. Loop the scanner wires around the inner grooves in the pulleys on the mirror 2 frame, winding from below to
above. (9)
21. Hook the scanner wires around the scanner wire guides at the machine left. (10)
22. Hook the round terminal onto the scanner wire springs. (11)

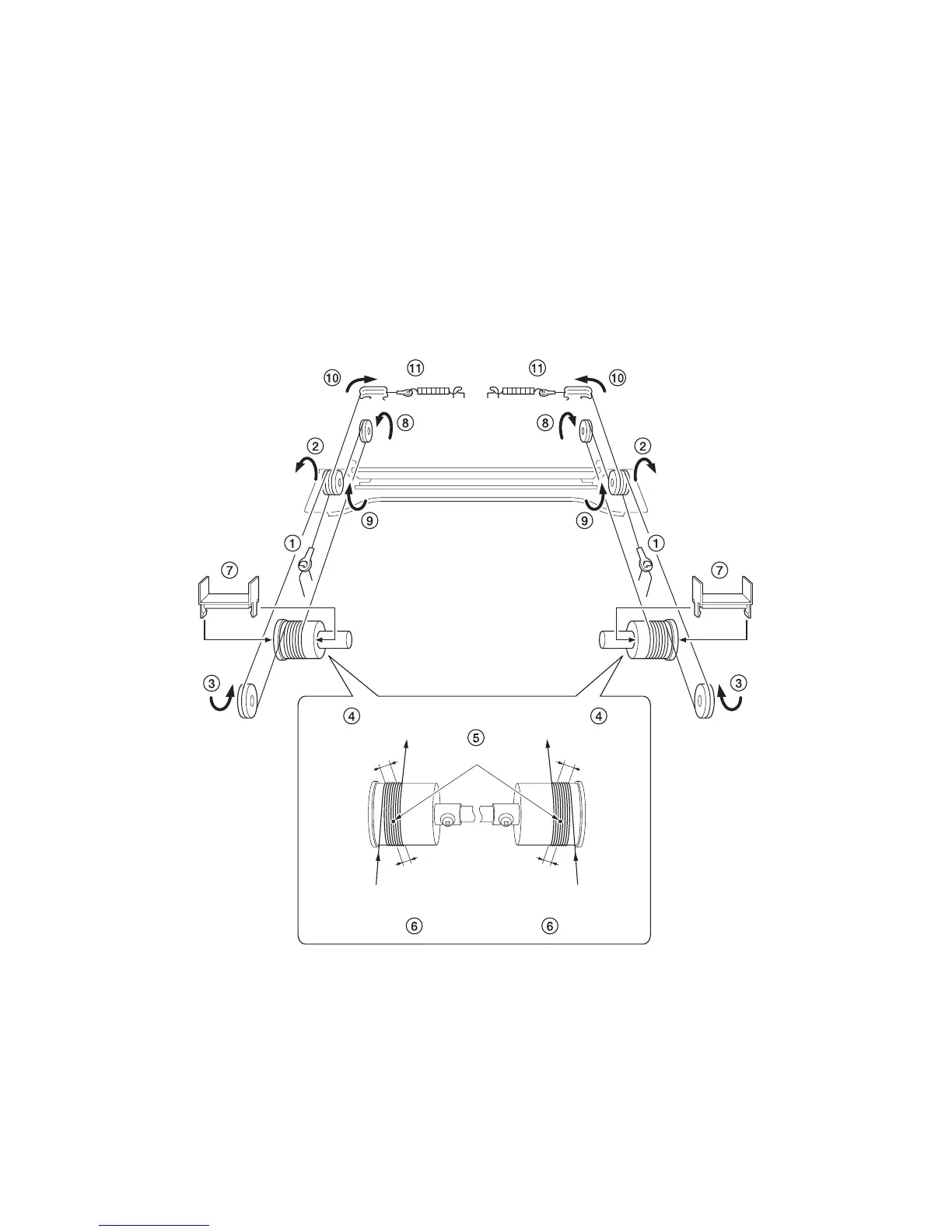

Figure 1-5-37
Five turns from
the rear toward
Five turns from
the rear toward
Three turns from
the inner toward
Three turns from
the inner toward
Locating balls
To Next Page
