4. Remove all connectors from the main
PWB.
5. Release the one wire saddle.
6. Remove six screws.
7. Remove the one connector from the hard
disk.
8. Remove the main PWB/HDD mount (with
main PWB and hard disk).

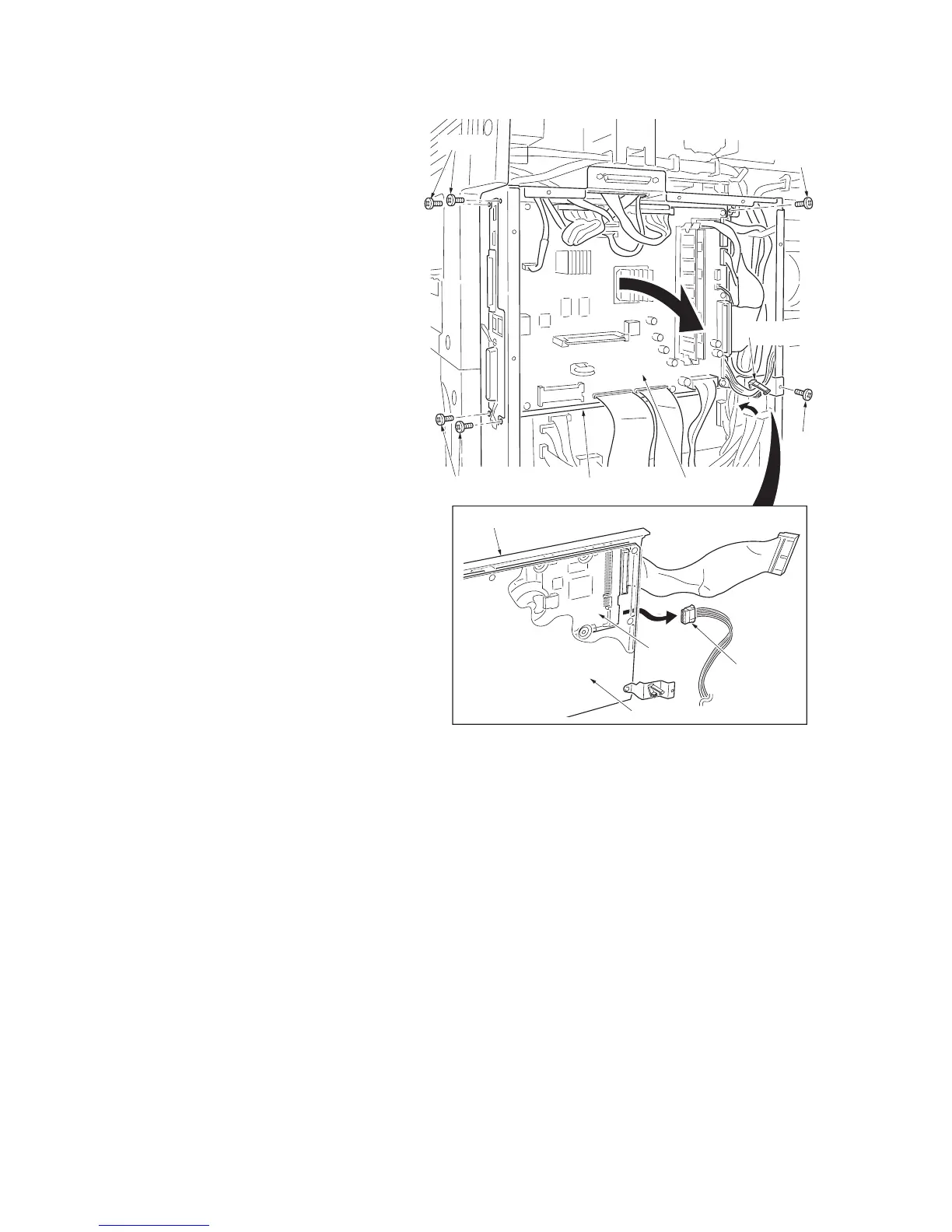

Figure 1-5-79
Main PWB
Main PWB/HDD mount
Hard disk
Connector
Screw
Screw
Screws
Main PWB
Main PWB/HDD mount
Wire saddle
Screws
