2. Remove the protective cap from the probe.

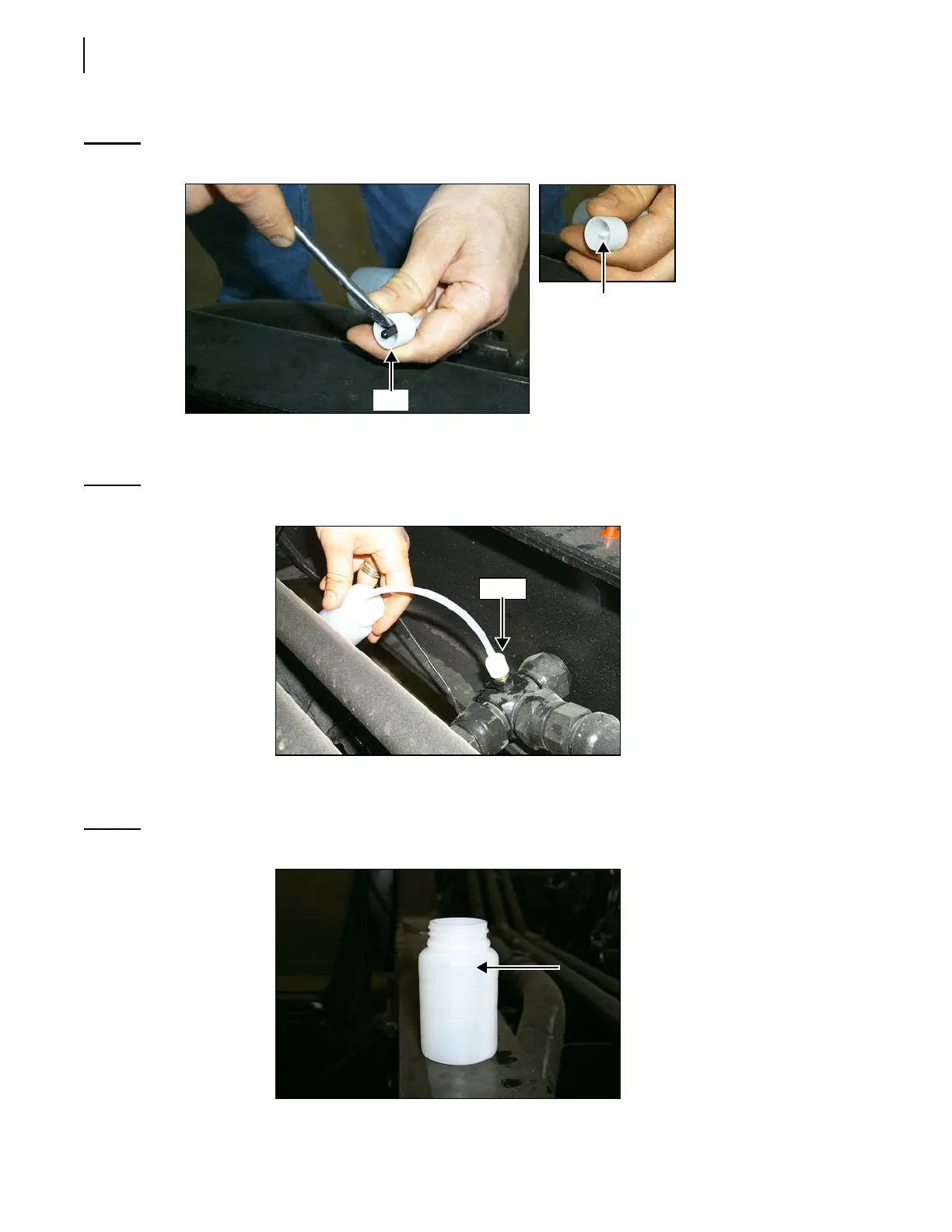

Figure 4-4 Probe cap and tip
3. Install the probe on the coupler to fill the sample bottle. Use an EMA coupler with M16 × 2.0
threads.
Figure 4-5 Installing probe on coupler
4. Fill the bottle to the level mark (the pump must be engaged to do this). Remove excess oil
through the vent. D
O NOT OPEN THE BOTTLE!
Figure 4-6 Recommended oil level
Tip
Cap
Probe
