General Maintenance 51

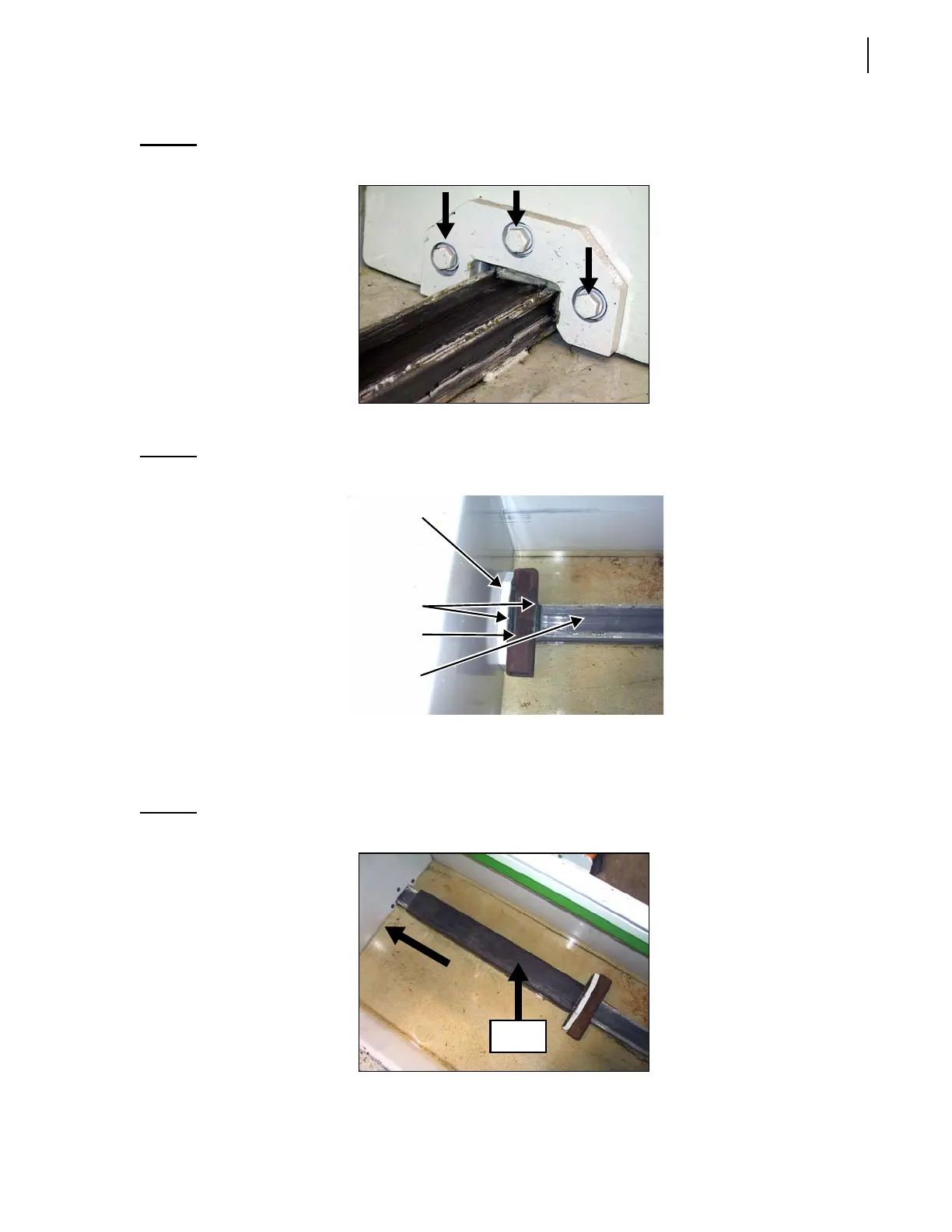

10. Remove all 3 bolts retaining each sliding shoe (see Figure 3-39).
Figure 3-39
Retaining bolts
11. Tack weld a piece of steel tubing to the floor rail and to the front of both sliding shoes.
Figure 3-40
Tack welding
12. Start the engine, engage the hydraulic pump, and press the yellow button to slowly retract the
packer.
The sliding shoes will come out under the packer as it is retracting (see Figure 3-41).
Figure 3-41
Packer retracting, exposing sliding shoe
Sliding shoe
Floor guide
Steel tubing
Welds
Sliding
shoe
