86 General Maintenance

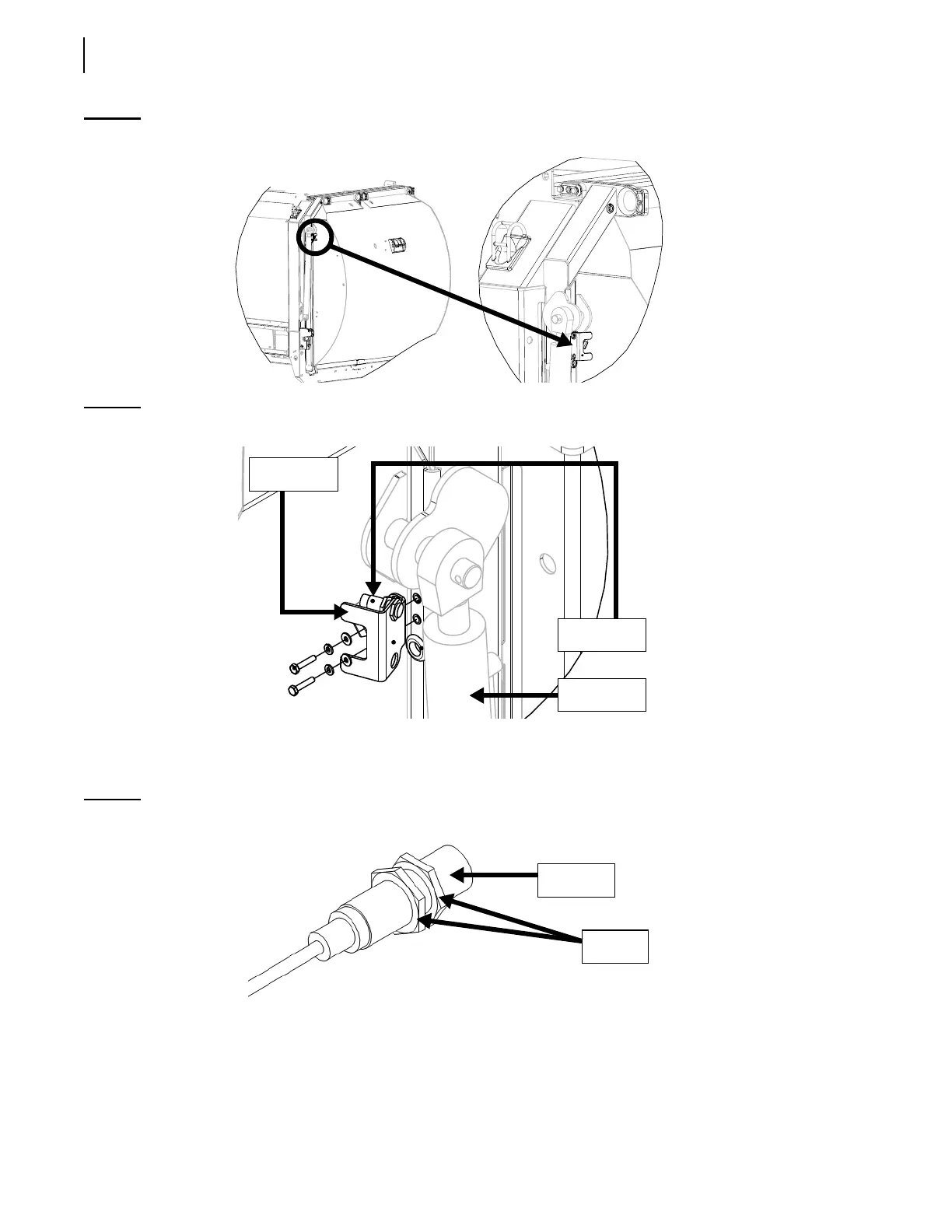

Figure 3-86
Location of tailgate unlocked proximity switch
Figure 3-87
Proximity switch support assembly
To adjust the tailgate unlocked proximity switch:
1. Loosen the nuts on each side of the proximity switch bracket (see Figure 3-88).
Figure 3-88
Proximity switch
2. Adjust the proximity switch so that the switch can be triggered by the cylinder casing as the
cylinder head moves upward. There should be a gap of approximately 3/16 inch between the
cylinder casing and the switch.
3. Tighten back up both nuts.
Bracket
Cylinder
Proximity
switch
Switch
Nuts
