Preparation
EN
42
A
B
C
D
E
F
G
H
I
J
K
L
A
Locking toggle
B
Tripod thread
C
Attachment screw
D
Interface with the camera
E
Storage compartment for the contact cover of the handgrip
F
Storage compartment for the contact cover of the camera
G
Front setting wheel
H
Shutter button
I
Strap lug
J
Thumbwheel
K
Joystick
L
Hand grip lock

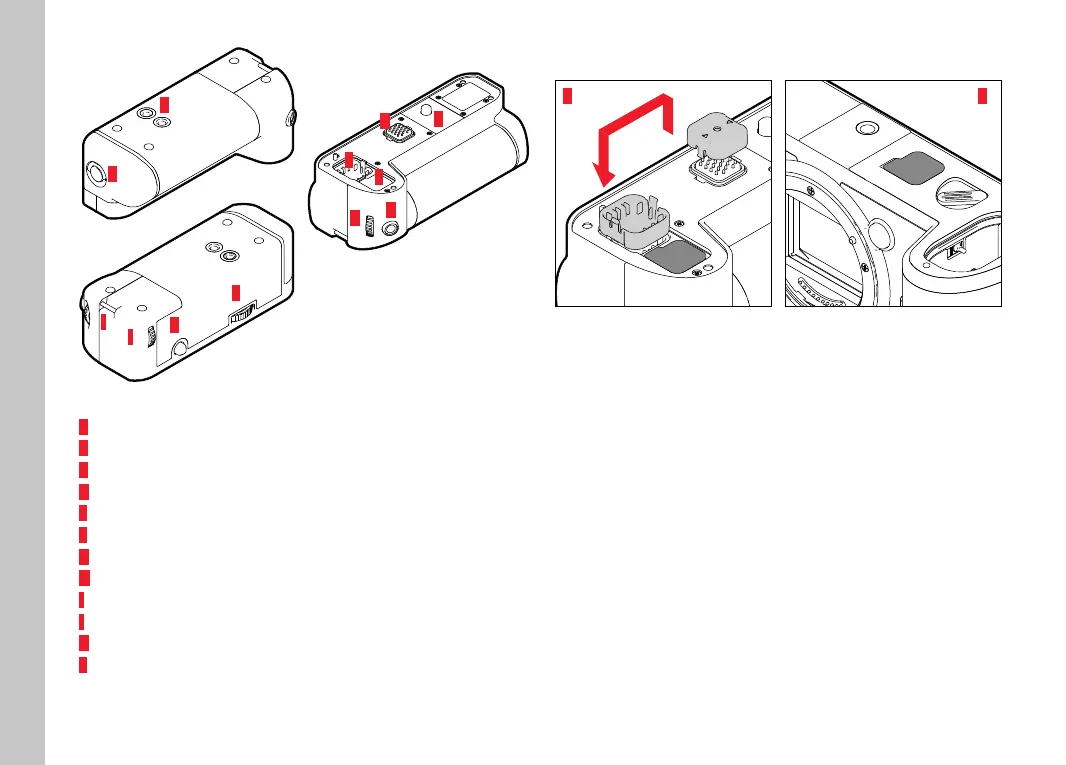

ATTACHING THE HANDGRIP
1 2
▸ Squeeze the contact cover of the handgrip on the two sides
marked with triangles and lift it off
▸ Store the contact cover in its designated compartment in the
handgrip
▸ Remove the contact cover in the base of the camera housing
▸ Store the contact cover in its designated compartment in the
handgrip
