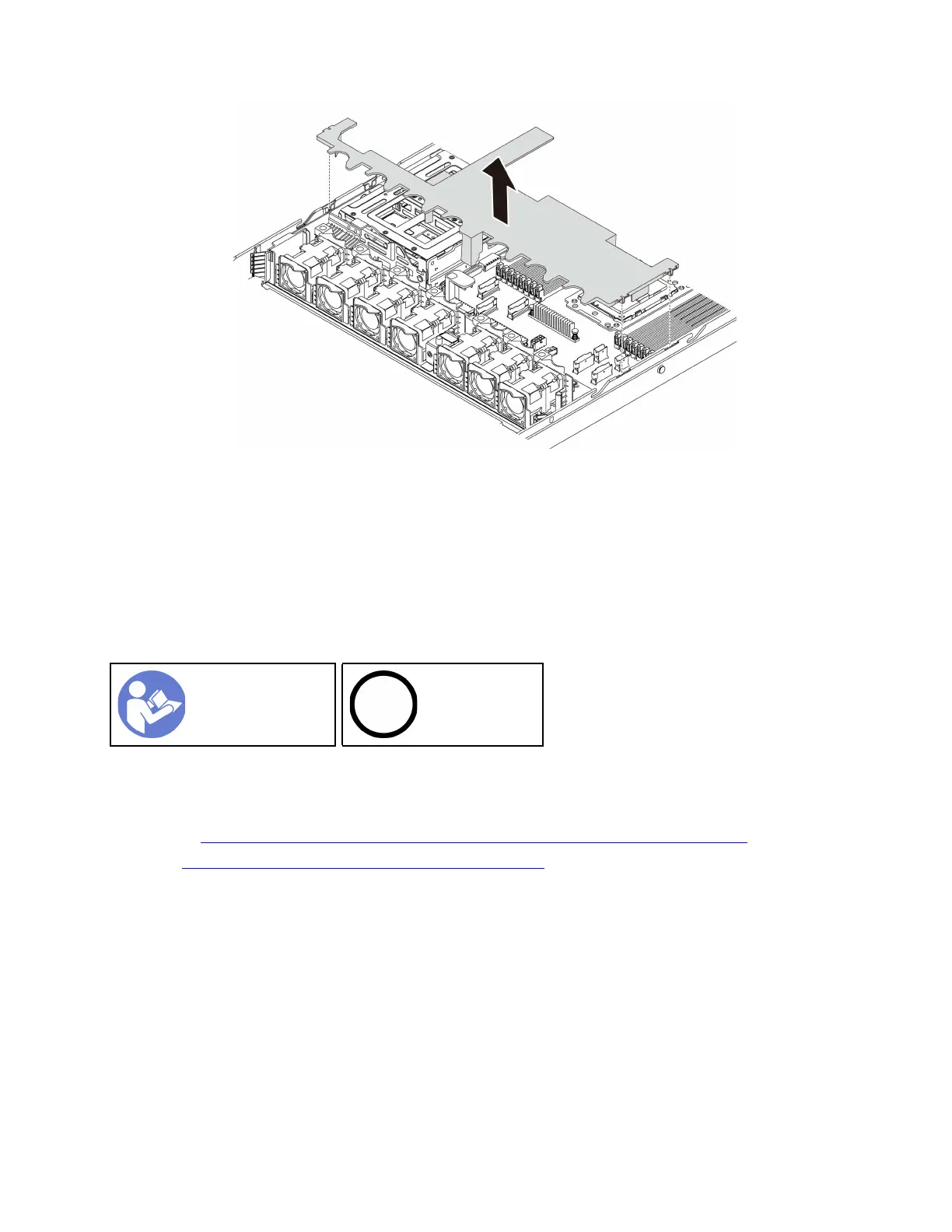

Figure 67. Air baffle removal
Step 1. Grasp the air baffle and carefully lift it out of the server.
Attention: For proper cooling and airflow, install the air baffle before you power on the server.
Operating the server with the air baffle removed might damage server components.
Install the air baffle
Use this information to install the air baffle.
“Read the
installation
Guidelines” on
page 79
“Power off the
server for this
task” on page
11
To install the air baffle, complete the following steps:
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DTDY1lmpIPpJVOzo7dKq14
• Youku: http://list.youku.com/albumlist/show/id_52222446.html
Note: The air baffle you want to install might be different from the following illustrations, but the installation
method is the same.
Chapter 3. Hardware replacement procedures 93
