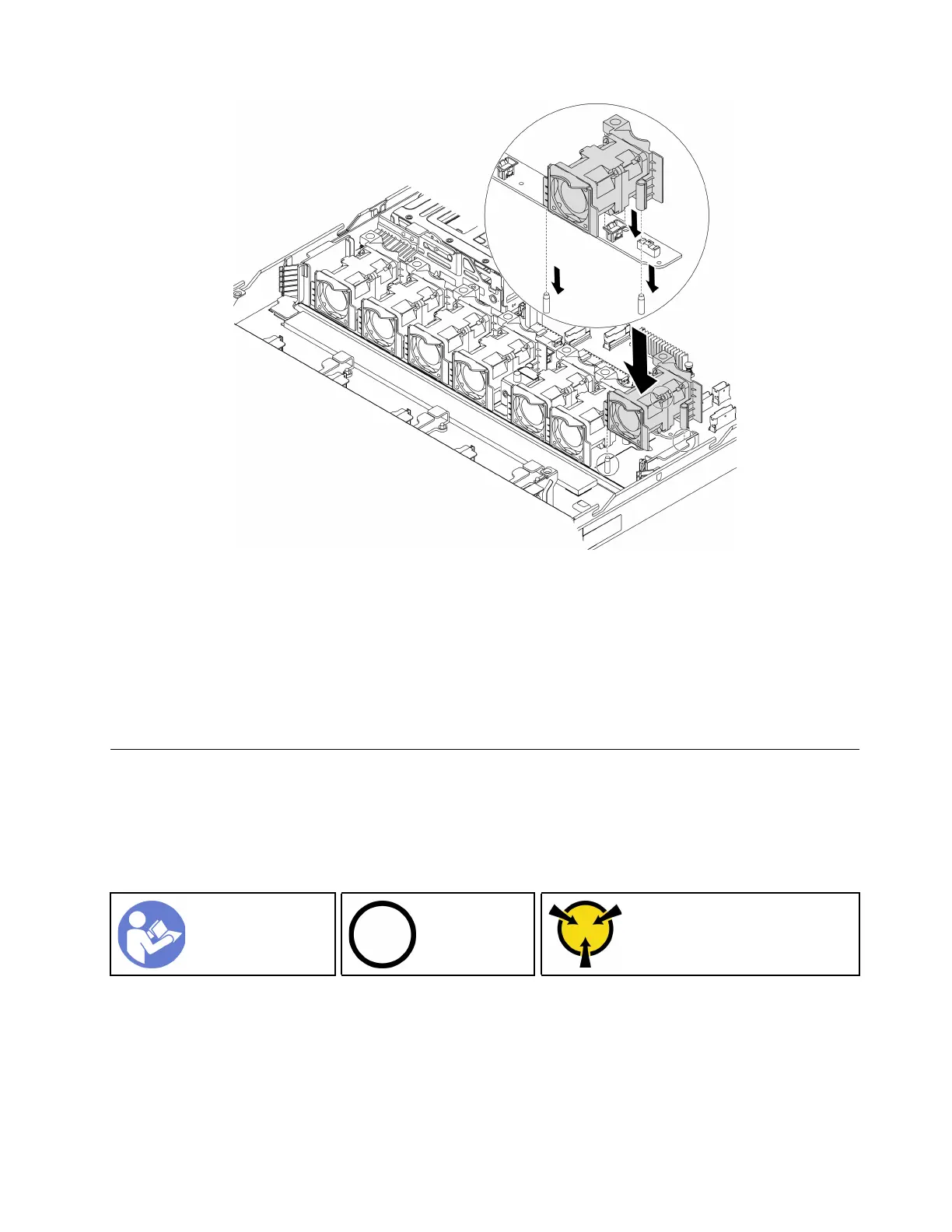

Figure 81. System fan installation
Step 1. Align the two holes in the system fan with the two pins on the chassis.
Step 2. Press the system fan down until it is seated correctly in the slot. Ensure that the fan connector is
installed correctly to the connector on the system board.
After installing the system fan, complete the parts replacement. See “Complete the parts replacement” on
page 203.
Memory module replacement
Use this information to remove and install a memory module.
Remove a memory module
Use this information to remove a memory module.
“Read the
installation
Guidelines” on
page 79
“Power off
the server for
this task” on
page 11
“ATTENTION:
Static Sensitive Device
Ground package before opening”
on page 82
Attention:
• Disconnect all power cords for this task.
• Memory modules are sensitive to static discharge and require special handling. Refer to the standard
guidelines for “Handling static-sensitive devices” on page 82.
Chapter 3. Hardware replacement procedures 105
