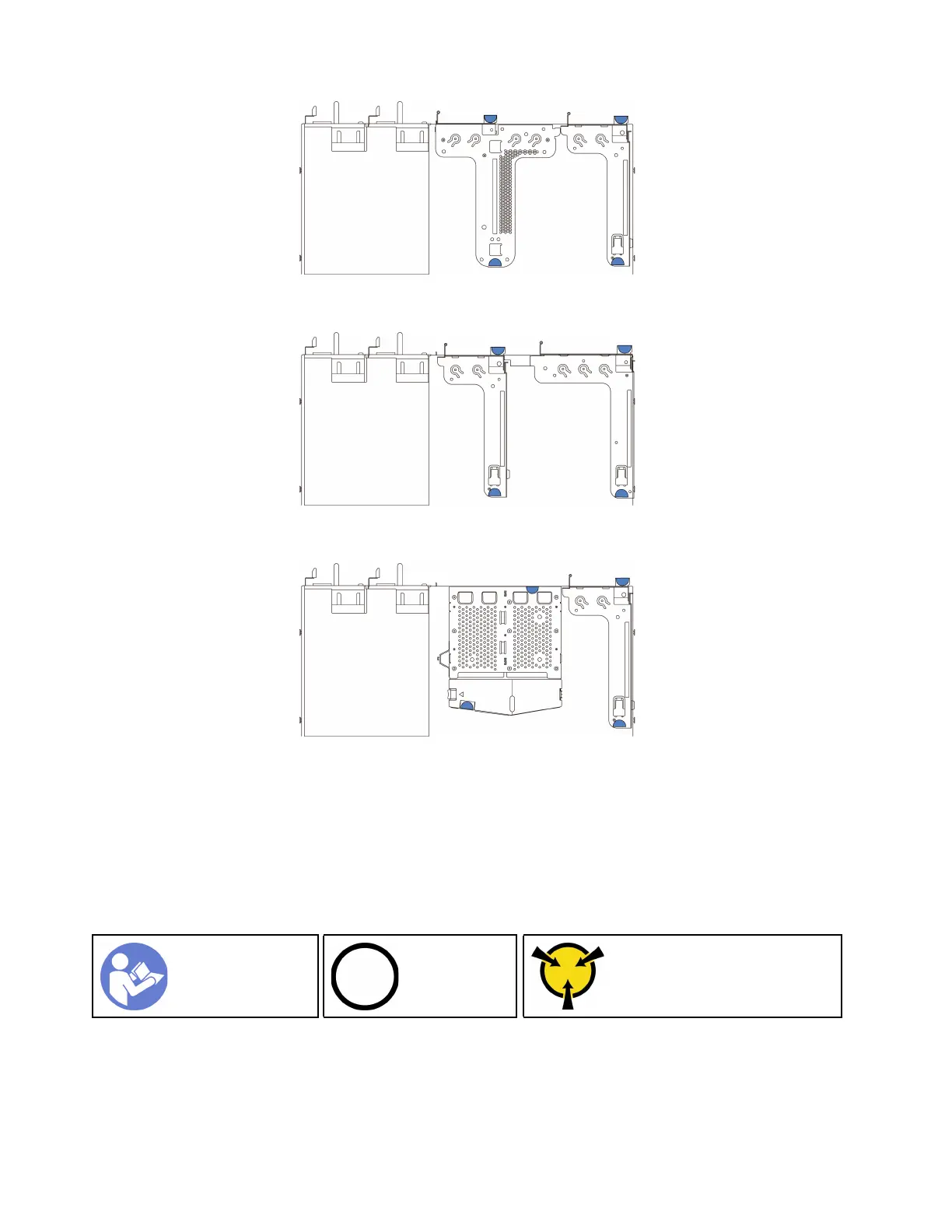

Figure 94. Configuration 1
Figure 95. Configuration 2
Figure 96. Configuration 3
There are three types of riser assembly configurations. The removing and installation procedure of the riser
card is similar for all types of riser assembly. The following procedures are based on the riser assembly in
configuration 1.
Remove a riser card
Use this information to remove a riser card.
“Read the
installation
Guidelines” on
page 79
“Power off
the server for
this task” on
page 11
“ATTENTION:
Static Sensitive Device
Ground package before opening”
on page 82
Before removing a riser card, remove the top cover. See “Remove the top cover” on page 89.
To remove a riser card, complete the following steps:
118
ThinkSystem SR635 Maintenance Manual
