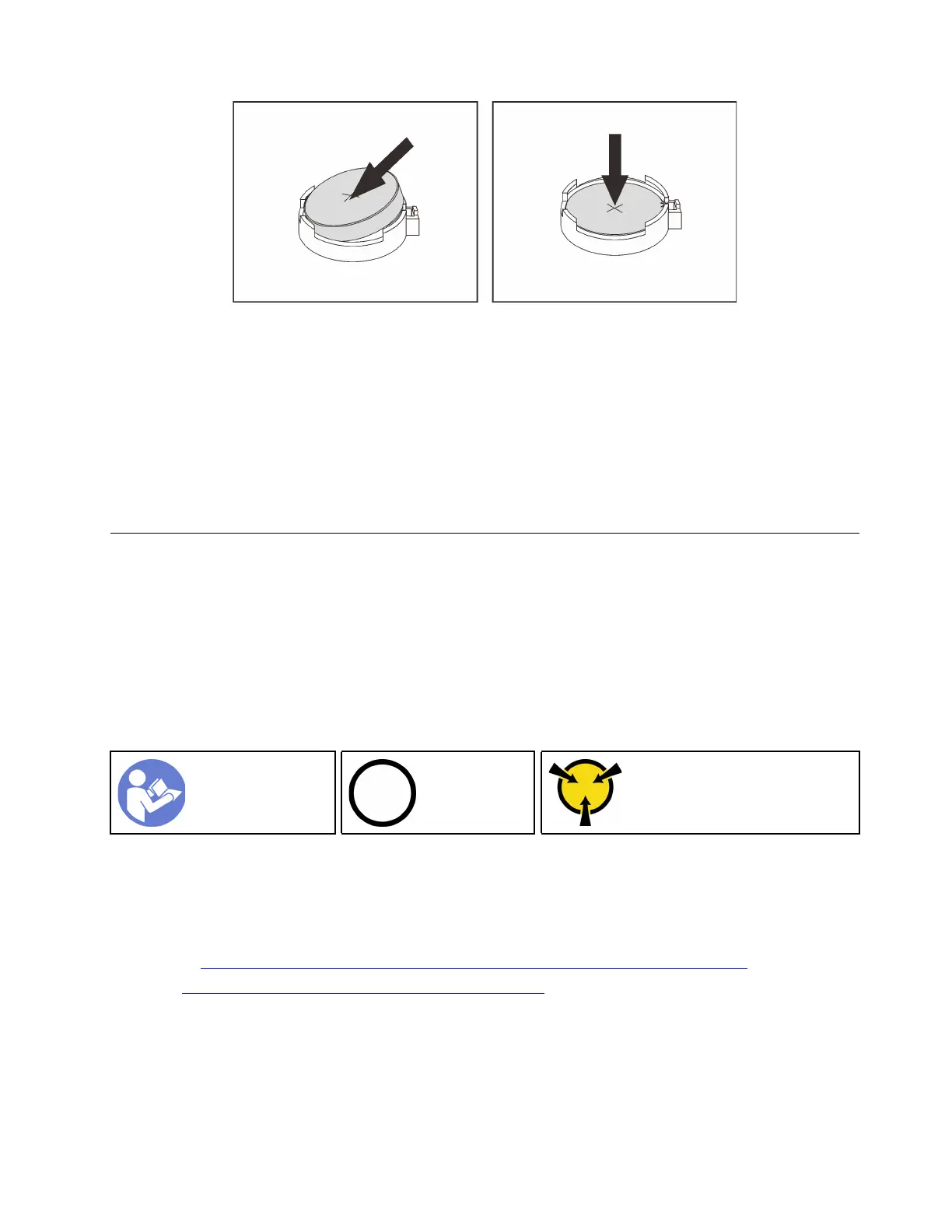

Figure 123. CMOS battery installation
Step 1. Touch the static-protective package that contains the new CMOS battery to any unpainted surface
on the outside of the server. Then, take the new CMOS battery out of the package.
Step 2. Install the new CMOS battery. Ensure that the CMOS battery is seated in place.
After installing the CMOS battery:
1. Complete the parts replacement. See “Complete the parts replacement” on page 203.
2. Use the Setup utility to set the date, time, and any passwords.
TPM adapter replacement
Use this information to remove and install the TPM adapter (sometimes called a daughter card).
For customers in Chinese Mainland, integrated TPM is not supported. However, customers in Chinese
Mainland can install a Trusted Cryptographic Module (TCM) adapter or a TPM adapter (sometimes called a
daughter card).
Remove the TPM adapter
Use this information to remove the TPM adapter.
“Read the
installation
Guidelines” on
page 79
“Power off
the server for
this task” on
page 11
“ATTENTION:
Static Sensitive Device
Ground package before opening”
on page 82
Before removing the TPM adapter, remove the top cover. See “Remove the top cover” on page 89.
To remove the TPM adapter, complete the following steps:
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DTDY1lmpIPpJVOzo7dKq14
• Youku: http://list.youku.com/albumlist/show/id_52222446.html
Step 1. Locate the TPM connector on the system board.
Chapter 3. Hardware replacement procedures 145
