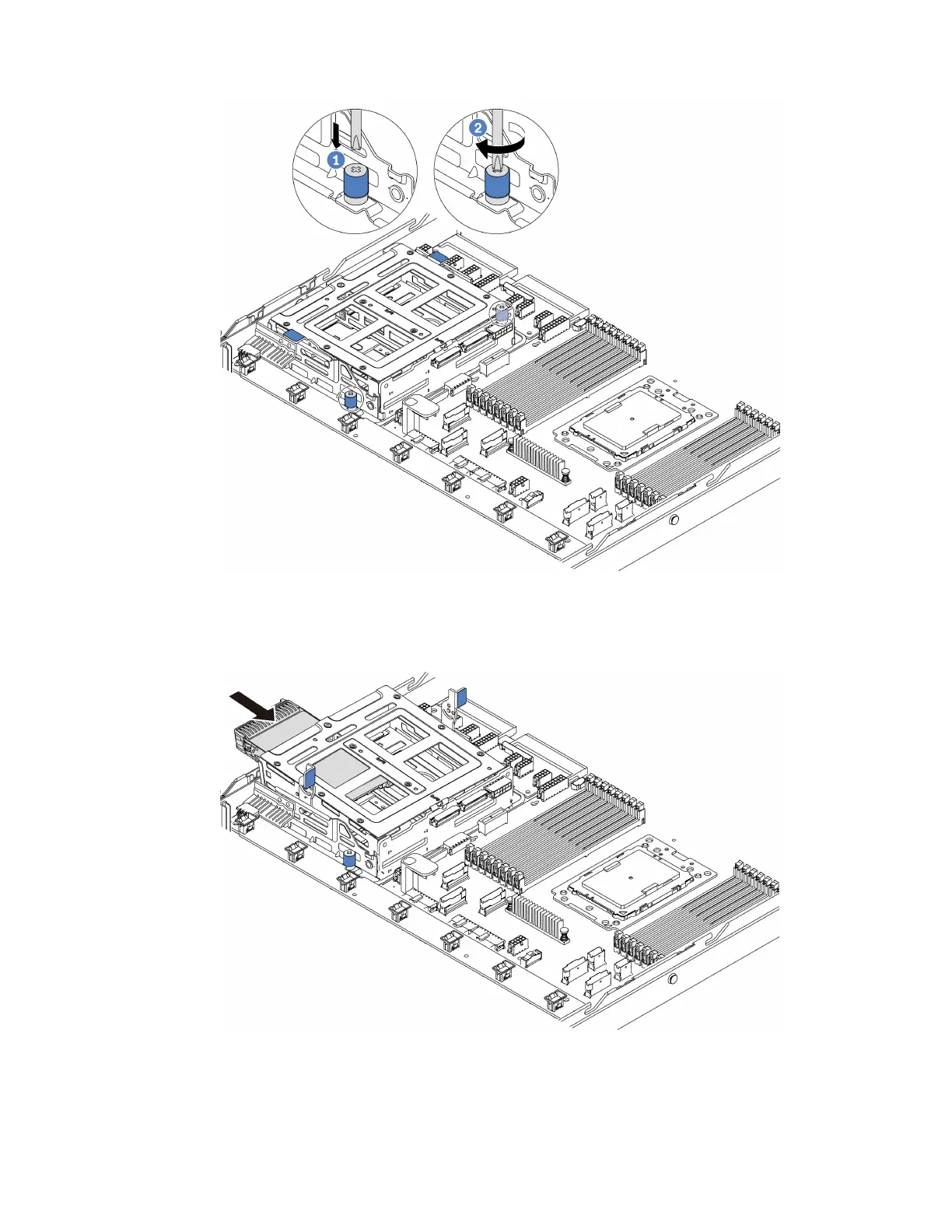

Figure 140. Middle drive cage installation-2
Step 4. Hold and lift the two blue handles. Install the hot-swap drives in the middle drive cage.
Figure 141. Internal hot-swap drive installation-1
Step 5. Press two blue handles and slide down the cage.
158 ThinkSystem SR635 Maintenance Manual
