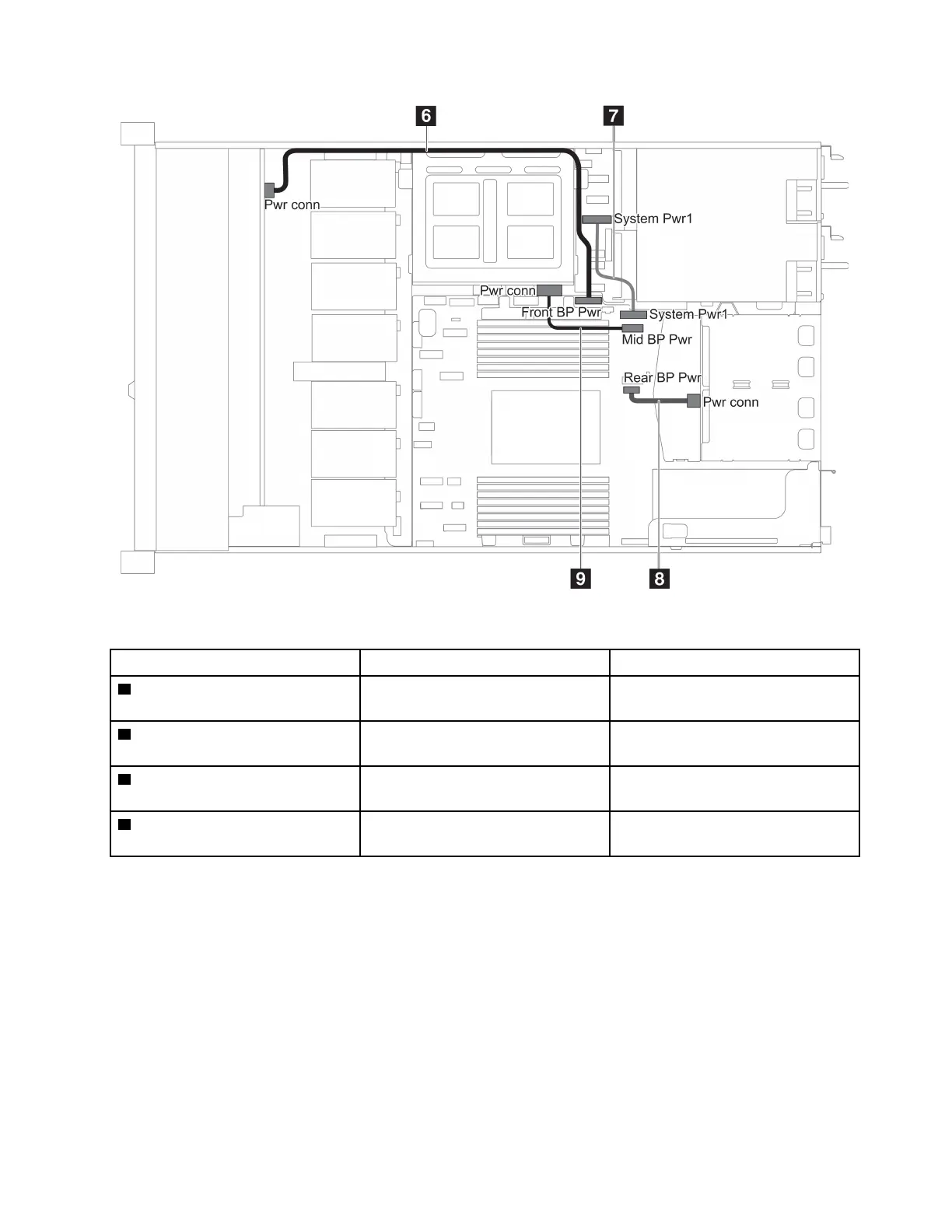

Figure 19. 2.5-inch chaiss-2
Cable
From To
5
Front backplane power connector on
the front backplane
Front backplane power connector on
the system board
6
System power connector 1 on the
PIB board
System power connector 1 on the
system board
7
Power connector on the rear
backplane
Rear backplane power connector on
the system board
8
Power connector on the middle
backplane
Middle backplane power connector
on the system board
Chapter 2. Server components 29
