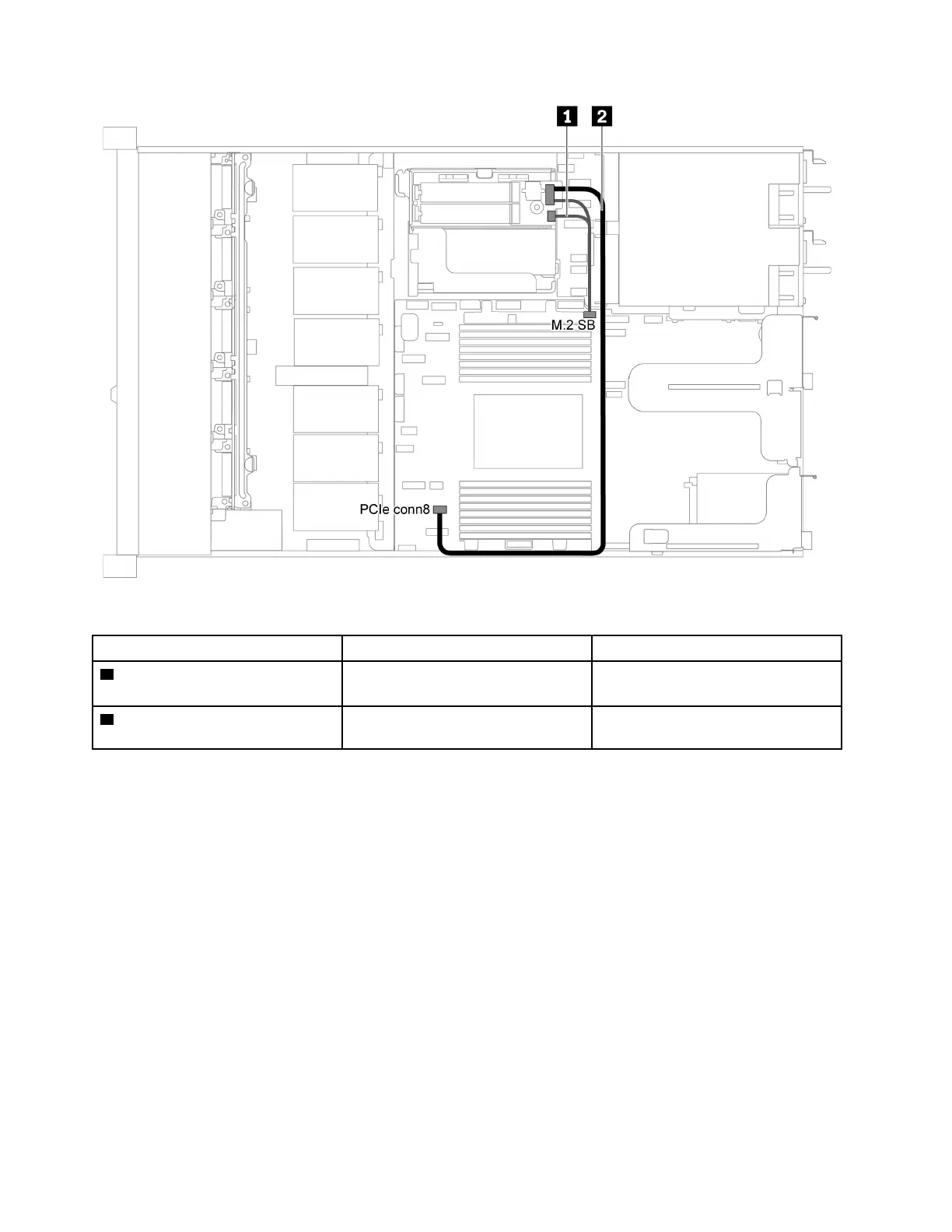

Figure 58. Cable routing for server model with M.2 module
Cable
From To
1
M.2 sideband connectors on the M.2
module
M.2 sideband connector on the
system board
2
Power connector on the M.2 module
PCIe connector 8 on the system
board
68 ThinkSystem SR635 Maintenance Manual
