Commissioning
Commissioning via the diagnosis terminal
Display elements and function keys
6
l
138
EDS84DG752 EN 7.0

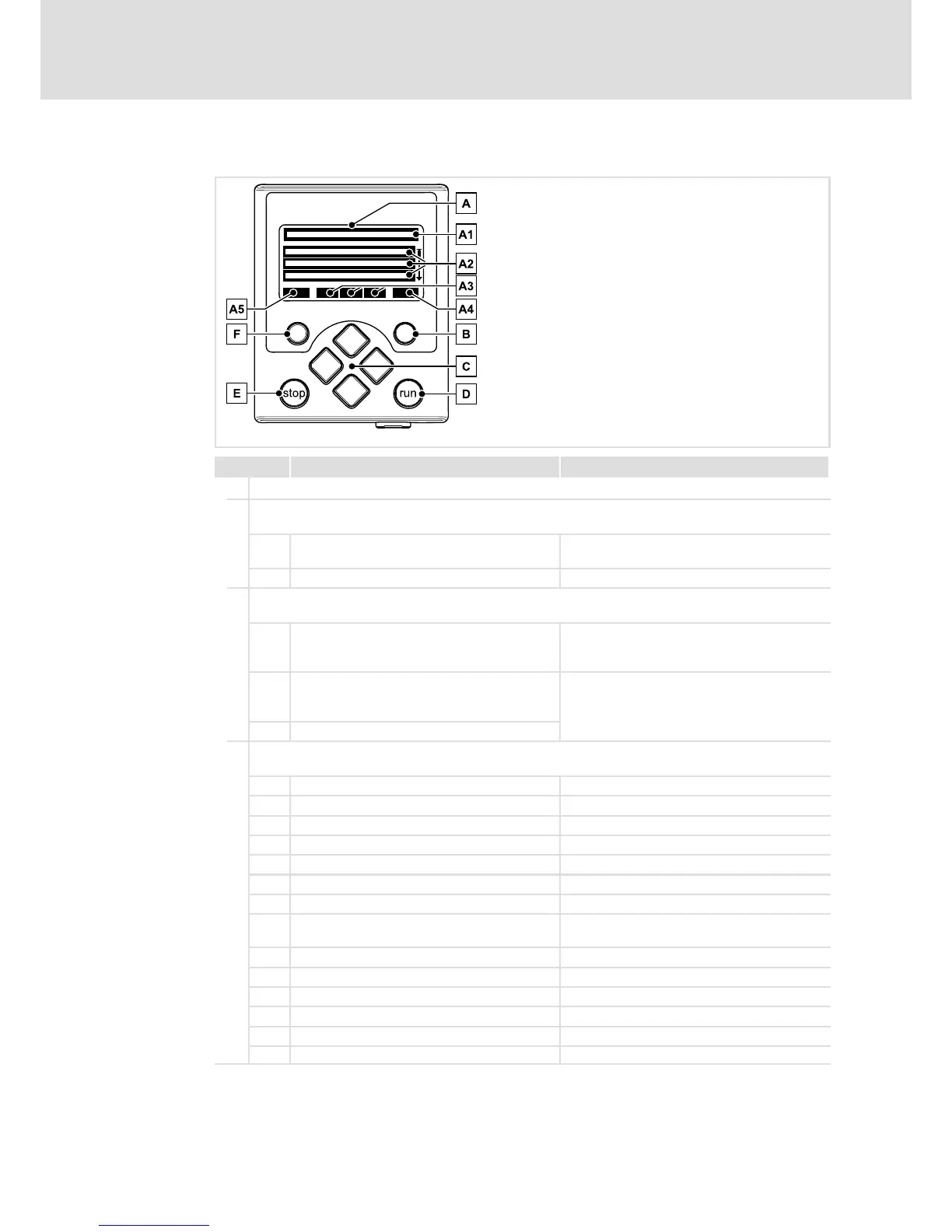

6.4.1 Display elements and function keys
E94AZKAE003
Display Meaning Comment
0 LCD display
A
1
Headline
<MM
M>
Meaning of the menu In the menu level only
<PPP> Meaning of the parameter In the parameter level only
A
2
Triple−spaced display
<M1>
<M2>
<...>
List of the menus available In the menu level only
<P1>
<P2>
<...>
List of the parameters available
In the parameter level only
<xxx> Setting of the selected parameter
A
3
Status of the basic device
The basic device is ready for operation.
The basic device is enabled.
Application in the basic device is stopped.
Quick stop active
The basic device is inhibited. The power outputs are inhibited.
The basic device is ready to start.
¥
Speed controller 1 in the limitation The drive is torque−controlled.
¦
Set current limit exceeded in motor or generator
mode
§
Pulse inhibit active The power outputs are inhibited.
System error active
Error active
Fault active
¡
Quick stop by trouble active
¢
Warning active
