8.6 Electrical installation

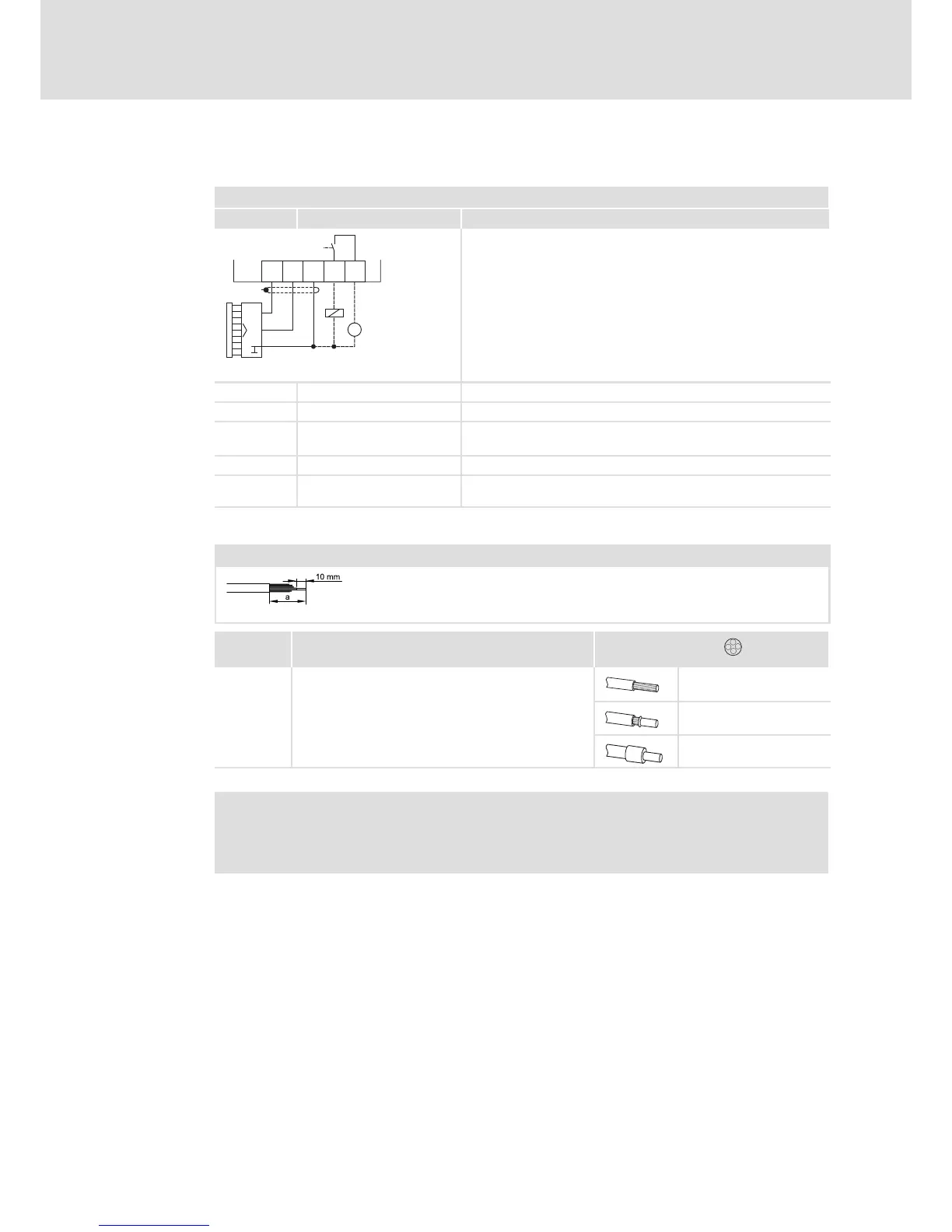

X61 − connection of safety system "Safety Option 10"
Pin Connection Description
DO
SIBGISIA
X61
24O
DC24 V
(+19.2 … +28.8V)
+
-
"
Terminal strip, 5−pole
E84DG027
SIA Safe input, channel A
SIB Safe input, channel B
GI
GND potential for SIA/SIB
GND potential for the unsafe signalling output
24O 24 V voltage supply for the unsafe signalling output
DO Unsafe signalling output: "SafeTorqueOff" with a 2−channel
request by SIA andSIB
X61
E84DG025
X61 a
[mm]
[mm
2
]
[AWG]
Safety
55
0.5 ... 1.5
20 ... 16
0.5 ... 1.0
20 ... 18
0.5
20
) Note!
The wiring connected for test purposes to the connections of the safety system
must be removed (e.g. bridges SIA/SIB at 24O).
