4.6.3 8400 motec Field Package

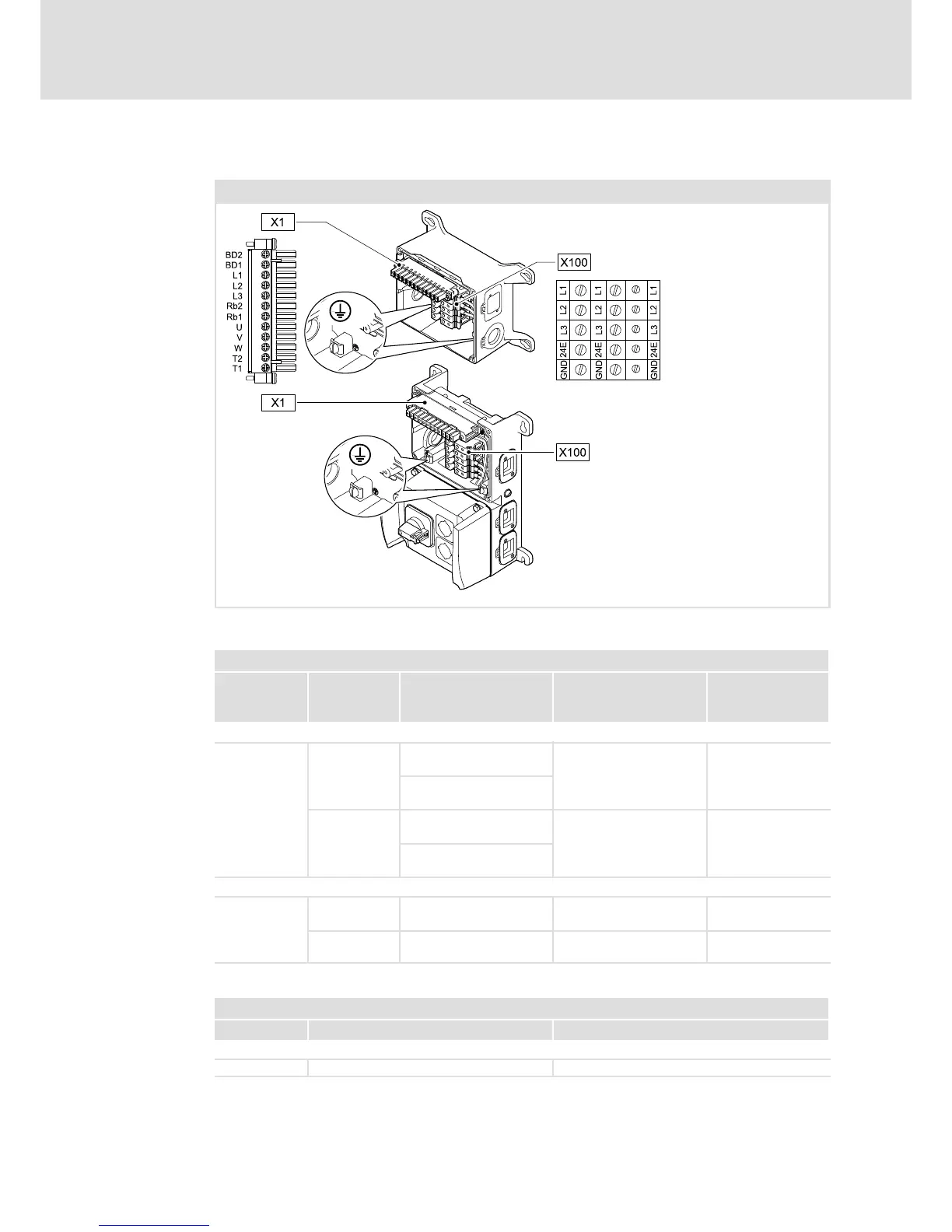

X1/X100 − Frame Unit
E84DG125
Mains
Terminal data
Name Power Conductor cross−section
[mm
2
]
[AWG]
Tightening torque
[Nm]
[lb−in]
!
X100
L1, L2, L3
0.37...1.5kW
1 ... 4
18 ... 10
0.5
4.4
3.5 x 0.6
2 x 0.5 ... 2 x 2.5
1)
18 ... 10
2.2...3.0kW
1 ... 6
18 ... 8
0.8
7.0
3.5 x 0.6
2 x 0.5 ... 2 x 2.5
1)
18 ... 8
+
PE
0.37...1.5kW
1 ... 4
18 ... 10
1.7
16
8 x 1.2
2.2...3.0kW
1 ... 6
18 ... 8
1.7
16
8 x 1.2
1)
For looping−through connections (daisy chain) => two conductors with TWIN wire end ferrule
Features
Name Description Rated value
X1
L1, L2, L3
Mains phases See rated data
