9.1.2 Wall adapter for 4...7.5kW

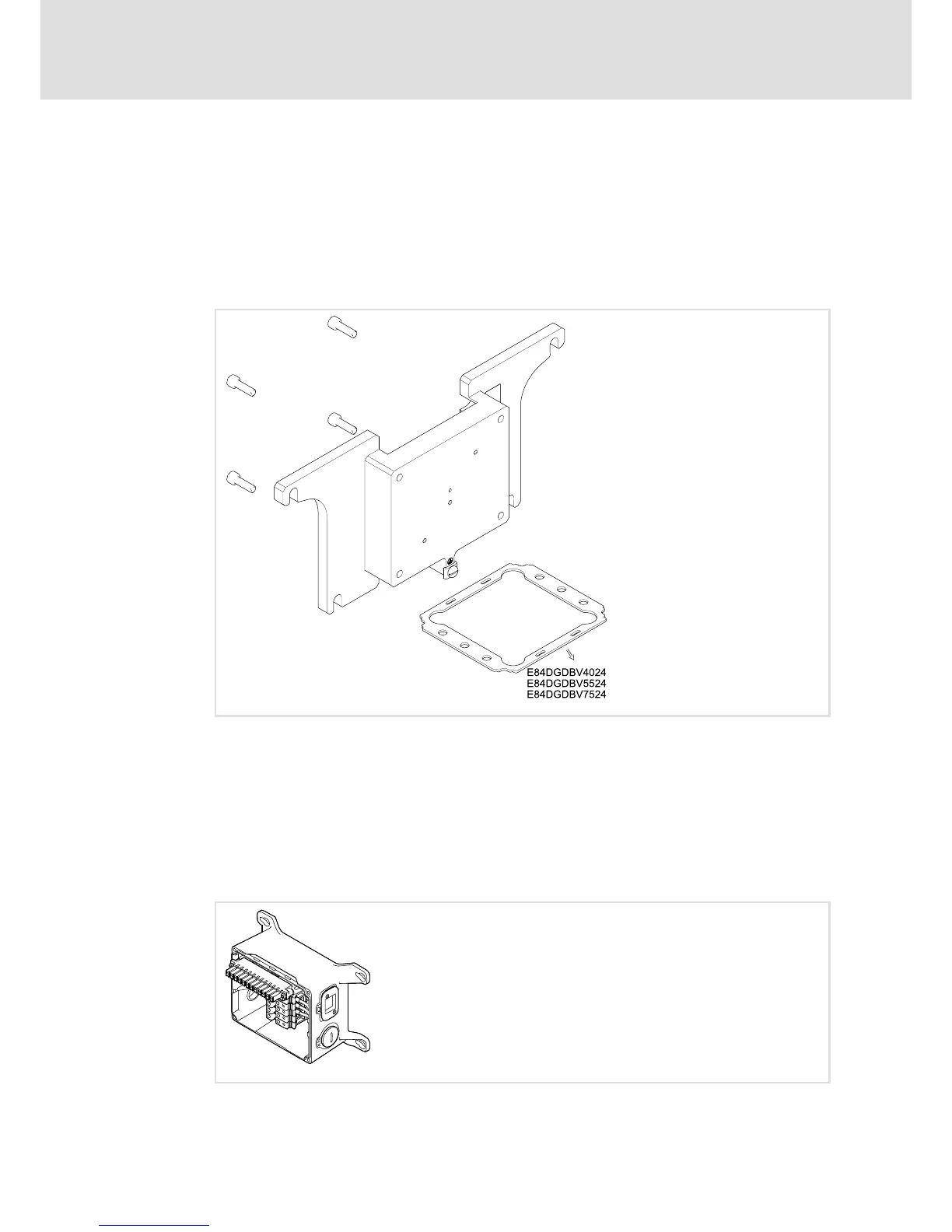

E84DZMAWE2
The wall adapter provides a good remedy, for instance if there is only little space available.
The following things are to be taken into consideration:
ƒ A suitable motor cable. Increases the installation effort. (¶ 161)
ƒ EMC−compliant installation (establishing the CE−typical drive system. (¶ 75))
E84DZMAWE2002
9.1.3 Frame Unit without switch
The Frame Unit without switch is a simple wiring box for wall mounting and a power class
up to 3.0kW. The Frame Unit without switch is available in 2 variants:
ƒ Design with cable gland
ƒ Design with plug, 1 × Quickon for mains connection and 1 × HAN Q8 for motor
connection
E84DG130
