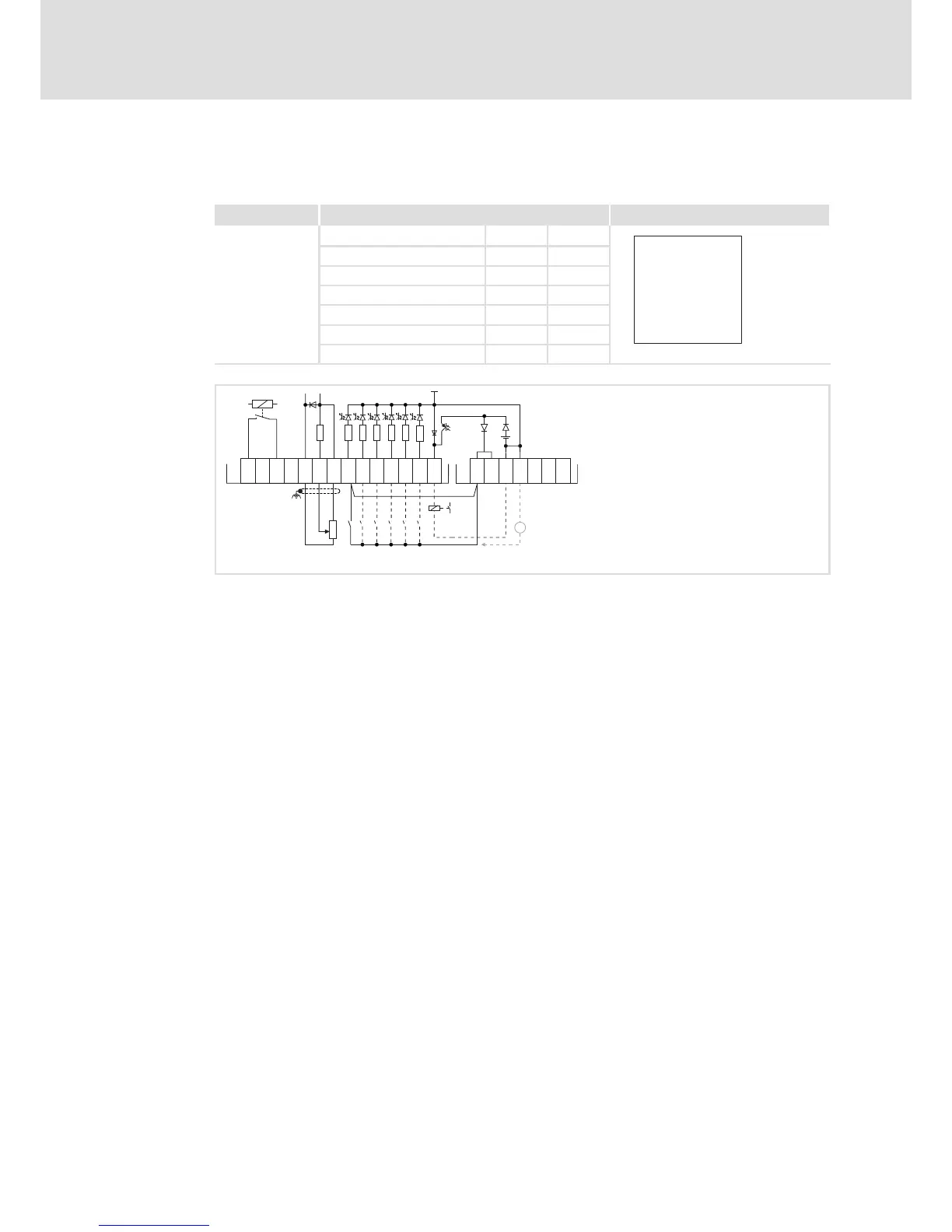

5.9.2 Standard I/O
Terminals
Mode Features Position of M12 plug
Standard I/O
E84DGFCSNNP
Controller enable RFR 1
A1
A2
A3
A4
B4
B3
B2
B1
Digital inputs DIx 5
Digital outputs DOx 1
Analog inputs AU/AI 1
Relay NO 1
STO safety function STO ˘
External 24 V supply 24E ˘
E84DG126a
S1
24 V
ext.
+
-
2k ... 10k
0 ... 10 V / 0/4 ... 20 mA
1)
2)
3.3k
3.3k
3.3k
3.3k
3.3k 3.3k
+10 V/
5 mA
DI1
DI2
DI3
DI4
DI5
DO1
RFR
X4
GND
AU/AI
AR
COM
NO
n. c.
n. c.
24 V int.
100 mA
24O
24O
GND
GND
X3
n. c.
n. c.
n. c.
E84DG015a
1)
External alternative voltage supply
2)
Wire jumper for permanent controller enable (delivery state)
