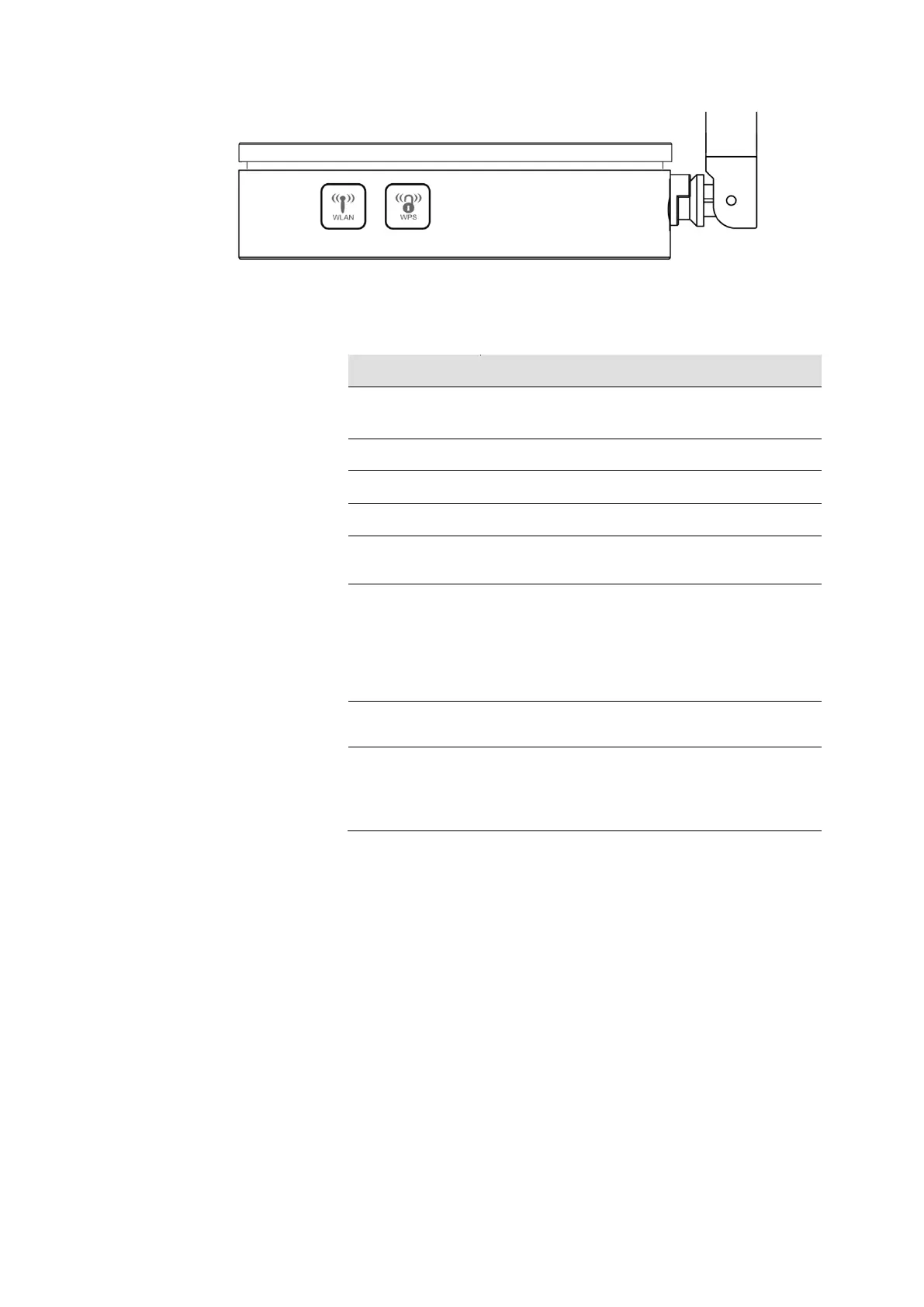

Figure 3: Right Panel Connections
Option 1: 4 fixed ANTENNA
Option 2: 4 detachable ANTENNA
Connects to the supplied power adaptor
Connects the device via LAN Ethernet to up to 4 PCs
Connects the device via WAN Ethernet to xDSL / Cable
Modem
Press this button for at least 3 full seconds and
the WPS LED will flash to start WPS.
Now go to the wireless adapter or device and
press its WPS button. Make sure to press the
button within 120 seconds (2 minutes) after
pressing the router's WPS button.
Press this button for at least 3 full second to
turn off/on wireless signals
Reset button. RESET the 802.11ac WLAN Router to its
default settings.
Press this button for at least 6 full seconds to RESET
device to its default settings.
