Push Button method
Wireless Gateway supports a virtual button “Start PBC” on the
Wi-Fi Protected Setup page for Push Button method. If users
push a virtual button “Start PBC”, AP will initiate a WPS session
and wait for any station to join. At this moment, AP will detect
whether there is more than one station that starts the PBC
method. When multiple PBC sessions occur, users should try
PIN method.
After users push AP’s virtual button “Start PBC”, they must go to
station side to push its button within two minutes. If the WPS is
successfully done, AP will give its wireless profile to that station.
The station could use this profile to associate with AP.
1. From the head menu, click on WAN2.

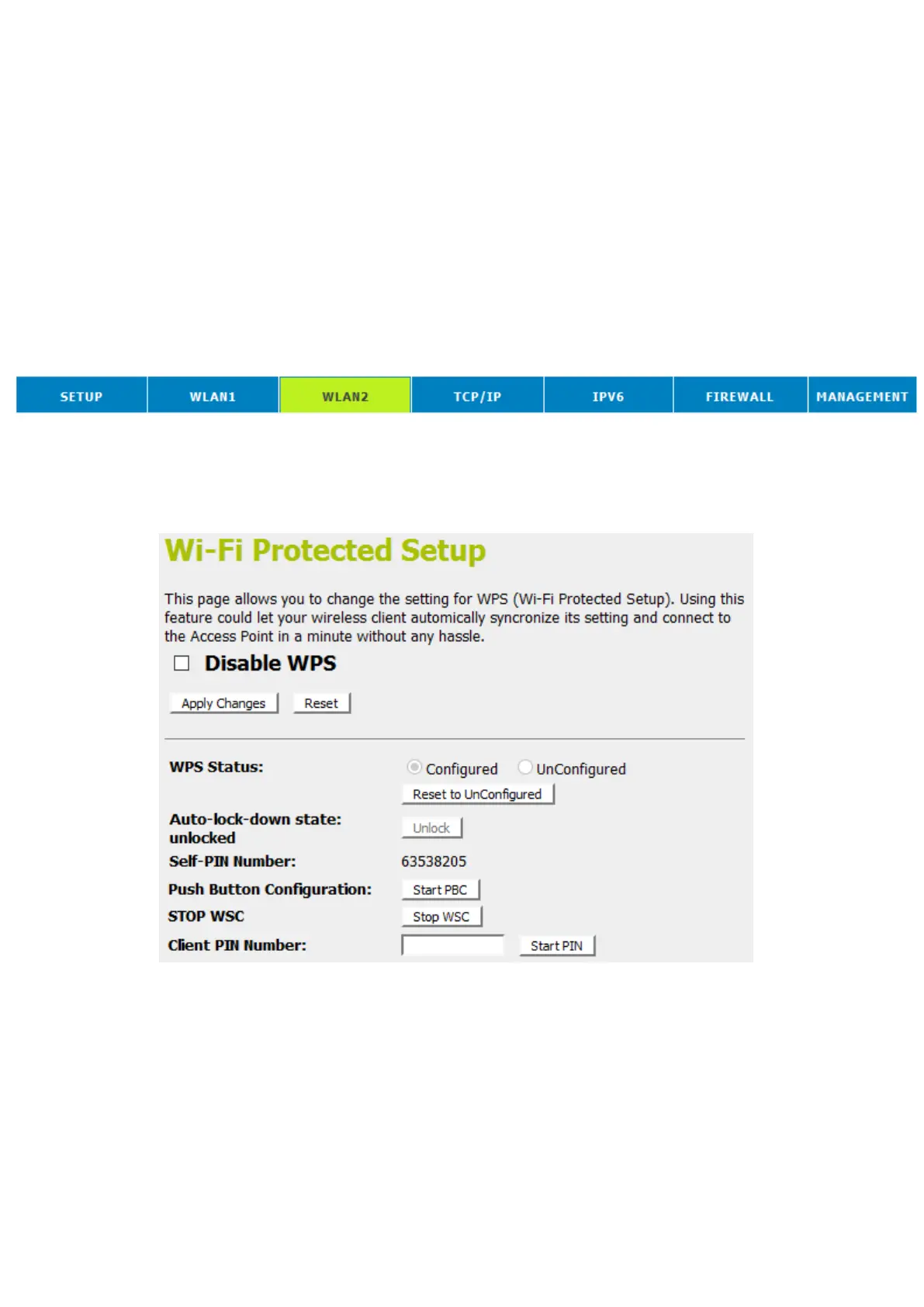

2. From the left-hand menu, click on WPS. The following page
is displayed:
3. Make sure AP is in un-configured state.
4. Click Start PBC.
