264

22 ROUTE SETUP

This page is used to setup dynamic routing protocol or edit

static route entry.

1. From the head menu, click on Firewall.

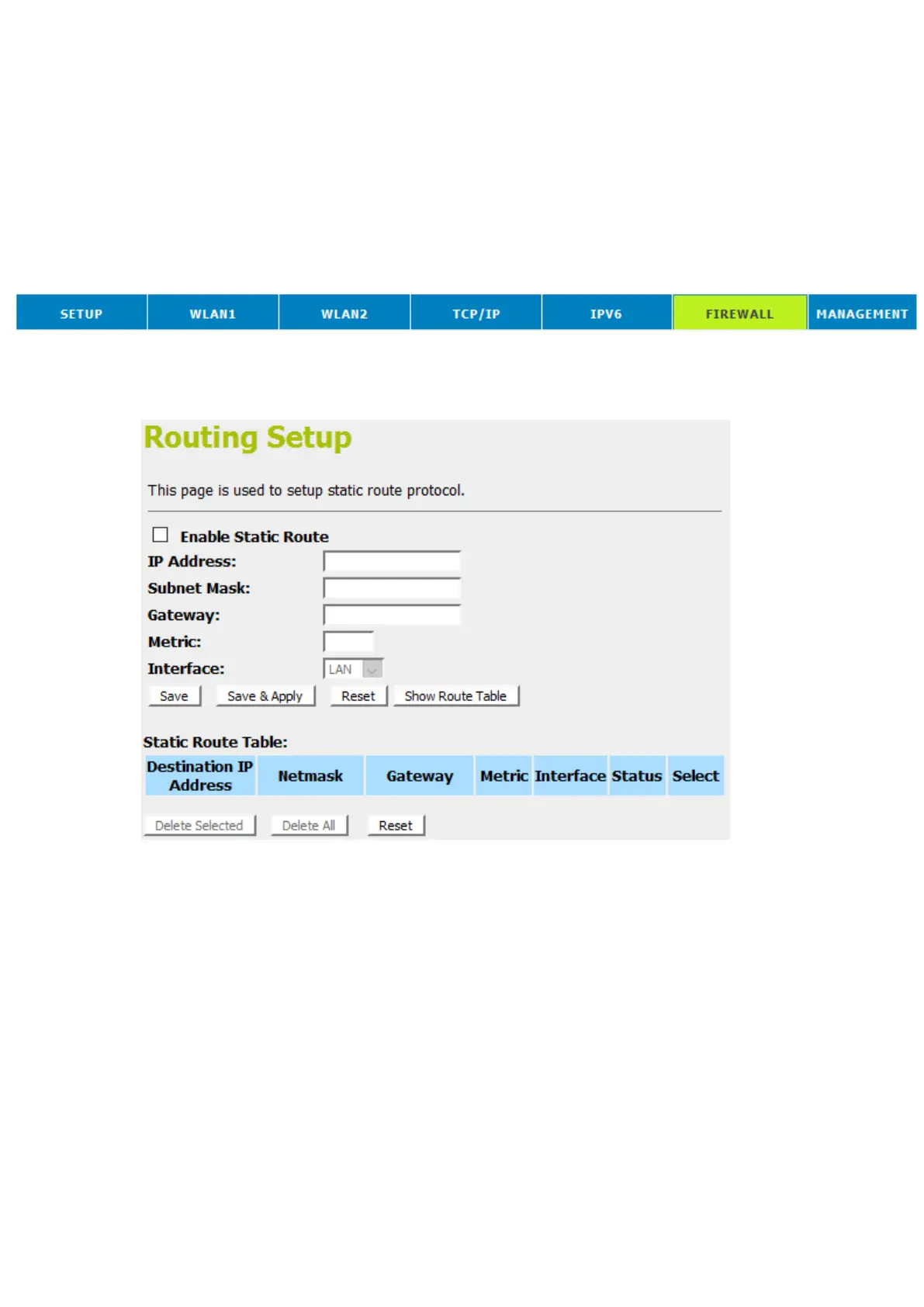

2. From the left-hand menu, click on ROUTE SETUP. The

following page is displayed:
